CABLINE®-CA IIP PLUS

CABLINE-CA_IIP_PLUS
64 Gbps/lane PAM4, 0.4 mm pitch, horizontal mating type Twinax & micro-coaxial cable assembly

  • Supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology

  • AWG#34 Twinax cable is used for long-distance transmission.
    Also supports AWG#36 & #38 micro-coaxial cable for routing flexibility

  • Low profile with a mated height of 1.14mm, ideal for space-constrained applications, fully-shielded with ZenShield® technology

단자Pitch:
0.400
Height:
1.30 Max (1.14 Nom.) ,
유효핀수:
60
세선동출케이블사이즈(AWG):
#36 #38
Twinax Cable (AWG):
#34
결합타입:
Horizontal

다운로드

  • 카탈로그

  • 2D Drawing (제품도면)

  • 제품 규격

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Symbols & Footprints

  • 테스트 레포트

  • SI 테스트 보드

  • 설명서

  • 포장 규격

  • 인증서

    • Supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology
    Offers High Signal Integrity by using a paddle card in the cable plug.
    Data rates and Cross Talk performance of existing CABLINE series products are optimized even further.
    CABLINE-CA_IIP_PLUS_FAB1-1.png CABLINE-CA_IIP_PLUS_FAB1-2.png CABLINE-CA_IIP_PLUS_FAB1-3.png
    Near End Cross Talk Far End Cross Talk

    Technical page of paddle card
    White papers : Paddle Card Technology for Micro Coax Cable Harness - Improving SI Performance

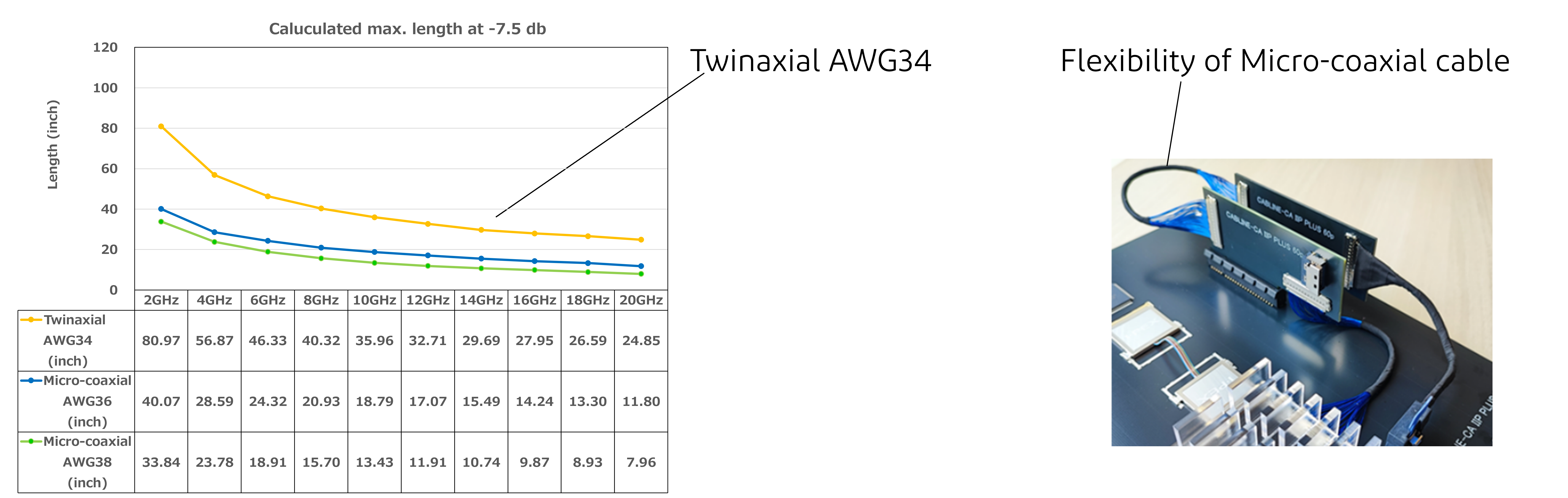

    AWG#34 Twinax cable is used for long-distance transmission.
    Also supports AWG#36 & #38 micro-coaxial cable for routing flexibility

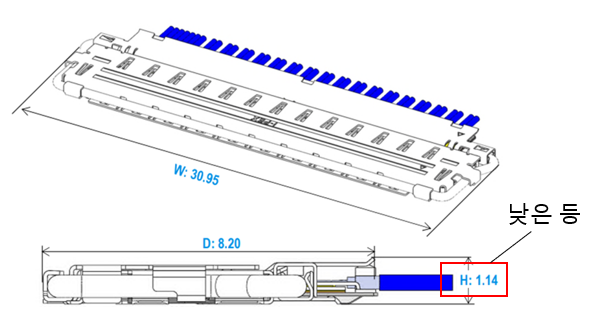

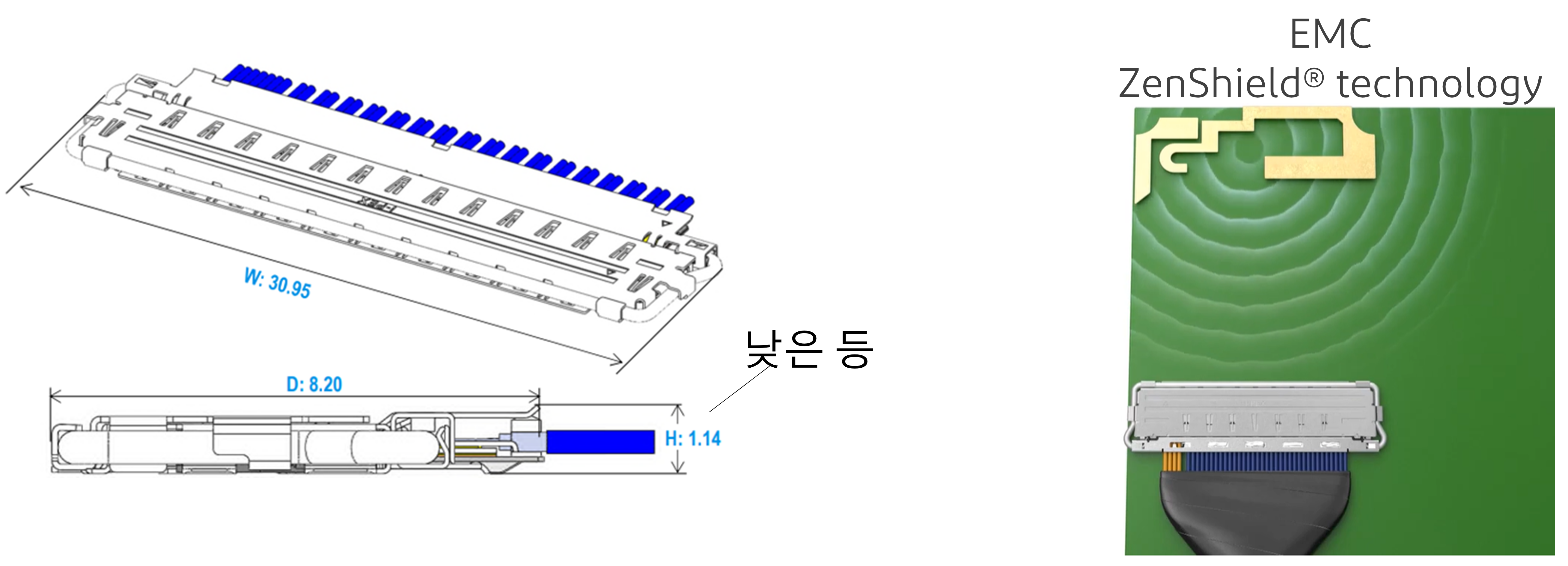

    Low profile with a mated height of 1.14mm, ideal for space-constrained applications, fully-shielded with ZenShield® technology
    CABLINE-CA_IIP_PLUS_FAB3-1.png CABLINE-CA_IIP_PLUS_FAB3-2.png
      EMC ZenShield® technology

    Contact pitch
    0.400 mm
    Height
    1.30 Max (1.14 Nom.) ,
    Width Formula
    30.95 mm
    Pin count
    60
    Current rating
    0.4A AC/DC ［Micro Coaxial: AWG#38］ 0.4A AC/DC ［Micro Coaxial: AWG#36］ 0.6A AC/DC ［TWINAX AWG#34］ 1.0A AC/DC ［Discrete: AWG#32］
    Applicable Standards (Reference Only)
    PCle Gen6 (Not a fully compatible product)
    Full shielding (ZenShield®)
    Yes
    About Contact Pitch 1.2mm (differential pair) *0.4mm (Signal Contacts)

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.

    CABLINE-CA IIP PLUS RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    RECEPTACLE 60 20790-060E-02

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Pinassignment Group Harness Length Part Number
    TWINAX CABLE, AWG#34 85 OHM A 200 mm 82065-600B-01
    TWINAX CABLE, AWG#34 85 OHM A 500 mm 82065-600B-02
    TWINAX CABLE, AWG#34 85 OHM B 200 mm 82065-600B-03
    TWINAX CABLE, AWG#34 85 OHM B 500 mm 82065-600B-04
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM A 200 mm 82065-400B-01
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM A 500 mm 82065-400B-02
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM B 200 mm 82065-400B-03
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM B 500 mm 82065-400B-04
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM A 200 mm 82065-100B-01
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM A 500 mm 82065-100B-02
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM B 200 mm 82065-100B-03
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM B 500 mm 82065-100B-04

    OTHER CABLINE-CA II PLUS PART NUMBERS

    SI Test Board with 2.92mm Adapter Part Number Harness Part Number
    SI Test Board for CABLINE-CA II PLUS 91623-060B-001 82065-*00B-01
    82065-*00B-02
    SI Test Board for CABLINE-CA II PLUS 91623-060B-002 82065-*00B-03
    82065-*00B-04
