I-PEX provides robust, secure, and reliable docking connectors.



I/O Connectors: MINIDOCK™ Series

The MINIDOCK™ series is a docking connector (Iinput/Ooutput connector) series for board-to-board connections. It maintains a robust and reliable connection and is installed in portable medical and industrial devices.
The main features of the MINIDOCK™ series are as follows:

• A multi-pin I/O connector featuring die-cast housing and large guide pins.
• Guaranteed up to 5,000 mating cycles.
• Options for vertical and horizontal mating, pin counts ranging from 80 to 240, and a three-stage arrangement of signals, power, and ground.
•

Plug(above) and Receptacle(below) Mating Combinations

	SLIM TYPE			STANDARD TYPE
Type of plug	Right angle			Right angle
Contact type	2 Sequences			Standard (All long pins)	All long pins Offset type

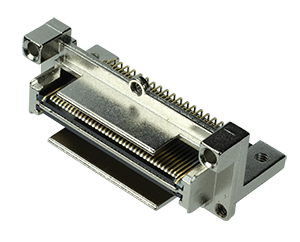

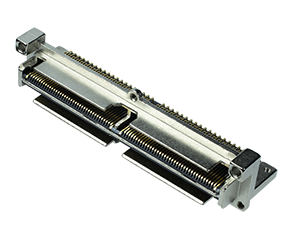

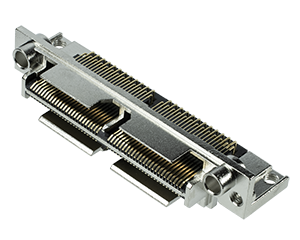

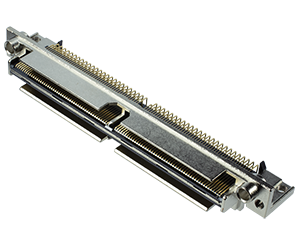

Part number	30029	30046		30001	30094
Pin contact	80	160		100, 240	200
Dimensions (WxD) mm	36.00 x 14.50	62.00 x 9.90		100 pin: 51.65 x 16.90 240 pin: 96.10 x 16.90	83.40 x 9.90
PLUG
RECEPTACLE
Type of rece.	Right angle		Vertical	Right angle	Vertical

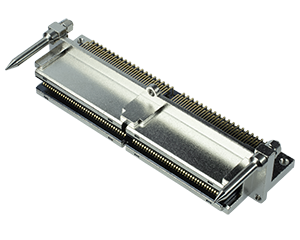

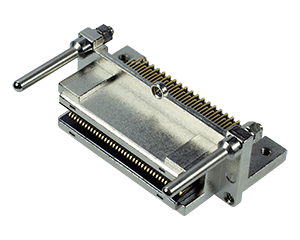

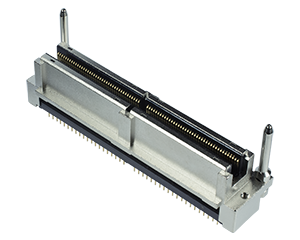

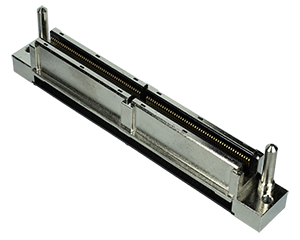

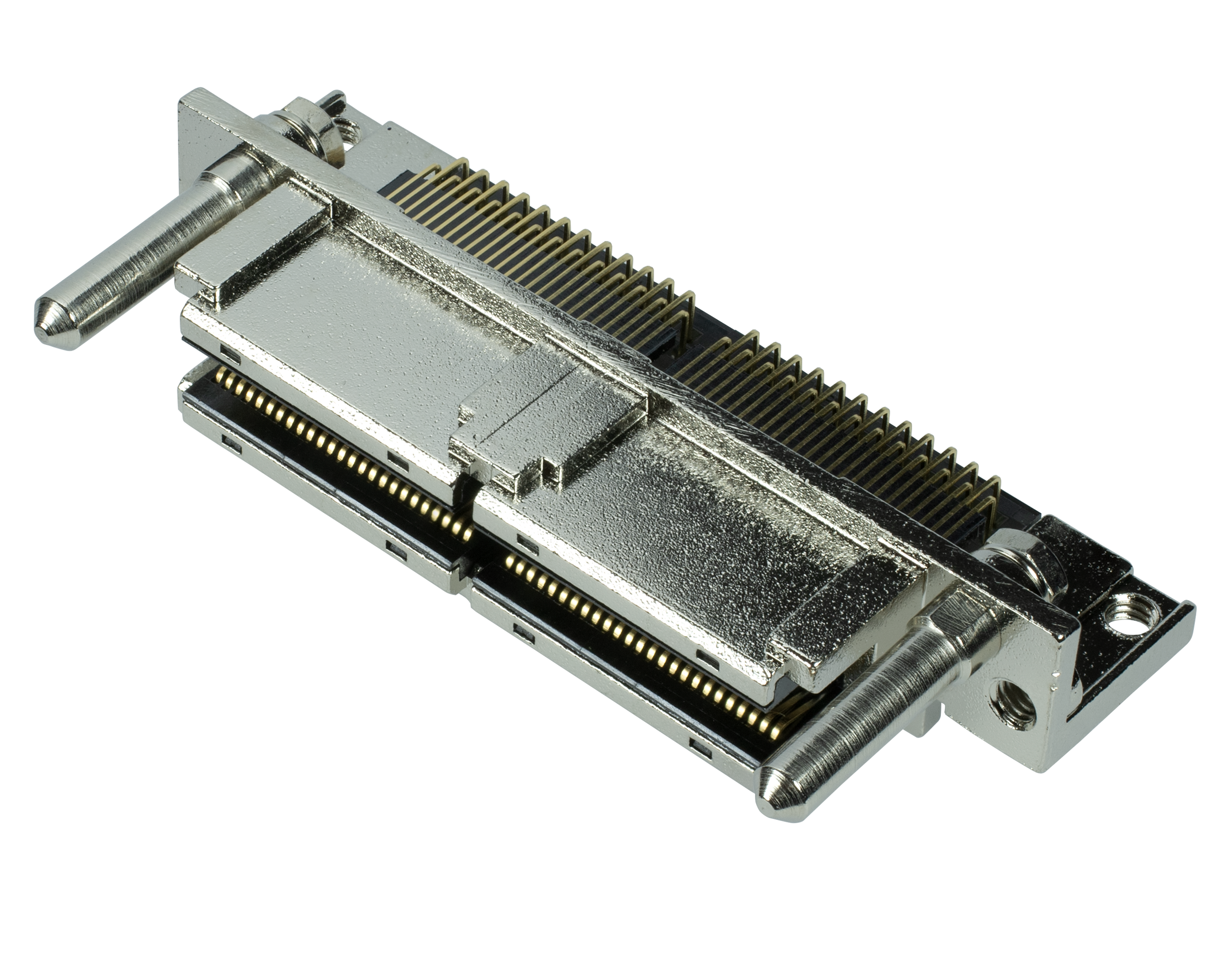

Part number	30030	30047	30056	30002	30007
Pin count	80	160	160	100, 240	200
Dimensions (WxD) mm	36.00 x 14.50	62.00 x 9.70	62.00 x 16.03	100 pin: 51.65 x 20.30 240 pin: 96.10 x 20.30	83.40 x 15.16





Features of the I-PEX MINIDOCK™

1. A multi-pin I/O connector featuring die-cast housing and large guide pins

The robust die-cast shell structure protects the connector. Additionally, the guide pins ensure secure mating and unmating.



2. Guaranteed up to 5,000 mating cycles

The low insertion force contacts guarantee 5,000 mating cycles.

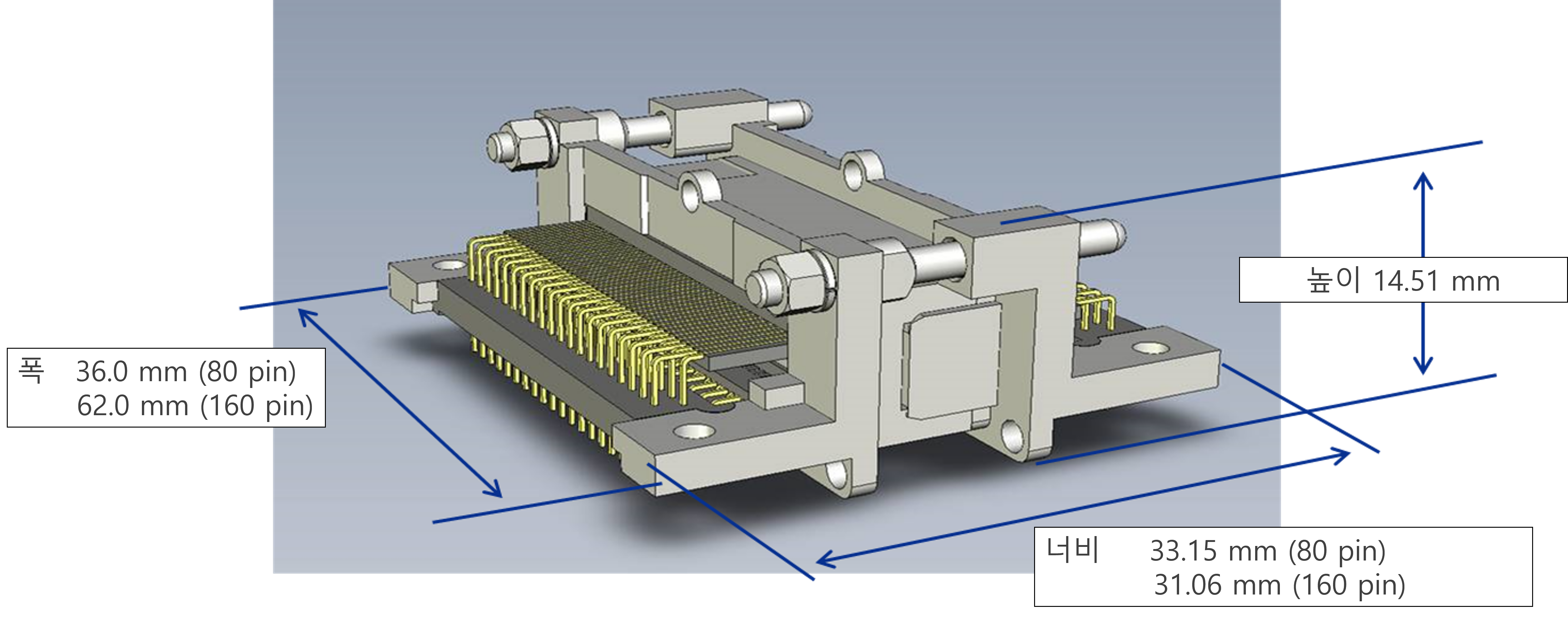

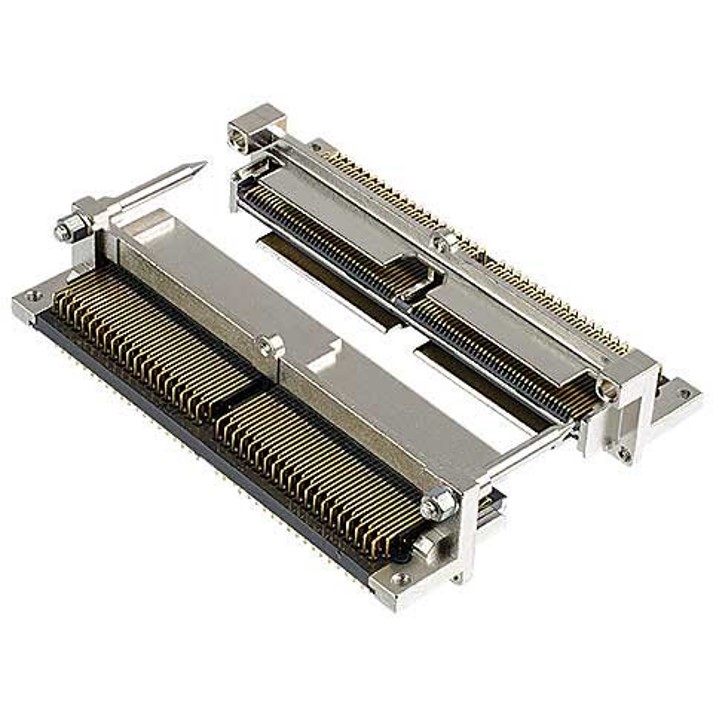

3-1. Slim Type Horizontal Plug–Horizontal Receptacle Mating (80P, 160P)

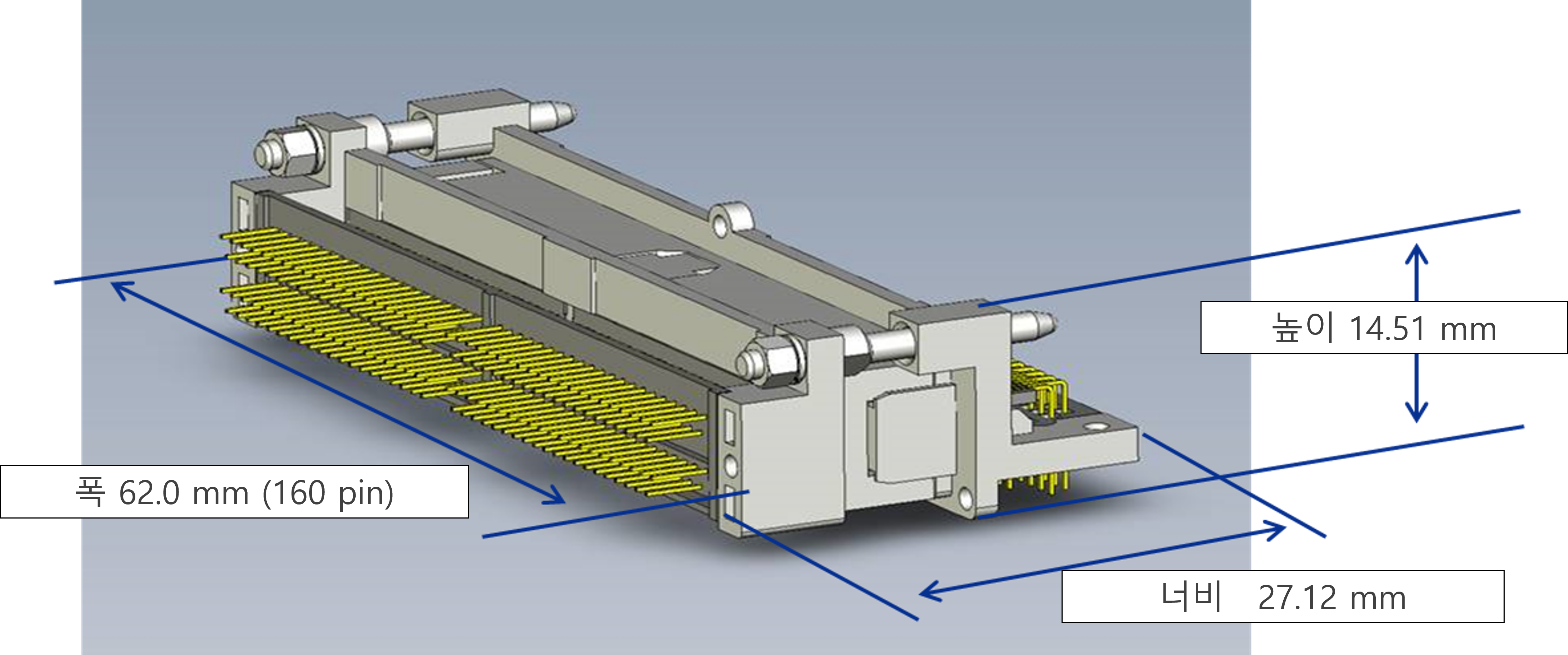

3-2. Slim Type Horizontal Plug-Vertical Receptacle Mating (160P)

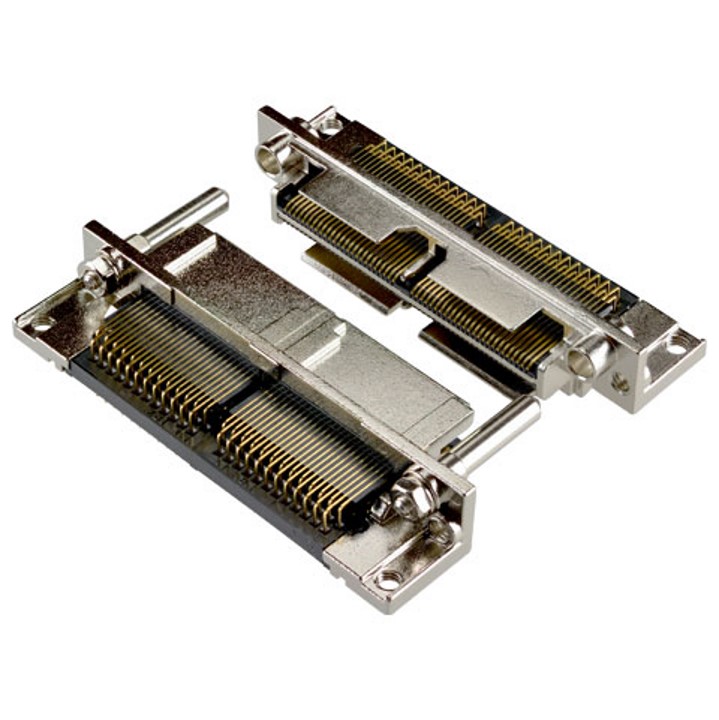

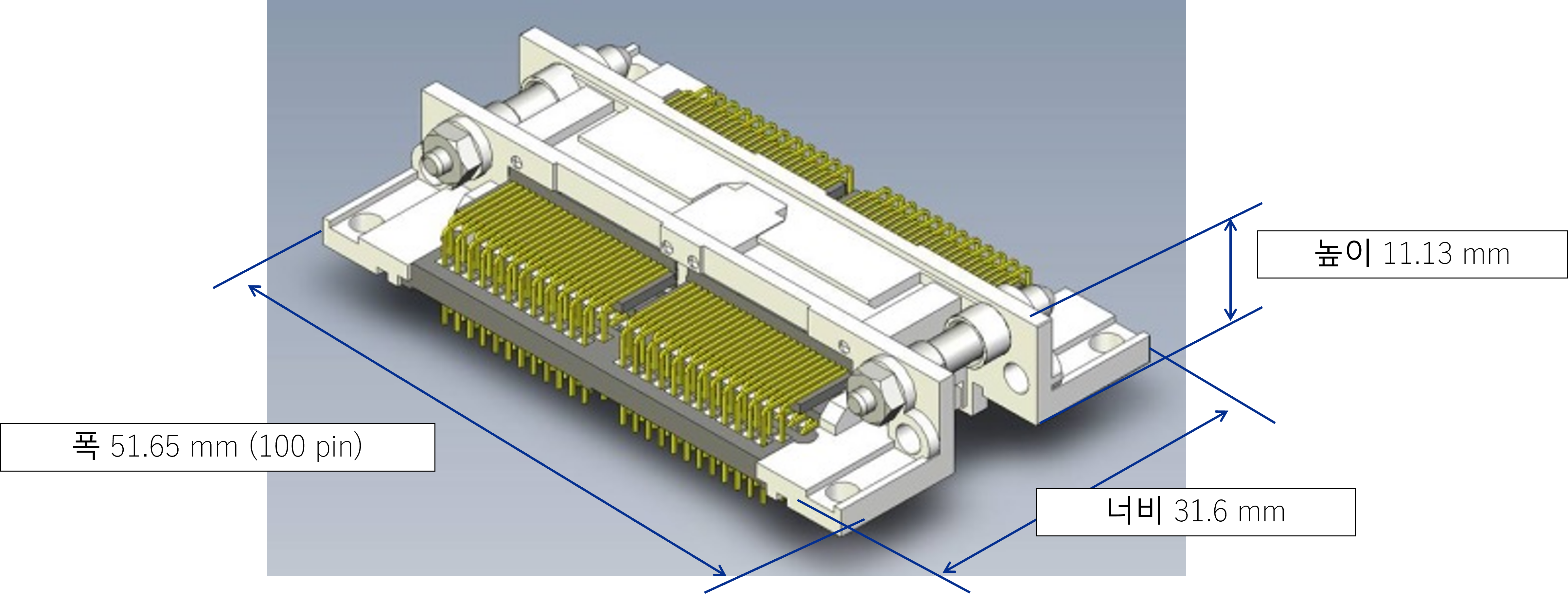

3-3. Standard Type Horizontal Plug-Horizontal Receptacle Mating (100P, 240P)

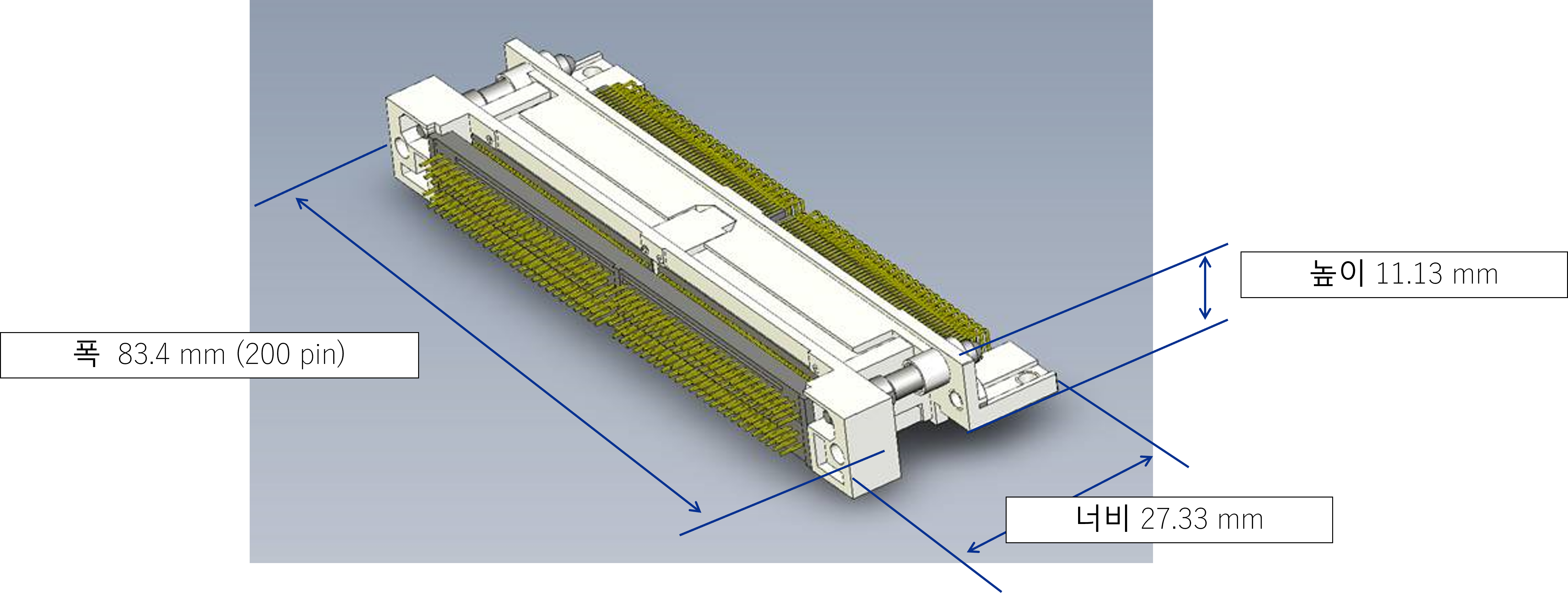

3-4. Standard Type Horizontal Plug-Vertical Receptacle Mating (200P)





We offer a wide range of mating types and pin counts, including sequential contact types  for ground pins, signal pins, and power pins during mating and unmating.
We provide robust, secure, and reliable docking solutions for portable industrial devices, such as ultrasonic diagnostic equipment, medical devices, cable harness certification systems, and phased array flaw detectors.

For inquiries or questions regarding the MINIDOCK™ series, please contact us here.
