CABLINE®-CAP

고속전송대응 (64Gbps/lane PAM4)、 0.4mm Pitch、수평결합 타입 세선동축 Cable Assembly

  • 패들카드 기술을 구사하는 고속전송 64Gbps/lane PAM4

  • 낮은 높이에서 공간 제약이 있는 Application에 최적인 높이 H=1.15mm

  • 세선 동축케이블을 사용한 LEAPWIRE® Jumper Solution

CABLINE®-CAP

CABLINE-CAP

CABLINECAP

CAP
단자Pitch:
0.400
Height:
1.35 Max (1.15 Nom.)
유효핀수:
50
세선동출케이블사이즈(AWG):
#38 45 ohm
결합타입:
Horizontal

다운로드

패들카드 기술을 구사하는 고속전송 64Gbps/lane PAM4

Signal quality is improved by adopting a paddle card in the cable plug section.
This enables even faster transmission from the existing CABLINE series.



CABLINE-CAP_FAB1-1_all CABLINE-CAP_FAB1-2_all CABLINE-CAP_FAB1-3_all
Near End Cross Talk
            Far End Cross Talk

Technical page of paddle card: https://www.i-pex.com/library/white-papers/paddle-card-technology



낮은 높이에서 공간 제약이 있는 Application에 최적인 높이 H=1.15mm
CABLINE-CAP_FAB2-1_all
CABLINE-CAP_FAB2-2_all
Plug: CABLINE®-CAP harness
CABLINE-CAP_FAB2-3_all
Receptacle: CABLINE®-CA receptacle
(PN 20525-#50E-02)
Mating Condition
Un-Mating condition



세선 동축케이블을 사용한 LEAPWIRE® Jumper Solution

Cable Jumper Harnesses are more advantageous than PCB in terms of transmission.

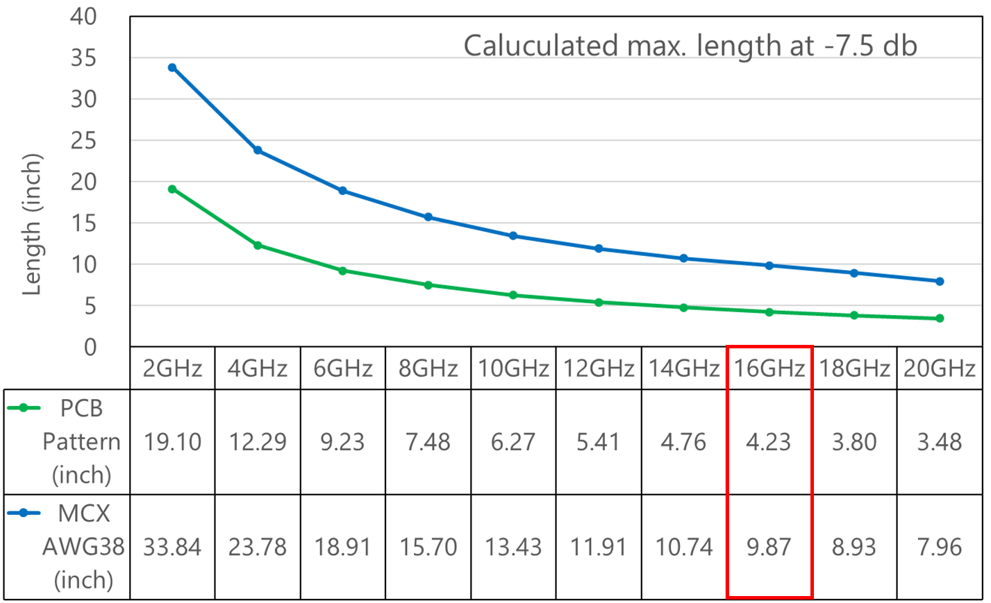

Transmission distance comparison of Low-Loss PCB (Dk3.7) vs CABLINE-CAP® harness (Micro-coaxial cable)
Micro-coaxial Cable can transmit approximately 2.3 times farther in the 16 GHz band than Low-Loss PCB (Dk3.7)

CABLINE-CAP_FAB3_all





CABLINE®-CAP

CABLINE-CAP

CABLINECAP

CAP

Contact pitch
0.400 mm
Height
1.35 Max (1.15 Nom.)
Depth
6.86 mm
Width Formula
25.75 mm
Pin count
50
Current rating
0.4 A/Signal pin
Full shielding (ZenShield®)
No

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.



CABLINE-CAP RECOMMENDED PART NUMBERS

Part Number Description Part Number
CABLINE-CAP harness 50p micro-coaxial 38AWG L=250mm 81863-100B-01
CABLINE-CAP harness 50p micro-coaxial 38AWG L=500mm 81863-100B-02
CABLINE-CA receptacle 50p 20525-050E-02
SI Test Board with 2.92mm Adapter Part Number
SI Test Board for SI Test Board for CABLINE-CAP 50pin 91566-050B-001
