MHF® 4L

M.2 行业标准，具有卓越的电气性能，支持最高可达 12 GHz，射频连接器最大嵌合高度为 1.2 mm、1.4 mm 和 1.7 mm

    穿过12 GHz 的高性能小型连接器

    使用“i-Fit®” 技术的无需焊接极细同轴线连接

    我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择

*MHF® 4L 可与 MHF® 4 互配。
*关于机械锁的额外嵌合保持力，请查看MHF® 4L LK插头电缆组件。
*操作方法请参考"如何嵌合和拔出"视频。
Mated Height:
1.7 mm max.1.4 mm max.1.2 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 30 O.D. 1.37 mmAWG 32 O.D. 1.13 mmAWG 33 O.D. 0.95 mmAWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mm

下载

穿过12 GHz 的高性能小型连接器

MHF 4L_VSWR MHF 4L_Insertion Loss



使用“i-Fit®” 技术的无需焊接极细同轴线连接

使用 “i-Fit®” 技术的无需焊接极细同轴线连接

我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择




 MHF_4L_Fab_3
Product name
MHF® 4L LK
MHF® 4L
MHF® 4L
MHF® 4L
Lock
With Lock
Without Lock
Without Lock
Without Lock
Mating Height
2.0 mm max.
1.7 mm max.
1.4 mm max.
1.2 mm max.
Coaxial O.D.
(Center Conductor AWG)
1.37 mm
(AWG 30)
●
●


1.13 mm
(AWG 32)


●

0.95 mm
(AWG 33)


●

0.81 mm
(AWG 36)



●
0.64 mm
(AWG 36)



●
Receptacle
MHF® 4 receptacle (20449-001E-03), MHF® 4L receptacle (20579-001E)




Product Type
Coaxial RF Connector
Mated Height
1.7 mm max.1.4 mm max.1.2 mm max.
SMT Size
2.0 x 2.0 mm
Frequency Range Up to 12 GHz (Up to 12 GHz for MHF®4L receptacle, Up to 9 GHz for MHF®4 receptacle)
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 30 O.D. 1.37 mmAWG 32 O.D. 1.13 mmAWG 33 O.D. 0.95 mmAWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.40 max.(O.D. 1.37mm), 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)6 to 9 GHz: 1.5 max.(O.D. 1.37mm), 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)9 to 12 GHz: 1.6 max.(O.D. 1.37mm), 1.9 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
No
VSWR (Harness only) DC ~ 3 GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)
3 ~ 6 GHz : 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
3 ~ 6 GHz : 1.4 max. (O.D. 1.37 mm)
6 ~ 9 GHz : 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
6 ~ 9 GHz : 1.5 max. (O.D. 1.37 mm)
9 ~ 12 GHz : 1.9 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
9 ~ 12 GHz : 1.6 max. (O.D. 1.37 mm)

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



MHF 4L RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4L plug OD=0.81/0.64mm 20572-001R-08 20.2
MHF 4L plug OD=1.13/0.95mm 20565-001R-13 20.2
MHF 4L plug OD=1.37mm 20632-001R-37 33.2
MHF 4L receptacle 20579-001E 8.48



MHF 4L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 4L Harness
Part Number Description Part Number Weight (mg)
MHF 4L-4L harness OD=0.64mm L=50mm 8-25-0437 130
MHF 4L-4L harness OD=0.64mm L=100mm 8-25-0438 190
MHF 4L-4L harness OD=0.64mm L=200mm 8-25-0439 310
MHF 4L-4L harness OD=0.81mm L=50mm 8-25-0466 190
MHF 4L-4L harness OD=0.81mm L=100mm 8-25-0467 310
MHF 4L-4L harness OD=0.81mm L=200mm 8-21-0042 500
MHF 4L-4L harness OD=0.81mm L=300mm 8-25-0926 377.8
MHF 4L-4L harness OD=0.81mm L=400mm 8-25-0927 492.8
MHF 4L-4L harness OD=0.81mm L=500mm 8-25-0928 835
MHF 4L-4L harness OD=0.95mm L=100mm 8-25-0953 282
MHF 4L-4L harness OD=0.95mm L=200mm 8-25-0954 524
MHF 4L-4L harness OD=0.95mm L=300mm 8-25-0955 757
MHF 4L-4L harness OD=0.95mm L=400mm 8-25-0956 996
MHF 4L-4L harness OD=0.95mm L=500mm 8-25-0957 1250
MHF 4L-4L harness OD=1.13mm L=50mm 8-23-0115 560
MHF 4L-4L harness OD=1.13mm L=100mm 8-23-0112 570
MHF 4L-4L harness OD=1.13mm L=200mm 8-21-0043 790
MHF 4L-4L harness OD=1.13mm L=300mm 8-26-0047 943
MHF 4L-4L harness OD=1.13mm L=400mm 8-26-0048 1244
MHF 4L-4L harness OD=1.13mm L=500mm 8-24-0128 690
MHF 4L-4L harness OD=1.37mm L=50mm 8-23-0116 570
MHF 4L-4L harness OD=1.37mm L=100mm 8-23-0113 660
MHF 4L-4L harness OD=1.37mm L=200mm 8-23-0114 630
MHF 4L-4L harness OD=1.37mm L=300mm 8-26-0049 1354.8
MHF 4L-4L harness OD=1.37mm L=400mm 8-26-0050 1784.8
MHF 4L-4L harness OD=1.37mm L=500mm 8-24-0129 680



MHF 4L SAMPLE HARNESS FOR EVALUATION PART NUMBERS

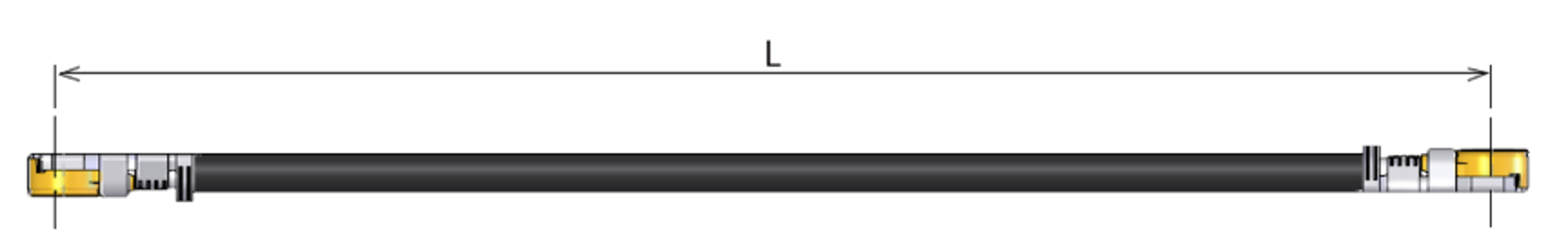

MHF 4L-4L OD0.95MM 100MM Type-2

Part Number Description Part Number Weight (mg)
MHF 4L-4L harness OD=0.64mm L=50mm 180 degree orientation 8-25-0922 86.1
MHF 4L-4L harness OD=0.64mm L=100mm 180 degree orientation 8-25-0923 115
MHF 4L-4L harness OD=0.64mm L=200mm 180 degree orientation 8-25-0924 230
MHF 4L-4L harness OD=0.81mm L=50mm 180 degree orientation 8-25-0934 207.1
MHF 4L-4L harness OD=0.81mm L=100mm 180 degree orientation 8-25-0935 167
MHF 4L-4L harness OD=0.81mm L=200mm 180 degree orientation 8-25-0936 334
MHF 4L-4L harness OD=0.81mm L=300mm 180 degree orientation 8-25-0937 624.6
MHF 4L-4L harness OD=0.81mm L=400mm 180 degree orientation 8-25-0938 700.8
MHF 4L-4L harness OD=0.81mm L=500mm 180 degree orientation 8-25-0939 867.8
MHF 4L-4L harness OD=0.95mm L=100mm 180 degree orientation 8-25-0972 282
MHF 4L-4L harness OD=0.95mm L=200mm 180 degree orientation 8-25-0973 524
MHF 4L-4L harness OD=0.95mm L=300mm 180 degree orientation 8-25-0974 757
MHF 4L-4L harness OD=0.95mm L=400mm 180 degree orientation 8-25-0975 996
MHF 4L-4L harness OD=0.95mm L=500mm 180 degree orientation 8-25-0976 1235
MHF 4L-4L harness OD=1.13mm L=50mm 180 degree orientation 8-25-0947 190.5
MHF 4L-4L harness OD=1.13mm L=100mm 180 degree orientation 8-25-0948 341
MHF 4L-4L harness OD=1.13mm L=200mm 180 degree orientation 8-25-0949 642
MHF 4L-4L harness OD=1.13mm L=300mm 180 degree orientation 8-25-0950 943
MHF 4L-4L harness OD=1.13mm L=400mm 180 degree orientation 8-25-0951 1244
MHF 4L-4L harness OD=1.13mm L=500mm 180 degree orientation 8-25-0952 1545
MHF 4L-4L harness OD=1.37mm L=50mm 180 degree orientation 8-25-0959 279.8
MHF 4L-4L harness OD=1.37mm L=100mm 180 degree orientation 8-25-0960 494
MHF 4L-4L harness OD=1.37mm L=200mm 180 degree orientation 8-25-0961 924
MHF 4L-4L harness OD=1.37mm L=300mm 180 degree orientation 8-25-0962 1354.8
MHF 4L-4L harness OD=1.37mm L=400mm 180 degree orientation 8-25-0963 1784.8
MHF 4L-4L harness OD=1.37mm L=500mm 180 degree orientation 8-25-0964 2214.8
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



MHF 4L OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF 4 receptacle 20449-001E-03 4.54
MHF 4 receptacle thick plating type 20449-001E 4.54
MHF 4L plug OD=0.83mm 20565-001R-83 20.2
MHF 4L plug OD=0.81mm 20572-002R-08 20.2

MHF 4L ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check 90449-001 2571.2

For_Plug_Voltage_MHF_4&4L&4L_LK
MHF 4/4L/4L LK adapter for plug voltage-check 90449-003-01 680

For voltage check
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check 90449-002 1685

For electrical performance check
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle 90698-0001 7170

Probe
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm 90577-0100 4503.2

Adaptor cable (Attach to probe)
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm 90577-0200 5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm 90577-0750 9769.8
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe 90576-0001 1458.1

Probe
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF series SMA adapter for receptacle high-cycle detachable base
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe 90683-0001 1822.3

MHF 4L insertion/extraction tool [20572-001R-08][20565-001R-13] 90609-0001 600

Insertion/Extraction tool
MHF 4L insertion/extraction tool [20632-001R-37] 90873-0001 1020
MHF 4L insertion/extraction tweezer [20572-001R-08] 90616-0008 17320

MHF 4L insertion/extraction tweezer [20565-001R-13] 90615-0013 17730



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF 4L 91602-001B-001 18066

MHF_4L_SI_TB-859_Test_Board_(C)

Main Board

MHF_4L_SI_TB-859_THRU_Board_(C)
Thru Board



Insertion/Extraction tools and tweezers are ready for MHF® 4L

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.



Insertion/Extraction tools

 How to extract

MHF 4L_Insertion/Extraction tool

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.



Insertion/Extraction tweezers

 How to extract

Insertion/Extraction tweezer_1

Closing the tool lightly, slide it to the end.

 Insertion/Extraction tweezer_2

Clip the plug and pull the tool vertically from the receptacle to withdraw.



Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series High Cycle Series
Standard type Narrow Pitch type Detachable type
Durability: 500 Durability: 10,000 Durability: 10,000 (Probe), 100 (Cable) Durability: 10,000 (Probe), 200,000 (Base)
MHF_I&_LK_Rece_Standard

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.

 MHF_I&_LK_Rece_High_Cycle_Standard

The Standard type connects directly from the probe to the measuring instrument.

 MHF_I&_LK_Rece_High_Cycle_Narrow

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

 MHF_I&_LK_Rece_High_Cycle_Detachable

The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.



SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board

MHF 4L EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF 4L receptacle 20579-001E-01 Larger reel size, MOQ: 20,000 20579-001E Smaller reel size, MOQ: 10,000
