MHF® 4L

M.2 行业标准，组合高度最大为1.2 mm, 1.4 mm , 1.7 mm 对应12 GHz 的插入损耗和电压驻波比

  • 穿过12 GHz 的高性能小型连接器

  • 使用“i-Fit®” 技术的无需焊接极细同轴线连接

  • 我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择

*关于机械锁的额外嵌合保持力，请查看MHF® 4L LK插头电缆组件。
Height:
1.20 Max 1.40 Max 1.70 Max
频率范围:
Up to 12 GHz
极细同轴线(AWG):
#36 (O.D. 0.64 mm) #36 (O.D. 0.81 mm) #32 (O.D. 1.13 mm) #33 (O.D. 0.95 mm) #30 (O.D. 1.37 mm)

下载

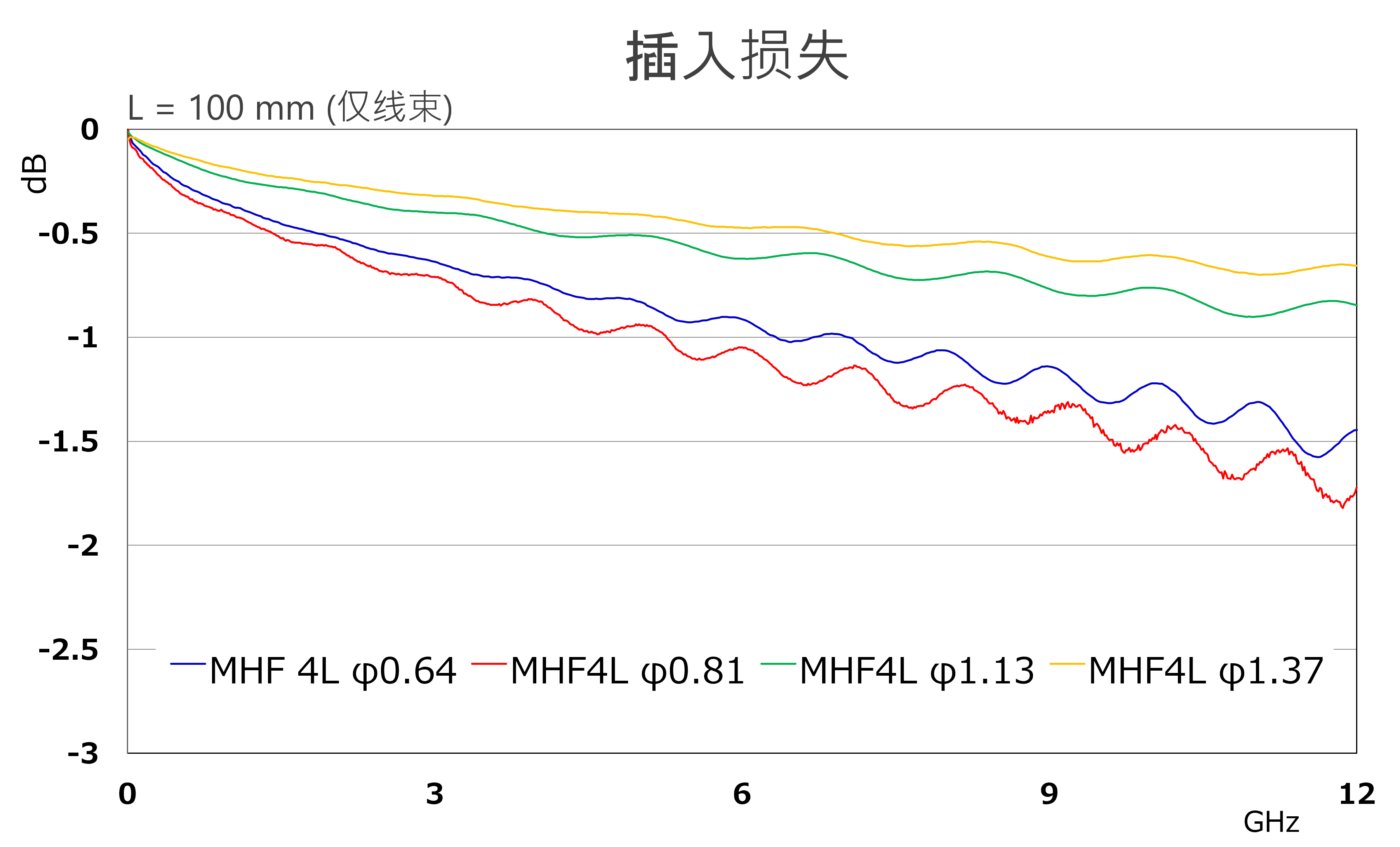

穿过12 GHz 的高性能小型连接器
MHF 4L_FAB1_SC.png

使用“i-Fit®” 技术的无需焊接极细同轴线连接
MHF 4L_FAB2_SC.png

我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择
MHF 4L_FAB3_SC.png

Product Type
Coaxial RF Connector
Height
1.20 Max 1.40 Max 1.70 Max
SMT Size (mm)
2.0 x 2.0 mm
Micro-Coaxial Cable (AWG)
#36 (O.D. 0.64 mm) #36 (O.D. 0.81 mm) #32 (O.D. 1.13 mm) #33 (O.D. 0.95 mm) #30 (O.D. 1.37 mm)
Frequency range
Up to 12 GHz
Applicable Standards (Reference Only)
5G sub6 IEEE802.11n IEEE802.11ac IEEE802.11ax IEEE802.11be Wi-Fi 4 Wi-Fi 5 Wi-Fi 6/6E Wi-Fi 7 LTE / LTE-Advanced LPWA Bluetooth GPS
Full shielding (ZenShield®)
No
Mechanical lock
No
VSWR (PLUG) DC~3GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)
3GHz~6GHz : 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
3GHz~6GHz : 1.4 max. (O.D. 1.37 mm)
6GHz~9GHz : 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm)
6GHz~9GHz : 1.5 max. (O.D. 1.37 mm)
9GHz~12GHz : 1.9 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13 mm)
9GHz~12GHz : 1.6 max. (O.D. 1.37 mm)
VSWR (RECEPTACLE) DC~3GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)
3GHz~6GHz : 1.4 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)
6GHz~9GHz : 1.55 max. (MHF 4) (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)
6GHz~9GHz : 1.5 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13 mm)
9GHz~12GHz : 1.65 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm)

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



MHF 4L RECOMMENDED PART NUMBERS

Part Number Description Part Number
MHF 4L plug OD=0.81/0.64mm 20572-001R-08
MHF 4L plug OD=1.13/0.95mm 20565-001R-13
MHF 4L plug OD=1.37mm 20632-001R-37
MHF 4L receptacle 20579-001E



SAMPLE HARNESS FOR EVALUATION

Part Number Description Part Number
MHF 4L-4L harness OD=1.13mm L=50mm 8-23-0115
MHF 4L-4L harness OD=1.13mm L=100mm 8-23-0112
MHF 4L-4L harness OD=1.13mm L=200mm 8-21-0043
MHF 4L-4L harness OD=1.13mm L=500mm 8-24-0128
MHF 4L-4L harness OD=1.37mm L=50mm 8-23-0116
MHF 4L-4L harness OD=1.37mm L=100mm 8-23-0113
MHF 4L-4L harness OD=1.37mm L=200mm 8-23-0114
MHF 4L-4L harness OD=1.37mm L=500mm 8-24-0129
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



OTHER MHF 4L PART NUMBERS

Part Number Description Part Number
MHF 4 receptacle 20449-001E-03
MHF 4 receptacle thick plating type 20449-001E
MHF 4L receptacle 20579-001E-01
Part Number Description Part Number
MHF 4/4L/4L LK SMA adapter for plug electrical-performance-check 90449-001
MHF 4/4L/4L LK SMA adapter for plug voltage-check 90449-003-01
MHF 4/4L/4L LK SMA adapter for receptacle electrical-performance-check 90449-002
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle 90698-0001
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm 90577-0100
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm 90577-0350
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm 90577-0750
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle probe 90576-0001
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001
MHF 4/4L/4L LK SMA adapter for receptacle high-cycle detachable probe 90683-0001
MHF 4L insertion/extraction tool [20572-001R-08][20565-001R-13] 90609-0001
MHF 4L insertion/extraction tool [20632-001R-37] 90873-0001
MHF 4L insertion/extraction tweezer [20572-001R-08] 90616-0008
MHF 4L insertion/extraction tweezer [20565-001R-13] 90615-0013
MHF 4L insertion/extraction tweezer narrow-pitch 91493-0001



SI Test Board with 2.92mm Adapter Part Number
SI Test Board for MHF 4L 91602-001B-001
