MHF® 7S

Excellent EMC performance with fully-shielded design, ideal for 5G mmWave applications, VSWR 1.5 max at 15 GHz in small 2.0 x 2.0 mm footprint

  • Unique shielded design (ZenShield®) reduces unwanted EMI found in 5G mmWave applications

  • Small form factor with max VSWR 1.50

  • Industry-first stripline terminated signal pin inside receptacle ground contact

Height:
1.40 Max
Frequency Range:
Up to 15 GHz
Micro-Coaxial Cable (AWG):
#32 (O.D. 1.13 mm)
  • Ipex icon halogen free
  • Ipex icon REACH
  • Ipex icon RoHS

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Symbols & Footprints

    Symbols and footprints may be downloaded from an external site, SnapMagic.

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

    • Unique shielded design (ZenShield®) reduces unwanted EMI found in 5G mmWave applications
    Electric field strength distribution (simulation)
    MHF® 4L
    General design    		 MHF® 7S
    High-performanceEMI shielding design
    MHF_7S_FAB1-1.jpg MHF_7S_FAB1-2.jpg

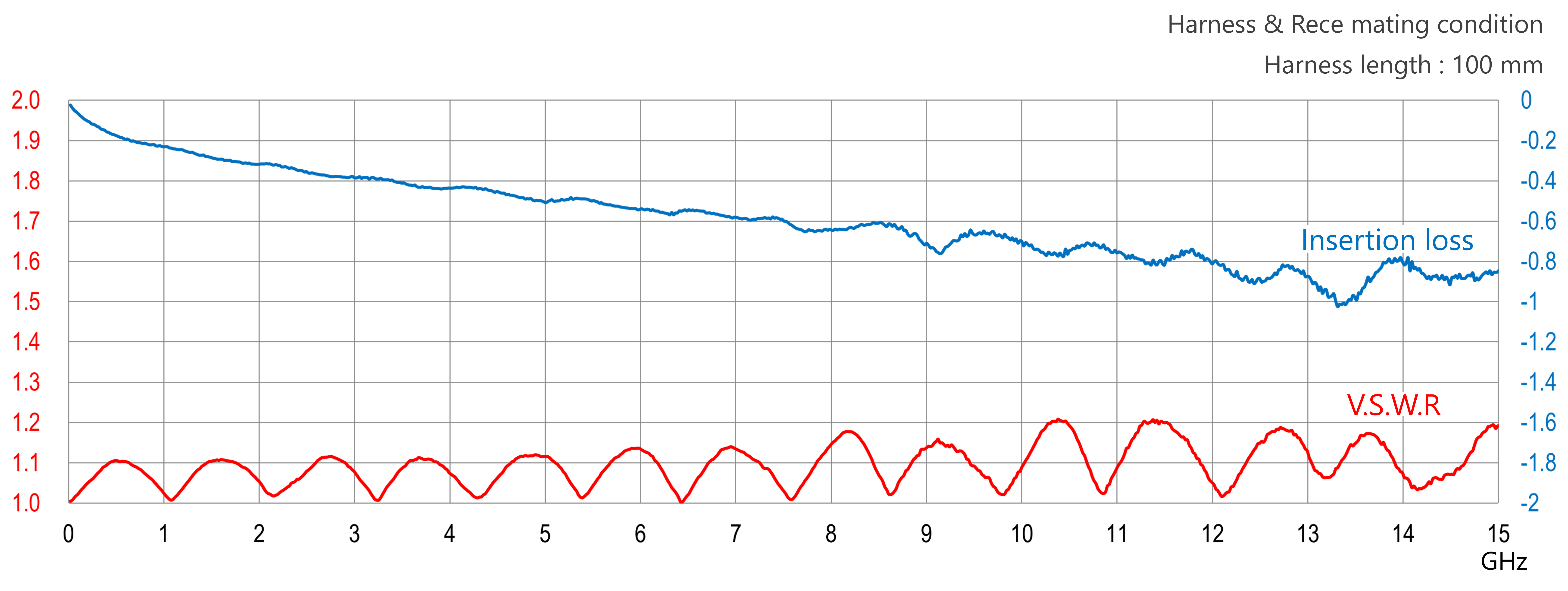

    Small form factor with max VSWR 1.50

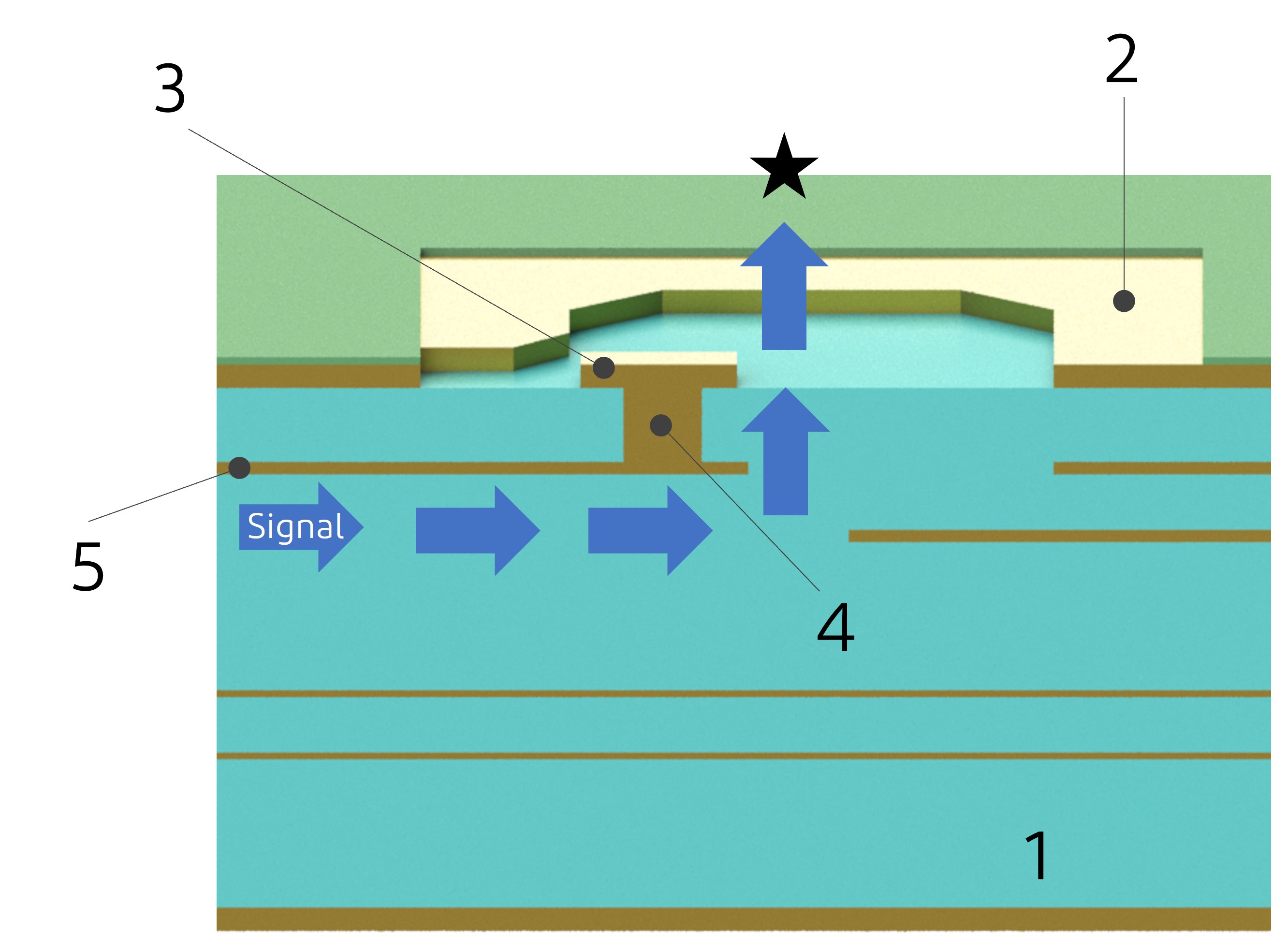

    Industry-first stripline terminated signal pin inside receptacle ground contact

    1. Signal pin inside receptacle ground ring

    ★Input to connector
    1. Base material     2. Ground contact pattern
    3. Contact pattern     4. Pad on via
    5. Signal line



    Product Type
    Coaxial RF Connector
    Height
    1.40 Max
    SMT Size (mm)
    2.0 x 2.0 mm
    Micro-Coaxial Cable (AWG)
    #32 (O.D. 1.13 mm)
    Frequency range
    Up to 15 GHz
    V.S.W.R.
    VSWR (DC~3GHz) 1.3 VSWR (3GHz~6GHz) 1.35 VSWR (6GHz~9GHz) 1.40 VSWR (9GHz~12GHz) 1.45 VSWR (9GHz~15GHz) 1.50
    Applicable Standards (Reference Only)
    5G mmWave(~15GHz) 5G sub-6 IEEE802.11 b IEEE802.11 a IEEE802.11 g Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E WiGig LTE/LTE-Advanced LPWA Bluetooth GPS
    Full shielding (ZenShield®)
    Yes
    Mechanical lock
    No

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.
    *The MHF 7S is offered as our MHF 7S harness assembly only.
      Please specify harness assembly specification (single-end or double-ended, cable size, length, color).



    MHF 7S RECOMMENDED PART NUMBERS

    Part Number Description Part Number
    MHF 7S PLUG O.D. 1.13 mm (Offered as harness only)* 20980-001R-13
    MHF 7S RECEPTACLE 20981-001E-02

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Harness Length Part Number

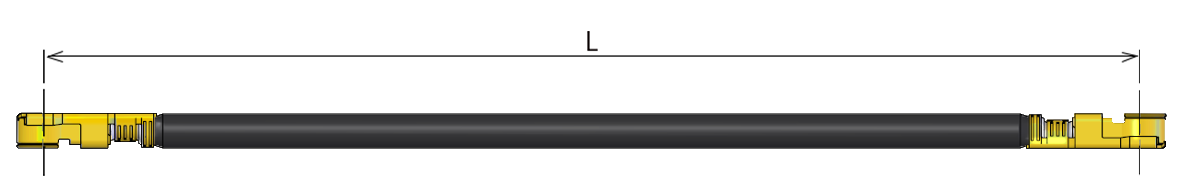

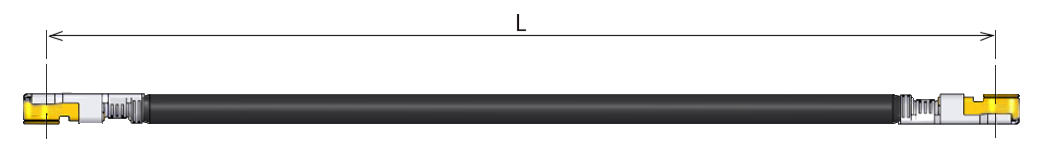

    MHF 7S-7S CABLE 113-1 100 mm 8-22-0127
    MHF 7S-7S CABLE 113-1 150 mm 8-23-0117
    MHF 7S-7S CABLE 113-1 200 mm 8-21-0046


    SMA Adapter Usage (Durability Cycles) Part Number

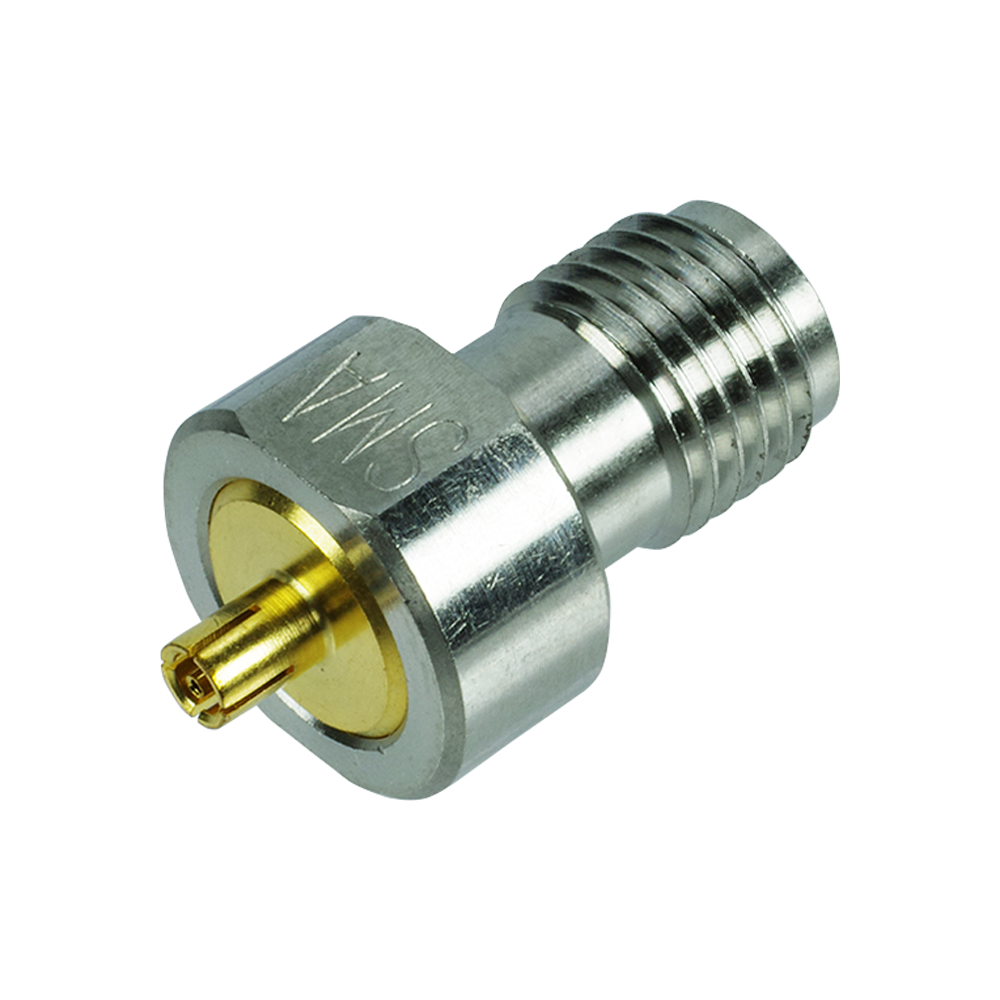

    Plug Electrical Performance Check 91255-0001

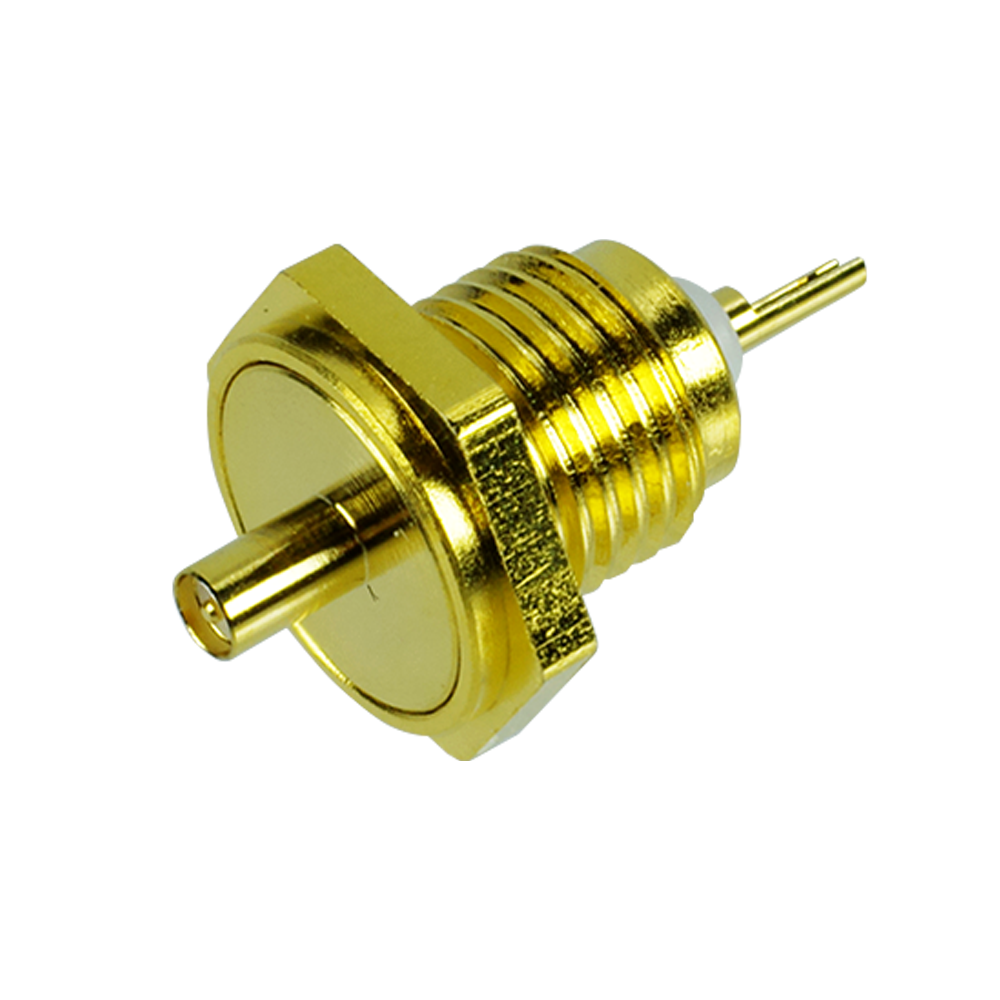

    Voltage Check 91245-0001
    Receptacle Electrical Performance Check / 2.4 (500)  91107-0001

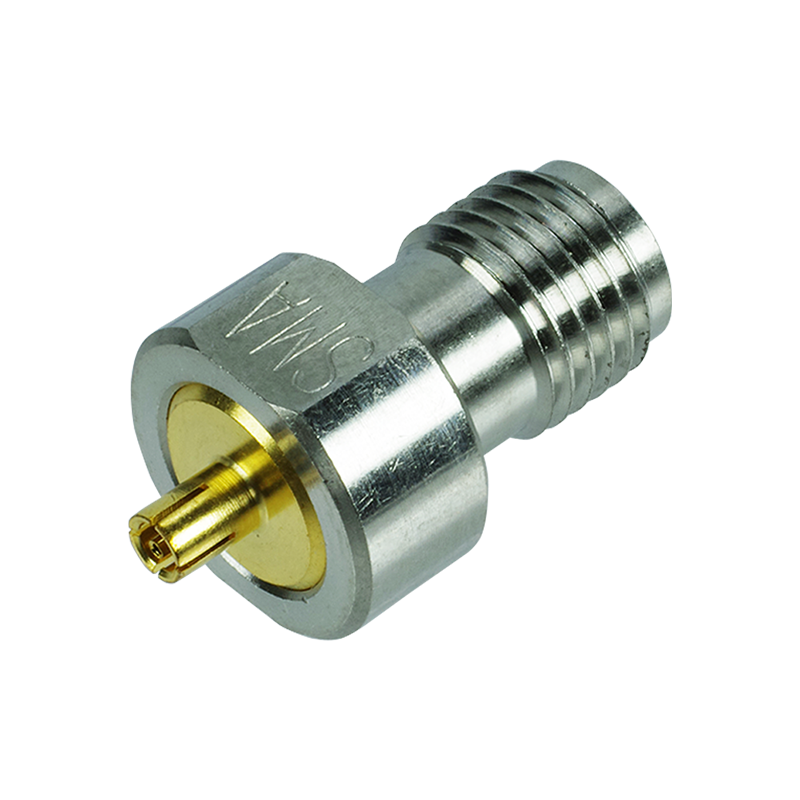

    Electrical Performance Check / SMA (500) 91256-0001

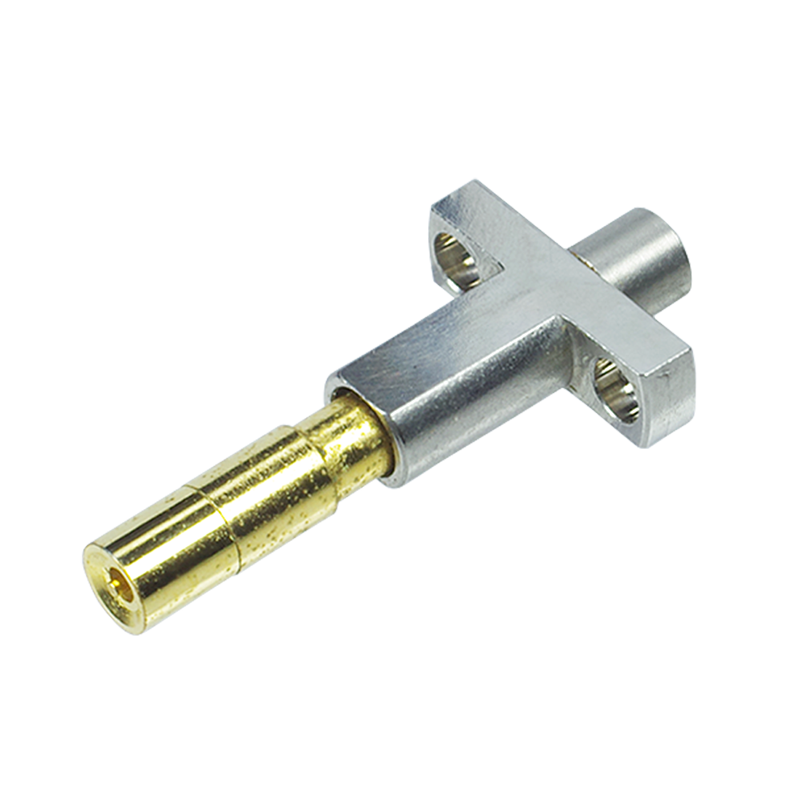

    High Cycle / Narrow Pitch / With floating function (10K) 91145-0001

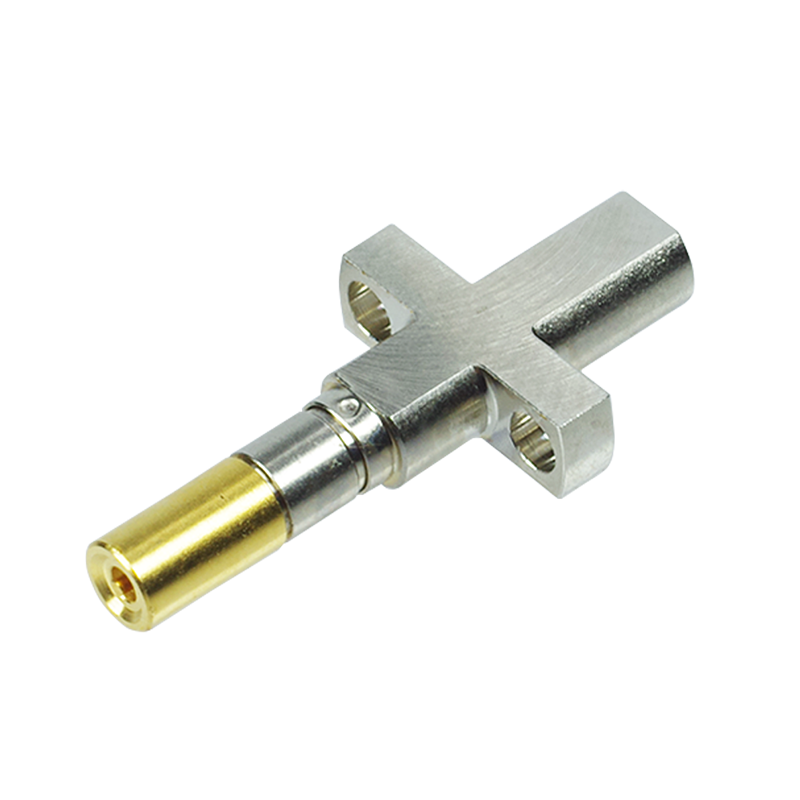

    High Cycle / Narrow Pitch / Without floating function (10K) 91136-0001
    High Cycle / Narrow Pitch  / Wire / 2.4 (100) 91137-J300
    High Cycle / Narrow Pitch  / Wire / SMA Plug (100)

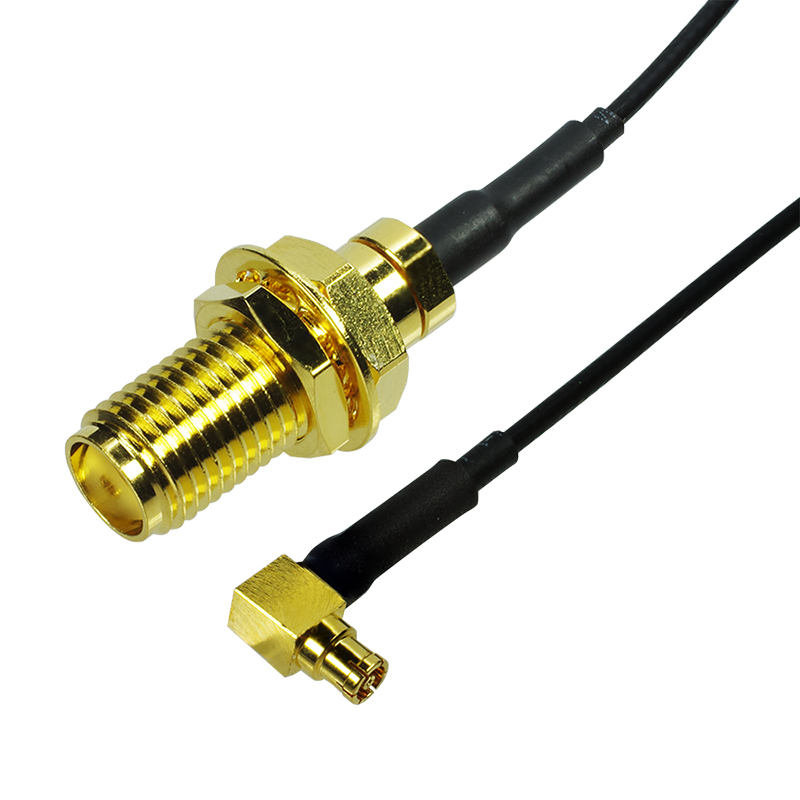

    91197-300P

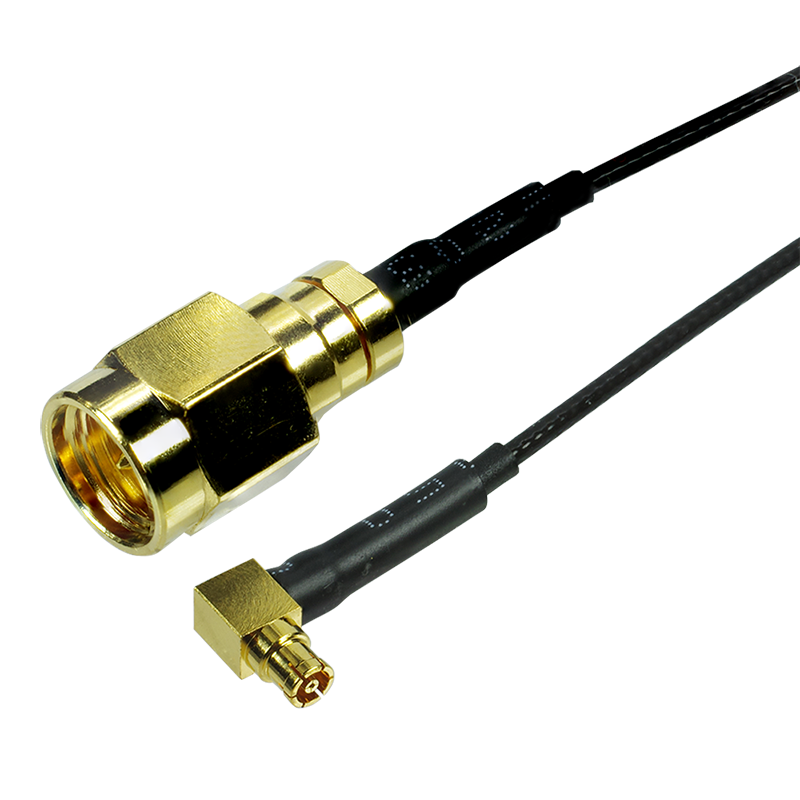

    High Cycle / Narrow Pitch  / Wire / SMA Jack (100) 91197-300J
    Hand Tool Part Number

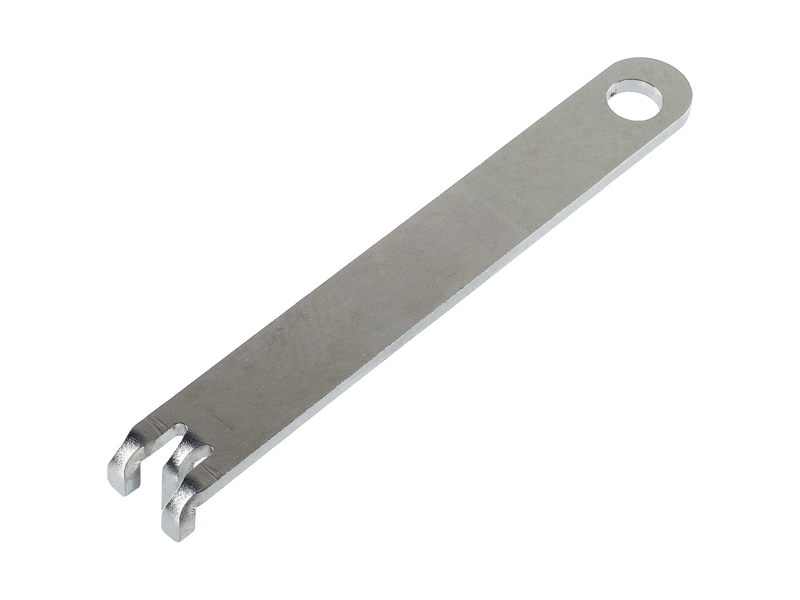

    Mating / Unmating Tool  91186-0001
