MHF® 4L

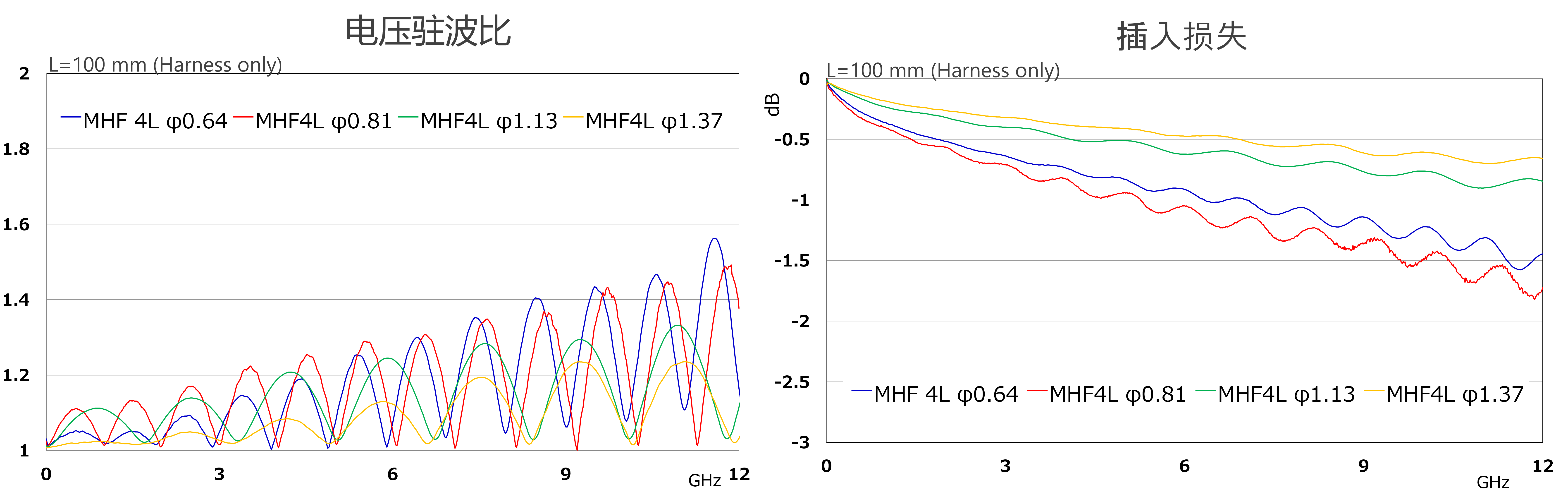

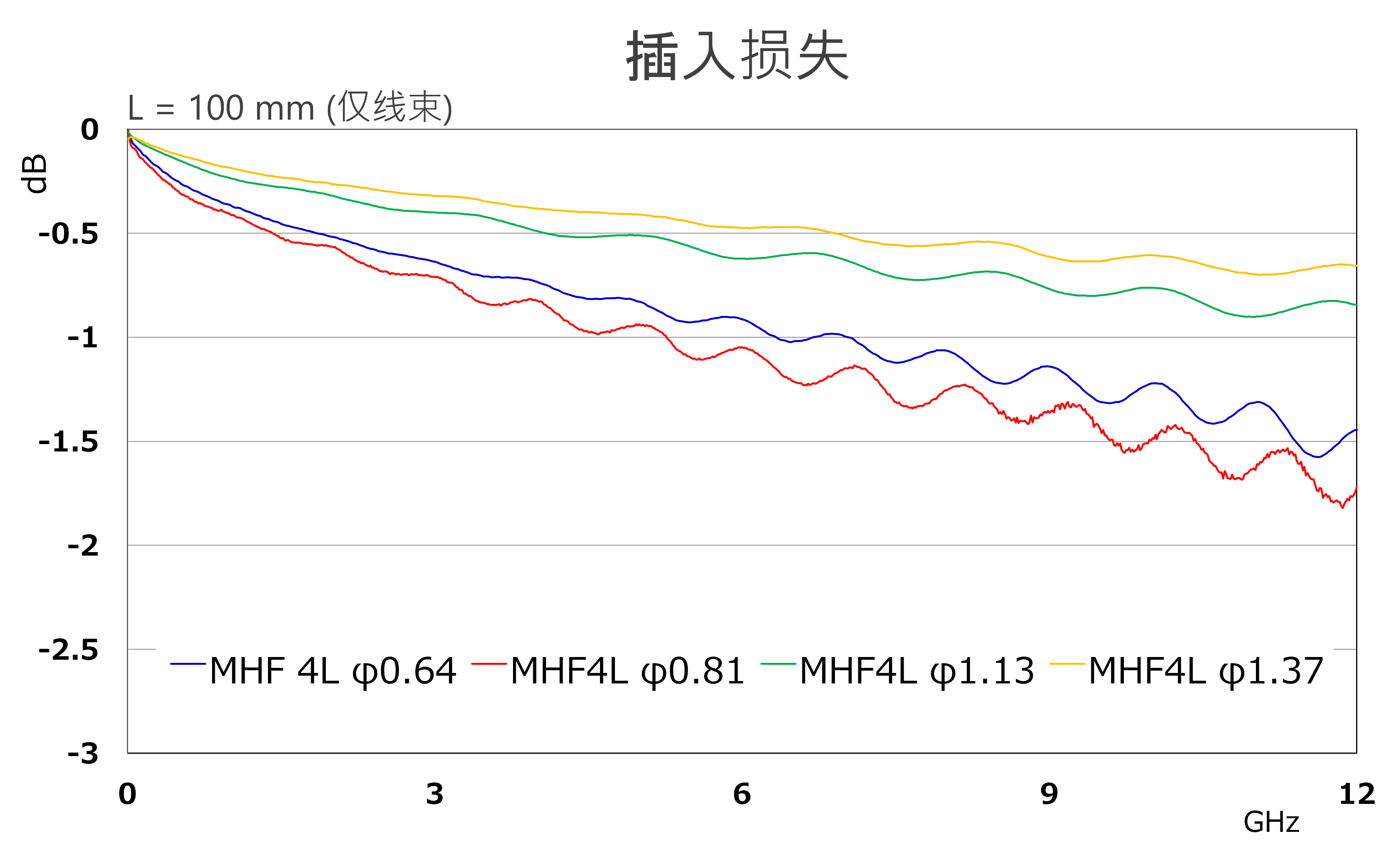

M.2 行业标准，组合高度最大为1.2 mm, 1.4 mm , 1.7 mm 对应12 GHz 的插入损耗和电压驻波比
穿过12 GHz 的高性能小型连接器
使用“i-Fit®” 技术的无需焊接极细同轴线连接
我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择
*关于机械锁的额外嵌合保持力，请查看MHF® 4L LK插头电缆组件。
Height:
1.20 Max
1.40 Max
1.70 Max
频率范围:
Up to 12 GHz
极细同轴线(AWG):
#36 (O.D. 0.64 mm)
#36 (O.D. 0.81 mm)
#32 (O.D. 1.13 mm)
#33 (O.D. 0.95 mm)
#30 (O.D. 1.37 mm)
下载
穿过12 GHz 的高性能小型连接器
使用“i-Fit®” 技术的无需焊接极细同轴线连接
我们可提供MHF® 4L公座的各种线缆外径和附加机械锁扣供您选择
| Product Type |
Coaxial RF Connector
|
| Height |
1.20 Max
1.40 Max
1.70 Max
|
| SMT Size (mm) |
2.0 x 2.0 mm
|
| Micro-Coaxial Cable (AWG) |
#36 (O.D. 0.64 mm)
#36 (O.D. 0.81 mm)
#32 (O.D. 1.13 mm)
#33 (O.D. 0.95 mm)
#30 (O.D. 1.37 mm)
|
| Frequency range |
Up to 12 GHz
|
| Applicable Standards (Reference Only) |
5G sub6
IEEE802.11n
IEEE802.11ac
IEEE802.11ax
IEEE802.11be
Wi-Fi 4
Wi-Fi 5
Wi-Fi 6/6E
Wi-Fi 7
LTE / LTE-Advanced
LPWA
Bluetooth
GPS
|
| Full shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|

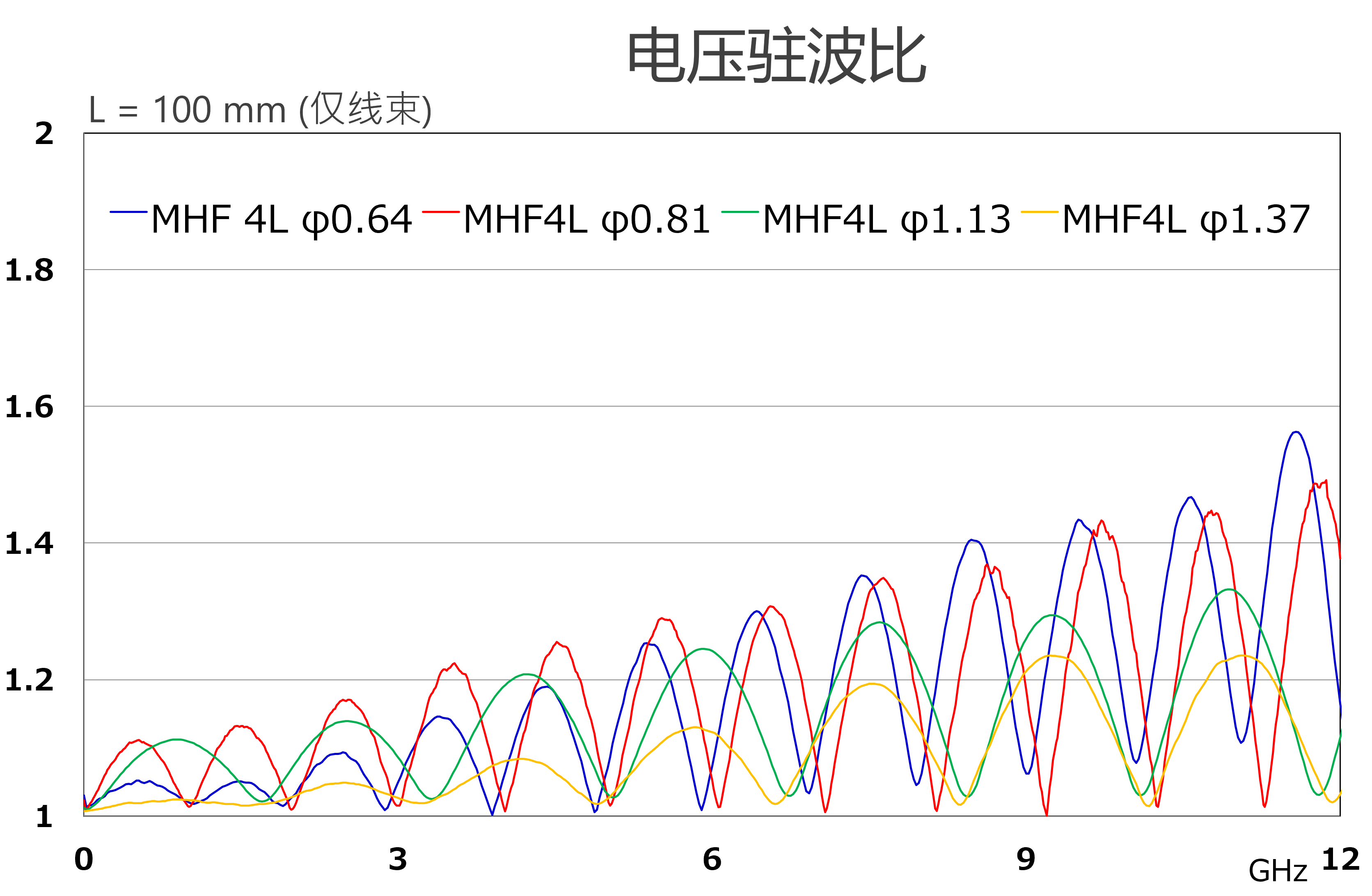

| VSWR (PLUG) | DC~3GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) 3GHz~6GHz : 1.45 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm) 3GHz~6GHz : 1.4 max. (O.D. 1.37 mm) 6GHz~9GHz : 1.6 max. (O.D. 0.64, 0.81, 0.95, 1.13 mm) 6GHz~9GHz : 1.5 max. (O.D. 1.37 mm) 9GHz~12GHz : 1.9 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13 mm) 9GHz~12GHz : 1.6 max. (O.D. 1.37 mm) |
| VSWR (RECEPTACLE) | DC~3GHz : 1.3 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) 3GHz~6GHz : 1.4 max. (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) 6GHz~9GHz : 1.55 max. (MHF 4) (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) 6GHz~9GHz : 1.5 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13 mm) 9GHz~12GHz : 1.65 max. (MHF 4L) (O.D. 0.64, 0.81, 0.95, 1.13, 1.37 mm) |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
MHF 4L RECOMMENDED PART NUMBERS
| Part Number Description | Part Number |
| MHF 4L PLUG O.D. 0.81 mm, O.D. 0.64 mm / AWG 36 | 20572-001R-08 |
| MHF 4L PLUG O.D. 1.13 mm / AWG 32, O.D. 0.95 mm / AWG 33 | 20565-001R-13 |
| MHF 4L PLUG O.D. 1.37 mm / AWG 30 | 20632-001R-37 |
| MHF 4L RECEPTACLE | 20579-001E |
SAMPLE HARNESS FOR EVALUATION
| Part Number Description | Harness Length | Part Number |
| MHF 4L-4L CABLE113-1 | 50 mm | 8-23-0115 |
| MHF 4L-4L CABLE113-1 | 100 mm | 8-23-0112 |
| MHF 4L-4L CABLE113-1 | 200 mm | 8-21-0043 |
| MHF 4L-4L CABLE113-1 | 500 mm | 8-24-0128 |
| MHF 4L-4L CABLE137-1 | 50 mm | 8-23-0116 |
| MHF 4L-4L CABLE137-1 | 100 mm | 8-23-0113 |
| MHF 4L-4L CABLE137-1 | 200 mm | 8-23-0114 |
| MHF 4L-4L CABLE137-1 | 500 mm | 8-24-0129 |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
OTHER MHF 4L PART NUMBERS
| Part Number Description | Part Number |
| MHF 4 RECEPTACLE | 20449-001E-03 |
| MHF 4 RECEPTACLE | 20449-001E |
| MHF 4 RECEPTACLE (2,500 pcs/reel) | 20449-001E-07 |
| MHF 4L RECEPTACLE (20,000 pcs/reel) | 20579-001E-01 |
| SMA Adapter | Product Description (Durability Cycles) | Part Number |
| Plug | Electrical Performance Check (3,000) | 90449-001 |
| Voltage Check (10,000) | 90449-003-01 | |
| Receptacle | Electrical Performance Check (500) | 90449-002 |
| High Cycle / Normal (10,000) | 90698-0001 | |
| High Cycle / Narrow Pitch / Wire (100) | 90577-0100 (100mm) | |
| 90577-0350 (350mm) | ||
| 90577-0750 (750mm) | ||
| High Cycle / Narrow Pitch / Probe (10,000) | 90576-0001 | |
| High Cycle / Detachable / Base (200,000) | 90684-0001 | |
| High Cycle / Detachable / Probe (10,000) | 90683-0001 |
| Hand Tool | Part Number | |
| Mating / Unmating Tool (for 20572-001R-08 / 20565-001R-13) | 90609-0001 | |
| Mating / Unmating Tool (for 20632-001R-37) | 90873-0001 | |
| Mating / Unmating Tweezer | 90616-0008 | |
| Mating / Unmating Tweezer | 90615-0013 | |
| SI Test Board with 2.92mm Adapter | Part Number | |
| SI Test Board for MHF 4L | 91602-001B-001 | |
