CABLINE®-CA IIF PLUS

CABLINE-CA IIF PLUS
全屏蔽设计,多点接地和机械锁扣,0.4 mm 间距, 水平对插款的的FPC 型公头连接器
  • 出色的差分 SI 性能(32 Gbps/Lane)

  • ZenShield®的全屏蔽和多点接地设计,有效防止EMI外泄

  • 机械式锁扣罩防止连接器不完全嵌合及脱落

接点间距(mm):
0.400
Height:
1.20 Max ,
可提供Pin数:
60
嵌合类型:
Horizontal

下载


  • 产品目录

  • 2D图面

  • 技术参数

  • 3D图面(IGES)

  • 3D图面(STEP)

  • FPC Pattern (DXF)

  • Symbols(脚位图)和Footprints(封装图)

  • 测试报告

  • SI测试板

  • 操作手册

  • 包装标准

  • 认证

  • 出色的差分 SI 性能(32 Gbps/Lane)

    CABLINE-CA_IIF_PLUS_FAB1-1_E.png CABLINE-CA_IIF_PLUS_FAB1-2_E.png

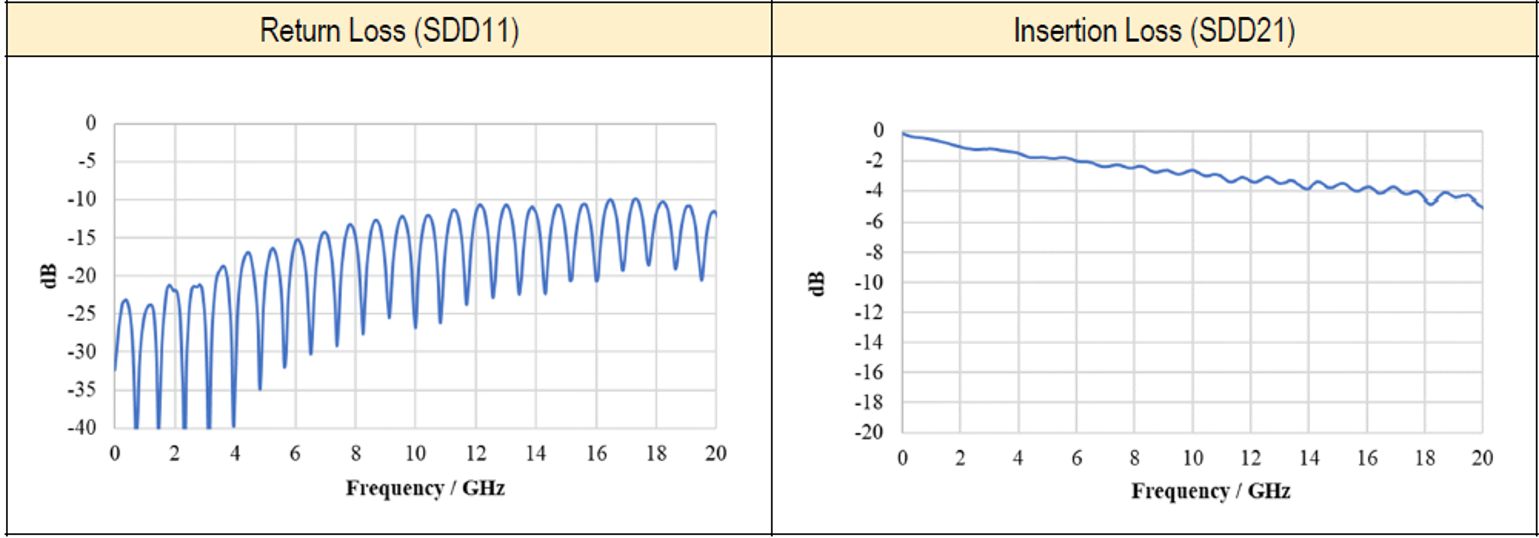

    Insertion Loss
    Return Loss
    FPC length : 100mm   Reference Impedance : 90 Ohms differential   Pin Assignment GSSGSSG

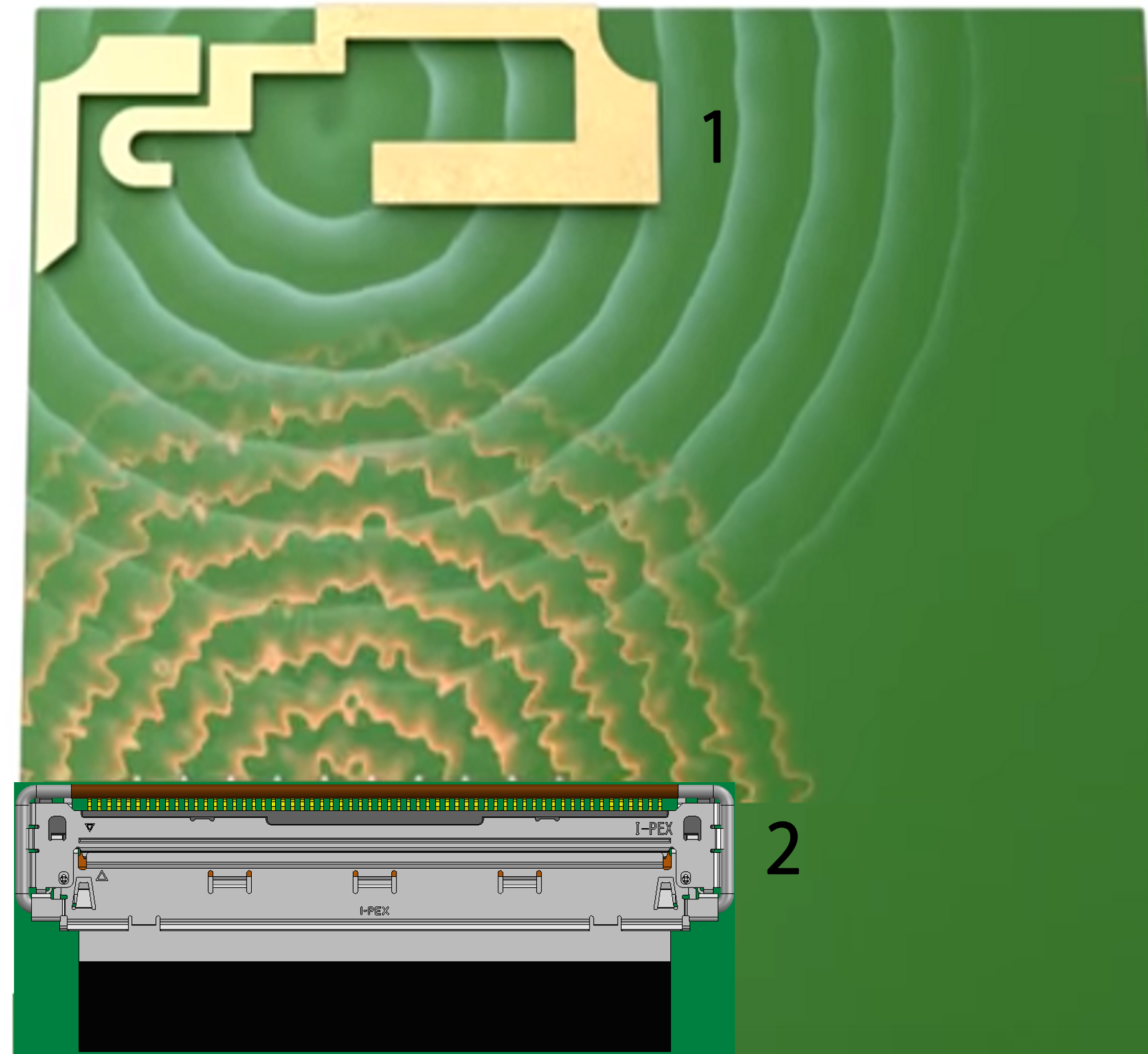

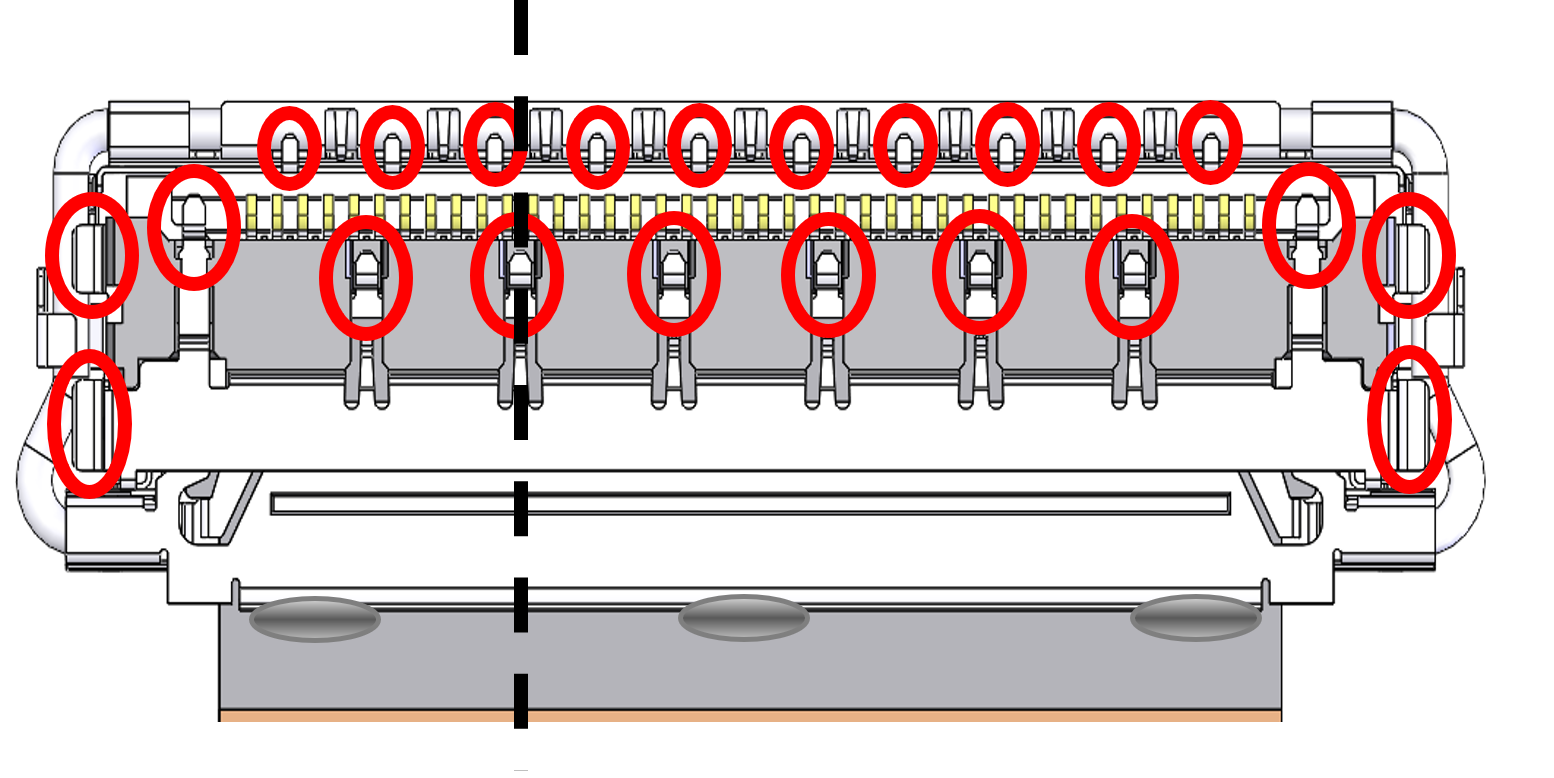

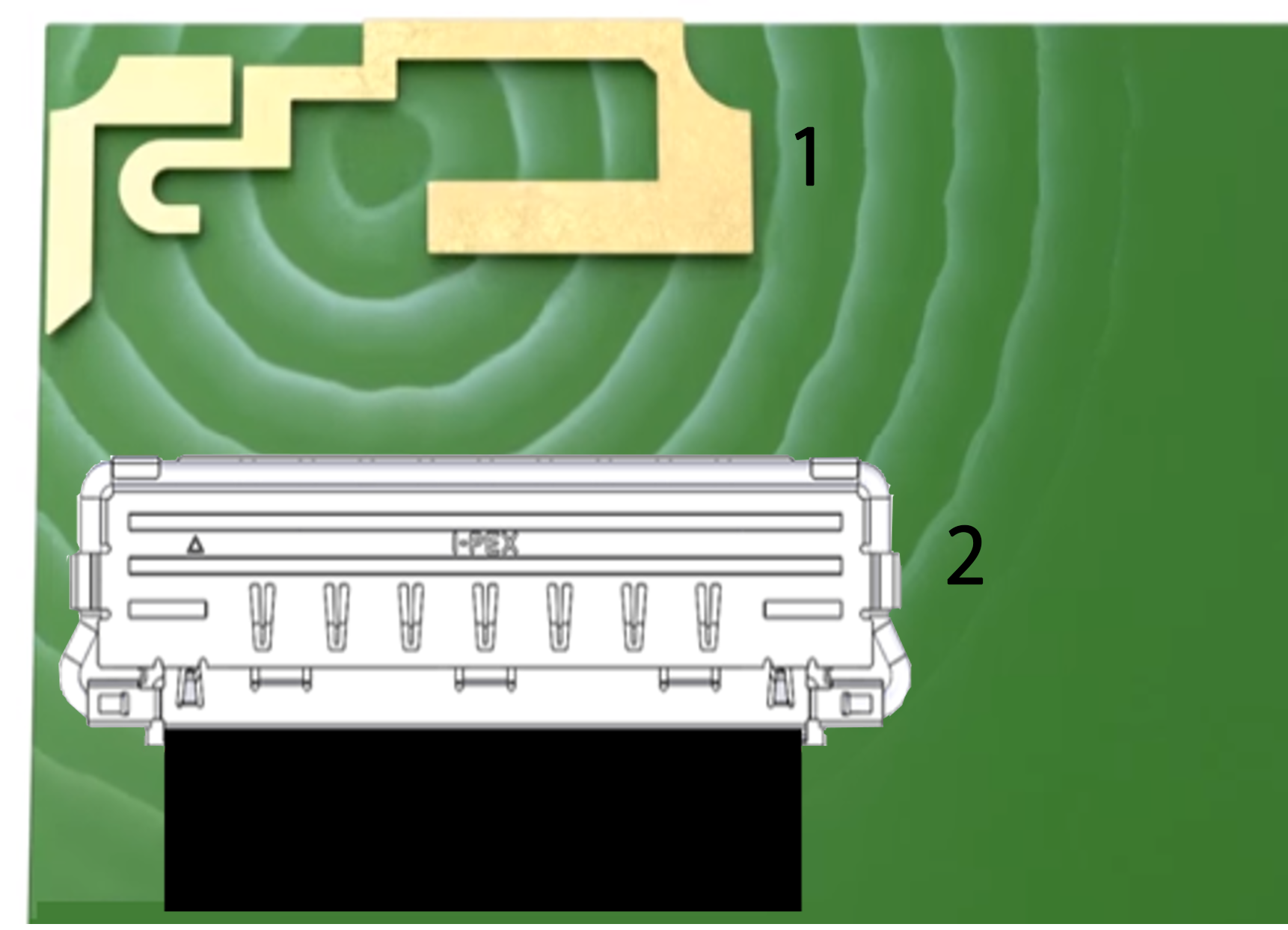

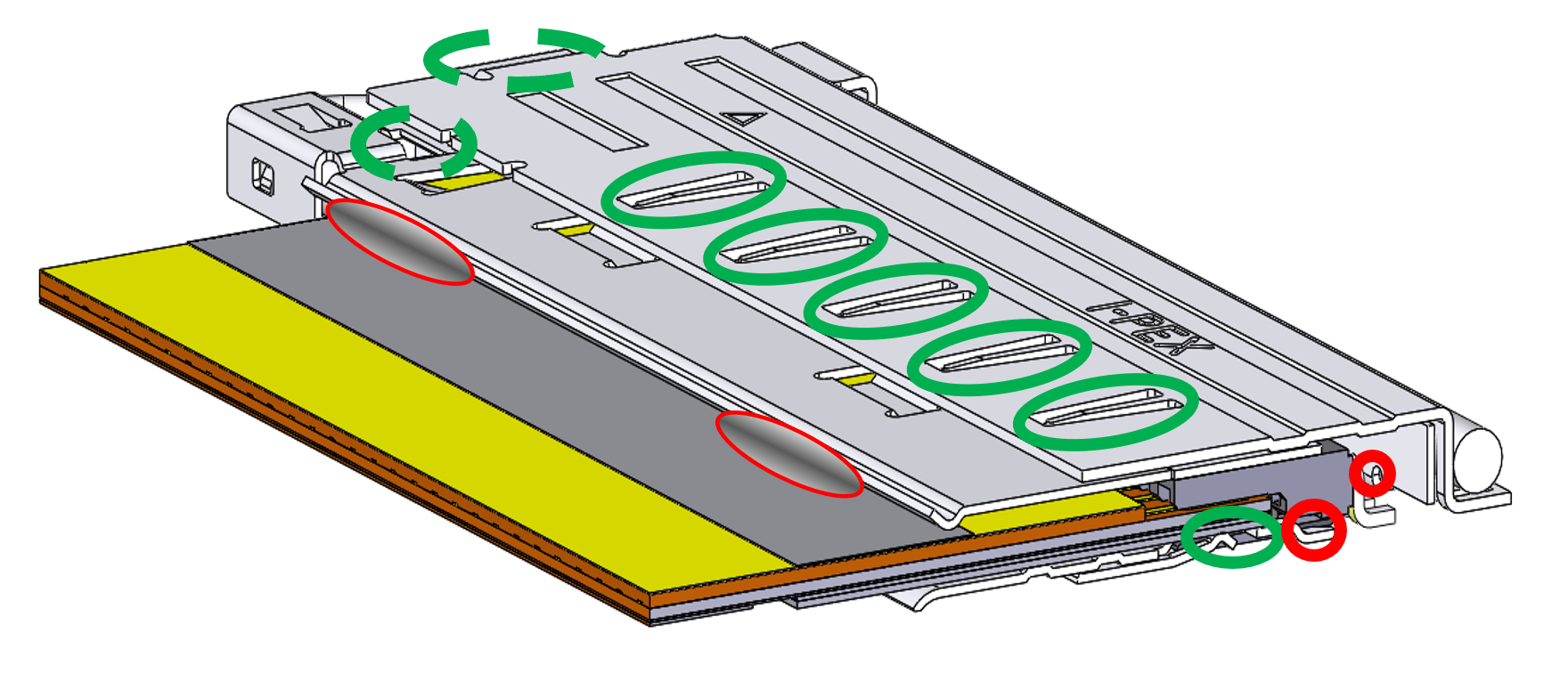

    ZenShield®的全屏蔽和多点接地设计,有效防止EMI外泄

    ZenShield®的全屏蔽和多点接地设计,有效防止EMI外泄

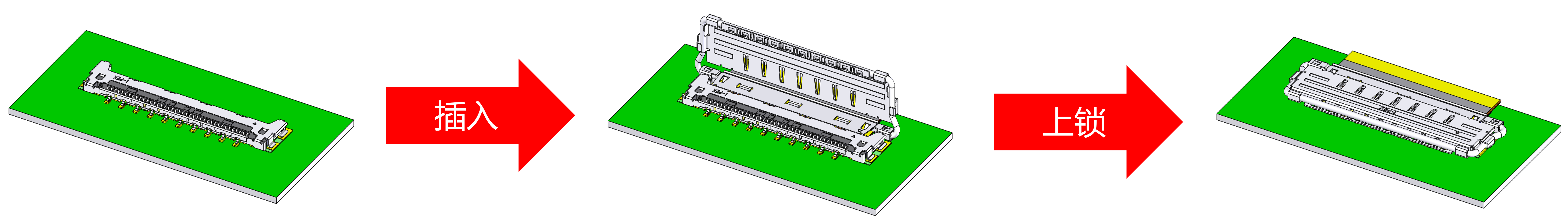

    机械式锁扣罩防止连接器不完全嵌合及脱落

    Unable to lock
    Can only be locked when mating is complete
    CABLINE-CA_IIF_PLUS_FAB3-2_E.png CABLINE-CA_IIF_PLUS_FAB3-3_E.png

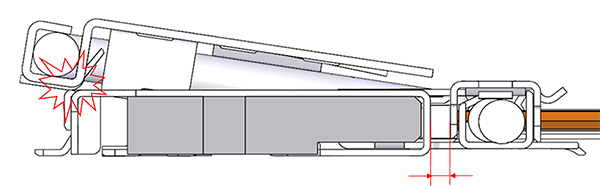

    incomplete mating

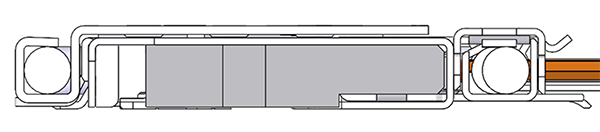

    complete mating

    Contact pitch
    0.400 mm
    Height
    1.20 Max ,
    Depth
    7.24 mm
    Width Formula
    30.95 mm
    Pin count
    60
    Current rating
    0.3A / Signal pin
    Applicable Standards (Reference Only)
    32GT/s/Lane NRZ, USB4 Gen4 (40 Gbps/Lane PAM3), USB4 Gen3 (20 Gbps/Lane), Display Port UHBR20 (20 Gbps/Lane)
    Full shielding (ZenShield®)
    Yes

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.

    CABLINE-CA IIF PLUS RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG SHELL ASSEMBLY 60 20901-060T-01
    RECEPTACLE ASSEMBLY 60 20790-060E-02



    SI Test Board with 2.92mm Adapter Part Number
    SI Test Board for CABLINE-CA II PLUS 91548-060B-001
