MINIDOCK™ STANDARD
Robust high-pin-count docking I/O connector
Rugged, secure and reliable I/O connector for multiple applications
Durable up to 5,000 mating cycles
Wide selection of mating directions and circuit sizes
Contact Pitch:
0.635
(mm)
Mating Direction:
Horizontal
Vertical
Available Pin Count:
100
200
Downloads
-
3D Models
-
Specs & Test Reports
-
Product Specification
-
Test Reports
-
-
PCB/FPC Data
-
Symbols & Footprints
Symbols and footprints may be downloaded from an external site, SnapMagic.
-
-
-
Certifications
Rugged, secure and reliable I/O connector for multiple applications

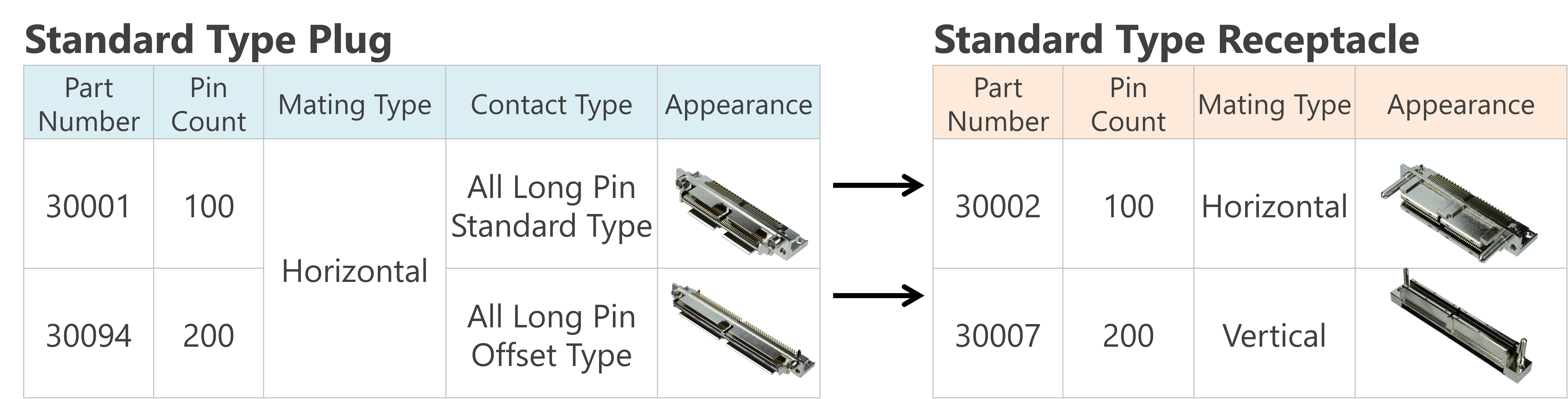

Standard Type Plug Standard Type Receptacle
| Part Number | Pin Count | Mating Type | Contact Type | Appearance | Part Number | Pin Count | Mating Type | Appearance | |
| 30001 | 100 |
Horizontal |
All Long Pin Standard Type |  |
→ | 30002 | 100 | Horizontal |  |
| 30094 | 200 | All Long Pin Offset Type |  |
→ | 30007 | 200 | Vertical |  |
Durable up to 5,000 mating cycles

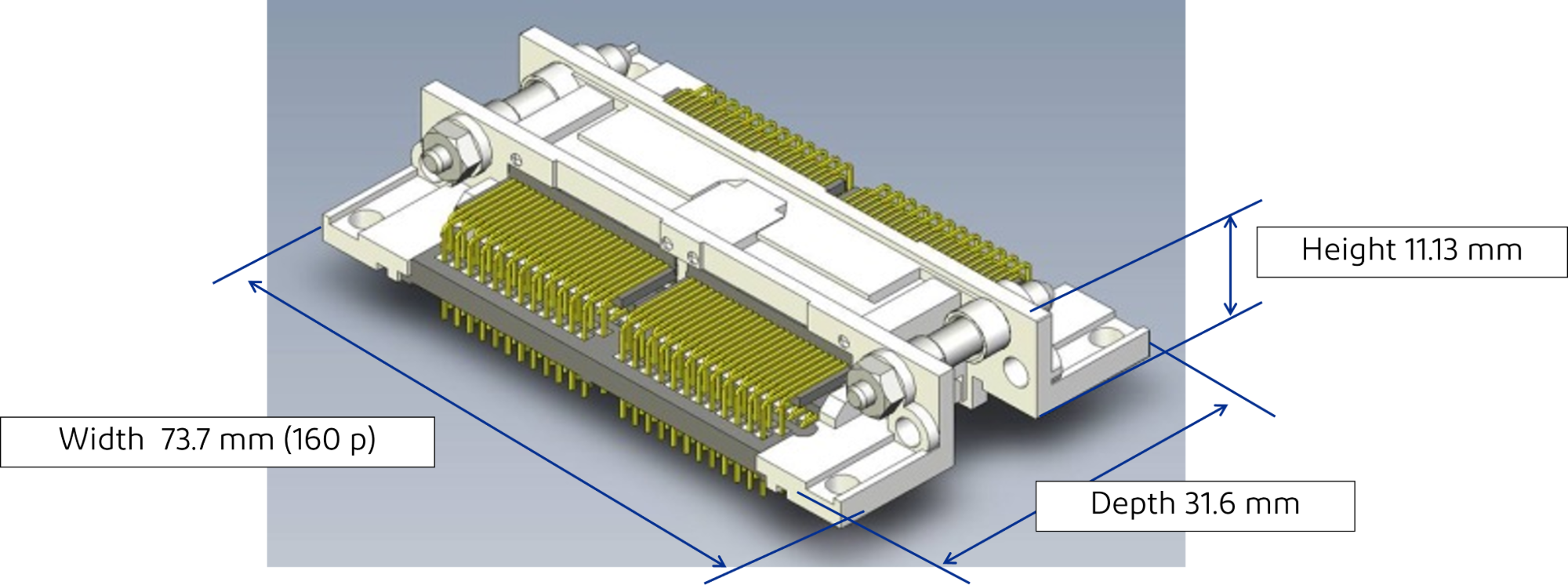

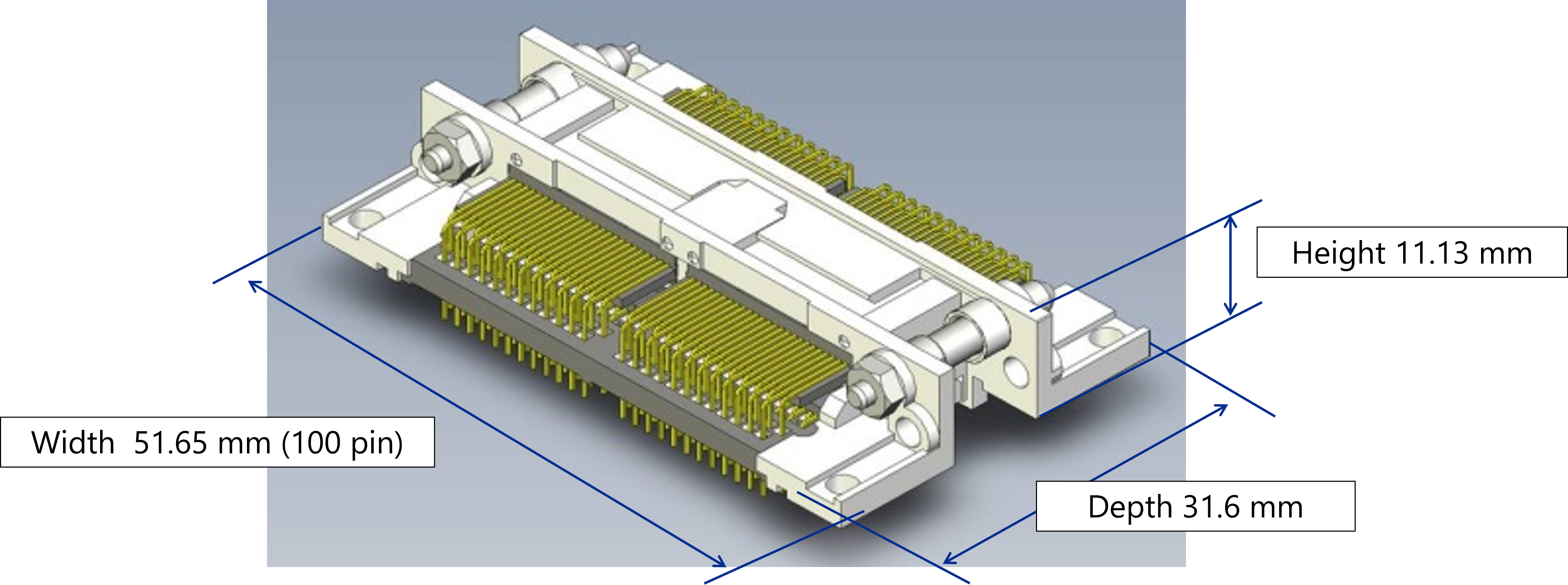

Horizontal Plug – Horizontal Receptacle pair
Part Number

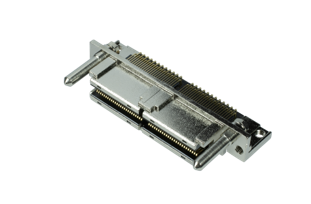

Plug 30001 (100 pin)

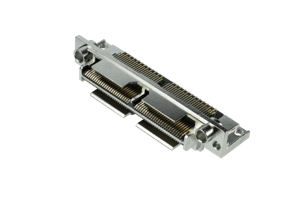

Receptacle 30002 (100 pin)
Wide selection of mating directions and circuit sizes

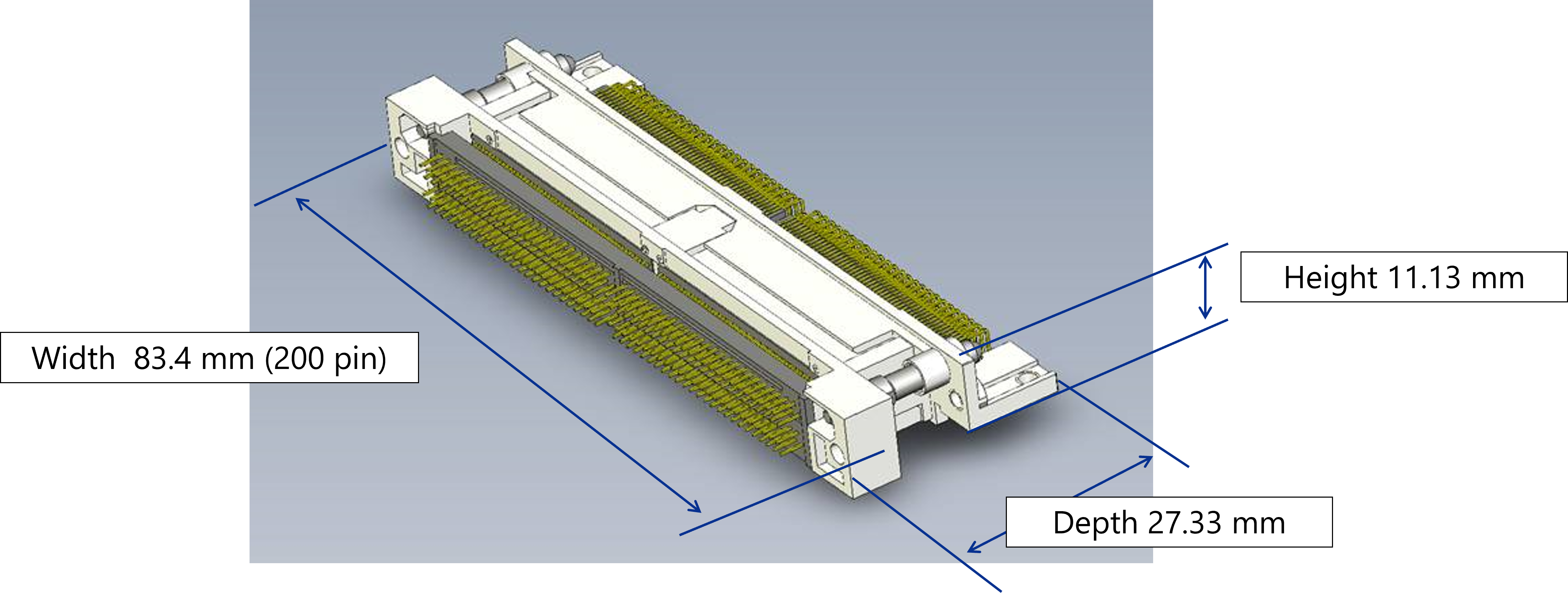

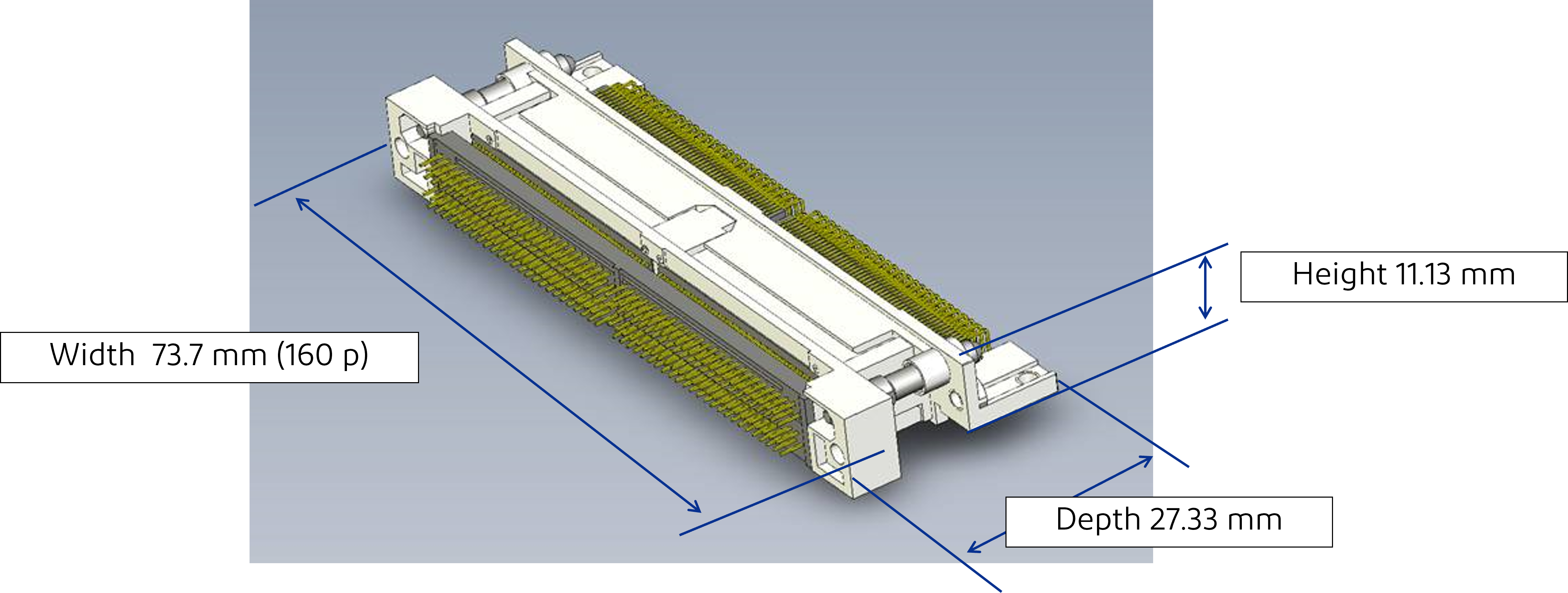

Horizontal Plug – Vertical Receptacle pair
Part Number
Plug 30094 (200 pin)

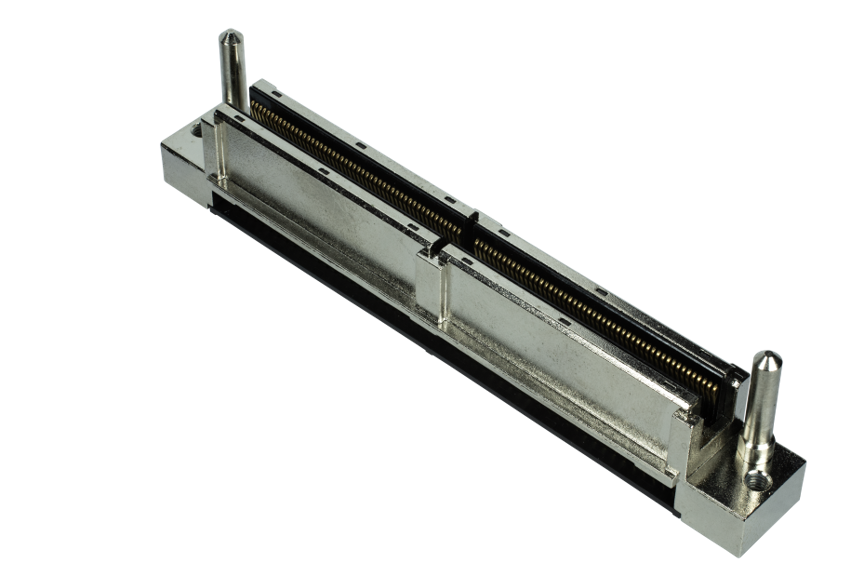

Receptacle 30007 (200 pin)
| Product Type |
Standard Type
|
| Contact Pitch |
0.635
(mm)
|
| Mating Direction |
Horizontal
Vertical
|
| Available Pin Counts |
100
200
|
| Width Formula |
36.0 - 96.10 mm (Plug / Receptacle)
|
| Shielded FPC / FFC |
No
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
| Other Features |
With screw
Without BOSS
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MINIDOCK (Standard) RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 200pin without screw | 30094-200T-01F | 21227.05 |
| MINIDOCK STANDARD receptacle right-angle 100pin without screw | 30002-100T-F | 18137 |
| MINIDOCK STANDARD receptacle vertical 200pin | 30007-200T-03F | 171240 |
| MINIDOCK STANDARD plug right-angle 100pin without screw | 30001-100T-F | 12591 |
OTHER MINIDOCK (Standard) PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MINIDOCK STANDARD plug right-angle 100pin with screw | 30001-100T-01F | 11590 |
| MINIDOCK STANDARD plug right-angle 200pin with screw | 30094-200T-F | 21427.05 |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-12AT-F | - |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-12AT-F | - |
| MINIDOCK receptacle free 80pin | 30030-080T-04F | 13160 |
| MINIDOCK plug 160pin | 30033-160T-F | 26790.7 |
MINIDOCK (Standard) Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK STANDARD plug right-angle 240pin with screw | 30001-240T-02F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 240pin with screw | 30002-240T-01F | Contact us | |
| MINIDOCK receptacle free 80pin | 30030-080T-07F | 30030-080T-03F | footprint pattern, without boss, without screw |
| MINIDOCK receptacle slim 80pin | 30030-080T-18F | 30030-080T-03F | footprint pattern, without boss, without screw |
MINIDOCK (Standard) EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-01F | Contact us | |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-03F | Contact us | |
| MINIDOCK STANDARD plug right-angle 120pin | 30001-120T-F | Contact us | |
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-01F | Contact us | |
| MINIDOCK STANDARD plug right-angle 160pin | 30001-160T-F | Contact us | |
| MINIDOCK STANDARD plug right-angle 200pin | 30001-200T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin without screw | 30002-120T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 120pin | 30002-120T-F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-01F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-02F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 160pin | 30002-160T-F | Contact us | |
| MINIDOCK STANDARD receptacle right-angle 200pin | 30002-200T-01F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-100T-F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-120T-F | Contact us | |
| MINIDOCK STANDARD receptacle | 30007-240T-F | Contact us | |
| MINIDOCK STANDARD | 30011-***T-** | Contact us | |
| MINIDOCK STANDARD | 30020-***T-** | Contact us | |
| MINIDOCK STANDARD | 30024-***T-** | Contact us | |
| MINIDOCK STANDARD | 30025-***T-** | Contact us | |
| MINIDOCK STANDARD | 30031-***T-** | Contact us | |
| MINIDOCK STANDARD | 30032-***T-** | Contact us | |
| MINIDOCK STANDARD | 30040-***T-** | Contact us | |
| MINIDOCK STANDARD | 30041-***T-** | Contact us | |
| MINIDOCK STANDARD | 30052-***T-** | Contact us | |
| MINIDOCK STANDARD | 30053-***T-** | Contact us | |
| MINIDOCK STANDARD | 30058-***T-** | Contact us | |
| MINIDOCK STANDARD | 30060-***T-** | Contact us | |
| MINIDOCK STANDARD | 30061-***T-** | Contact us | |
| MINIDOCK STANDARD | 30062-***T-** | Contact us | |
| MINIDOCK STANDARD | 30064-***T-** | Contact us | |
| MINIDOCK STANDARD | 30078-***T-** | Contact us | |
| MINIDOCK STANDARD | 30083-***T-** | Contact us | |
| MINIDOCK STANDARD | 30A12-***T-** | Contact us | |
| MINIDOCK plug 160pin | 30059-160T-F | Contact us |
