MINIDOCK™ SLIM

MINIDOCK SLIM
Robust high-pin-count docking I/O connector

    Rugged, secure and reliable I/O connector for multiple applications

    Durable up to 5,000 mating cycles

    Wide selection of mating directions and circuit sizes
Contact Pitch:
0.635 (mm)
Mating Direction:
Horizontal Vertical
Available Pin Count:
80 160

Downloads

Rugged, secure and reliable I/O connector for multiple applications

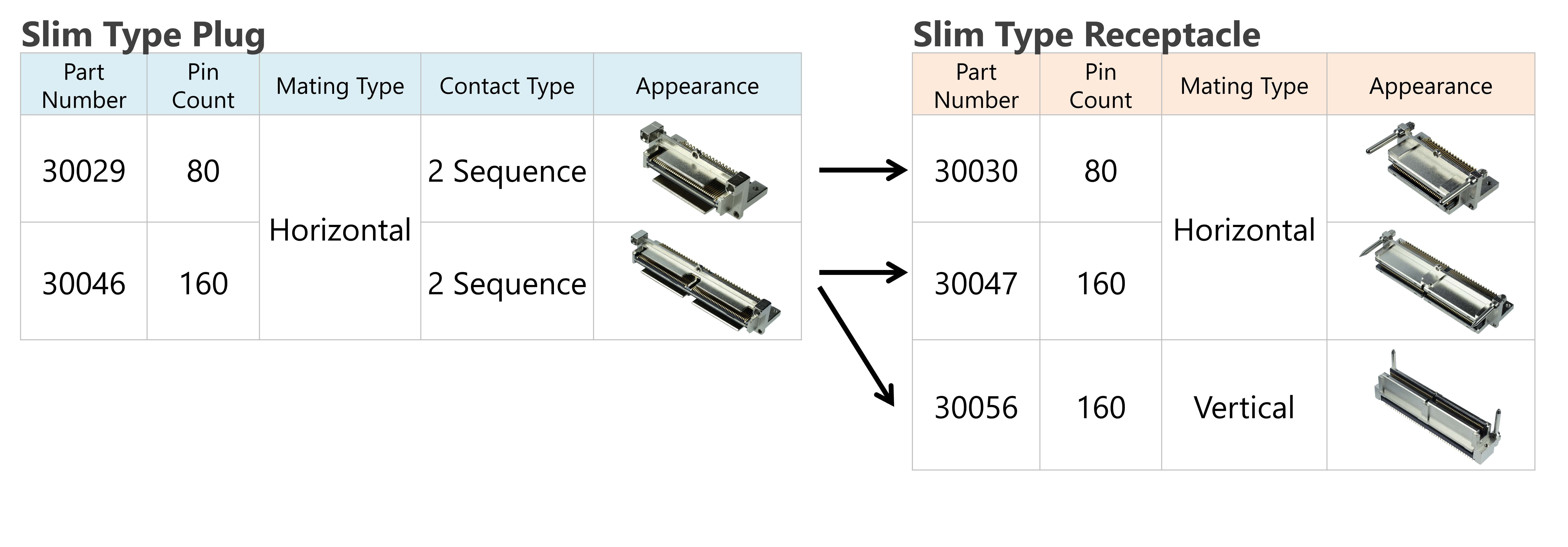

Slim Type Plug                                                                                                                                                          Slim Type Receptacle

Part Number Pin Count Mating Type Contact Type Appearance   Part Number Pin Count Mating Type Appearance

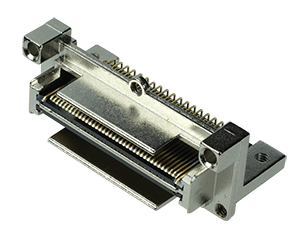

30029

80



Horizontal



2 Sequence

 FAB1_1 →

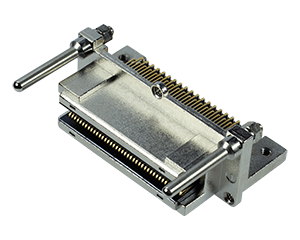

30030

80



Horizontal

 FAB1_3

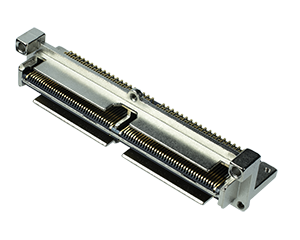

30046

160

2 Sequence

 FAB1_2





→
↘

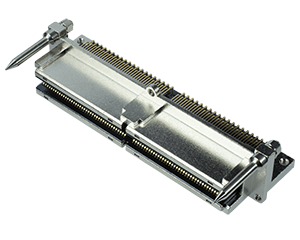

30047

160

 FAB1_4

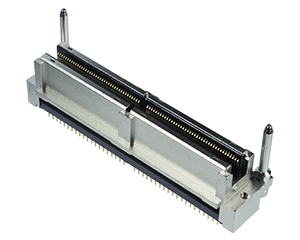

30056

160

Vertical

 FAB1_5



Durable up to 5,000 mating cycles

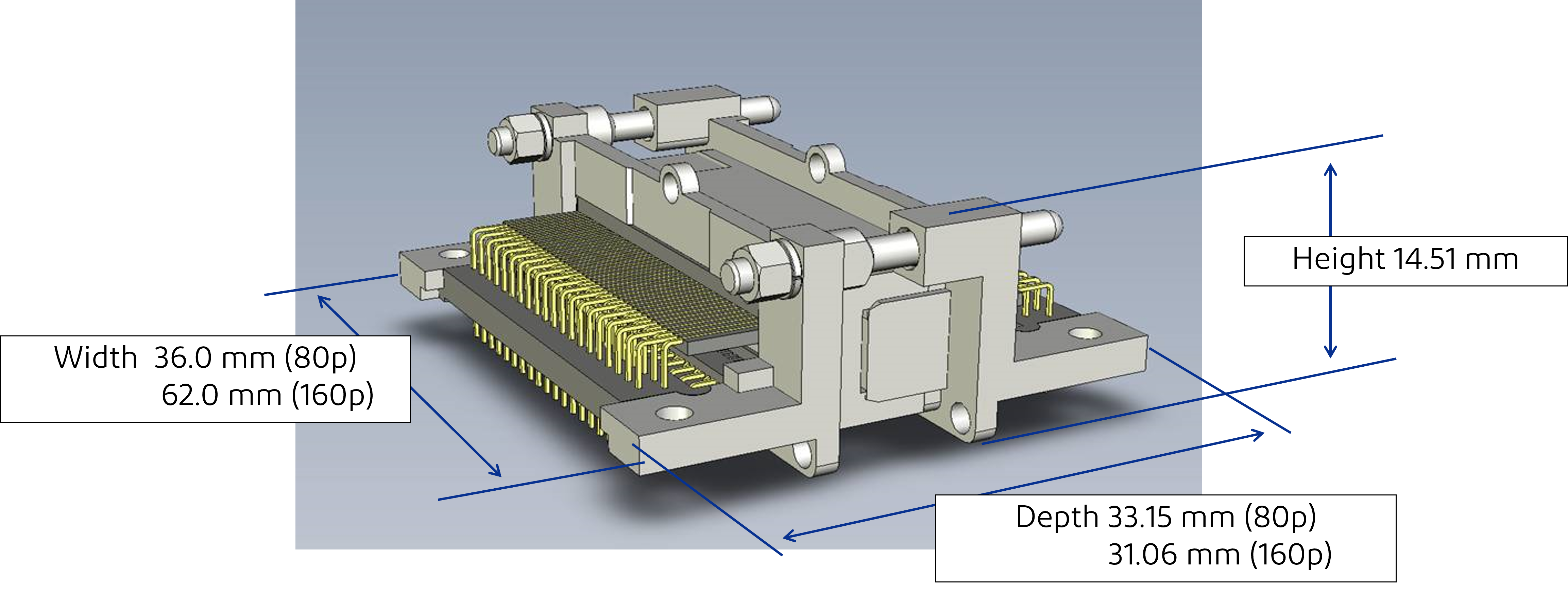

Right Angle Plug – Right Angle Receptacle pair
Part Number
Plug               30029 (80 pin), 30046 (160 pin)
Receptacle    30030 (80 pin), 30047 (160 pin)

FAB2



Wide selection of mating directions and circuit sizes

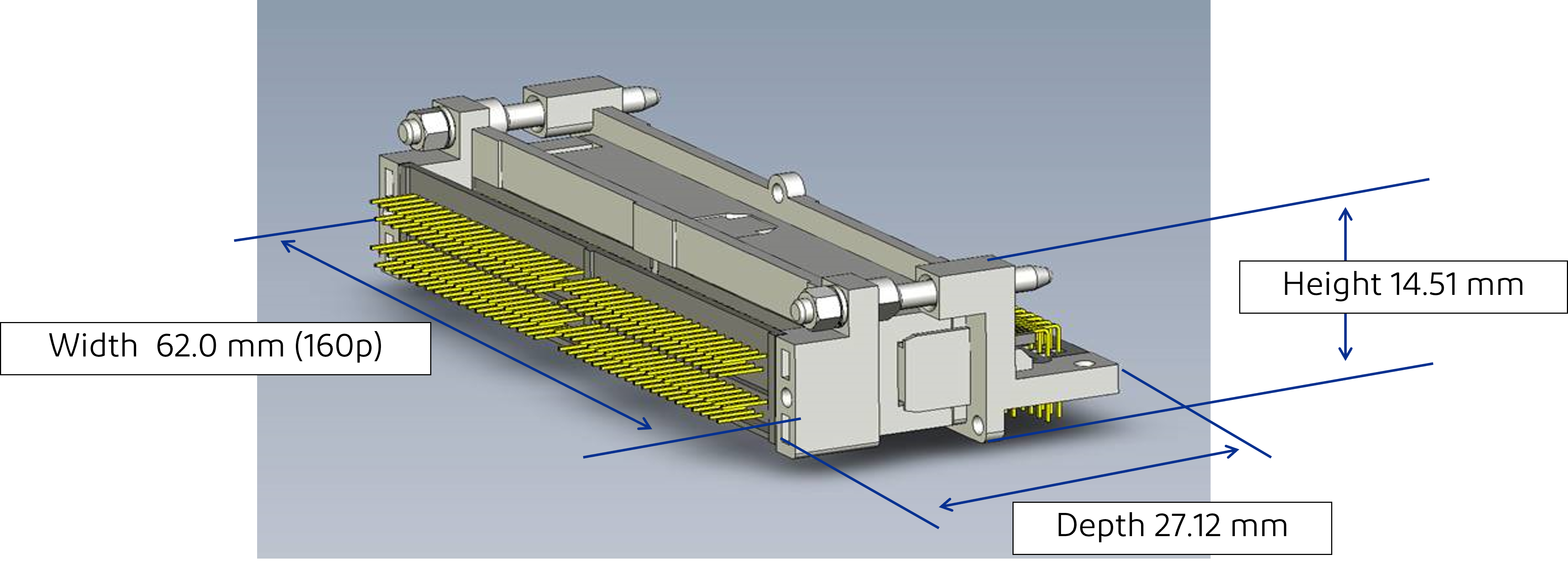

Right Angle Plug – Vertical Receptacle pair
Part Number
Plug               30046 (160 pin)
Receptacle    30056 (160 pin)

FAB3

Product Type
Slim Type
Contact Pitch
0.635 (mm)
Mating Direction
Horizontal Vertical
Available Pin Counts
80 160
Width Formula
36.0 - 96.10 mm (Plug / Receptacle)
Shielded FPC / FFC
No
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
Other Features
With BOSS With screw

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MINIDOCK (Slim) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MINIDOCK SLIM plug right-angle 80pin without boss without screw  30029-080T-01F 10090
MINIDOCK SLIM plug right-angle 160pin with screw, contact length L=5.36 30046-160T-F 17375.2
MINIDOCK SLIM receptacle right-angle 80pin without boss without screw  30030-080T-03F 13378
MINIDOCK SLIM receptacle right-angle 160pin without screw  30047-160T-01F 20800
MINIDOCK SLIM receptacle vertical 160pin with screw 30056-160T-F 23809.2



OTHER MINIDOCK (Slim) PART NUMBERS

Part Number Description Part Number Weight (mg)
MINIDOCK SLIM plug right-angle 80pin with boss with screw 30029-080T-02F 10310
MINIDOCK SLIM plug right-angle 80pin with boss without screw 30029-080T-03F 10360
MINIDOCK SLIM plug right-angle 80pin without boss with screw 30029-080T-F 10310
MINIDOCK SLIM plug right-angle 160pin without screw 30046-160T-01F 15840
MINIDOCK SLIM plug right-angle 160pin without screw, contact length L=4.66 30046-160T-03F 18985.2
MINIDOCK SLIM receptacle right-angle 80pin without boss with screw 30030-080T-01F 13410
MINIDOCK SLIM receptacle right-angle 80pin with boss with screw 30030-080T-19F 13958
MINIDOCK SLIM receptacle right-angle 160pin with screw 30047-160T-04F 61515.6
MINIDOCK SLIM receptacle vertical 160pin without screw 30056-160T-01F 20780
MINIDOCK SLIM plug right-angle 160pin 30046-160T-02F 15840
MINIDOCK SLIM receptacle right-angle 160pin 30047-160T-F 61515.6

MINIDOCK (Slim) Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
MINIDOCK receptacle free 80pin 30030-080T-07F 30030-080T-03F footprint pattern, without boss, without screw
MINIDOCK receptacle slim 80pin 30030-080T-18F 30030-080T-03F footprint pattern, without boss, without screw



MINIDOCK (Slim) EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
MINIDOCK SLIM plug right-angle 160pin 30057-160T-F Contact us 　
MINIDOCK SLIM plug right-angle 160pin 30059-160T-01F Contact us 　
MINIDOCK SLIM plug right-angle 158pin 30095-158T-F Contact us 　
MINIDOCK plug 160pin 30059-160T-F Contact us
