CABLINE®-VS

CABLINE-VS Product Image
VESA standard connector, Suitable for high-data-rate transfer (32 Gbps/lane), Mechanical locking bar, 0.5 mm pitch, Horizontal mating type micro-coaxial connector

    High-data-rate transfer, ideal for 32 Gbps/lane applications

    Mechanical locking bar prevents incomplete mating and back-out/unmating

    Multiple connector options with I-PEX VS series
Contact Pitch:
0.5 (mm)
Mating Direction:
Horizontal
Mated Height:
1.1 max. (mm)
Available Pin Count:
20 30 40 50
Micro-Coaxial Cable:
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.1 A AC/DC [AWG 44] per contact/up to 50 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 50 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 10 contacts 1.0 A AC/DC [AWG 34] per contact/up to 6 contacts 1.0 A AC/DC [AWG 32] per contact/up to 6 contacts

Downloads

High-data-rate transfer, ideal for 32 Gbps/lane applications

Measurement results

Connector : CABLINE-VS 40P
Cable : Micro-coaxial cable
AWG #40, 45 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-VS FAB1 ALL



Mechanical locking bar prevents incomplete mating and back-out/unmating
CABLINE-VS_FAB2-1_ALLMate
CABLINE-VS_FAB2-2_ALL Locked
 CABLINE-VS_FAB2-3_ALL

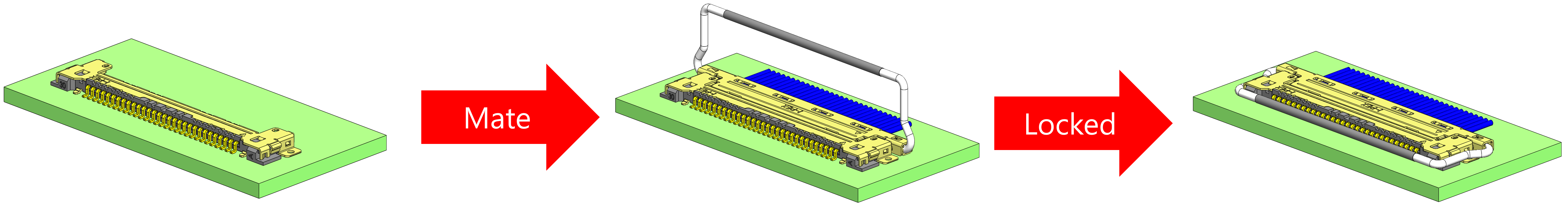

Mechanical locking bar can be locked only when plug is fully mated to receptacle.

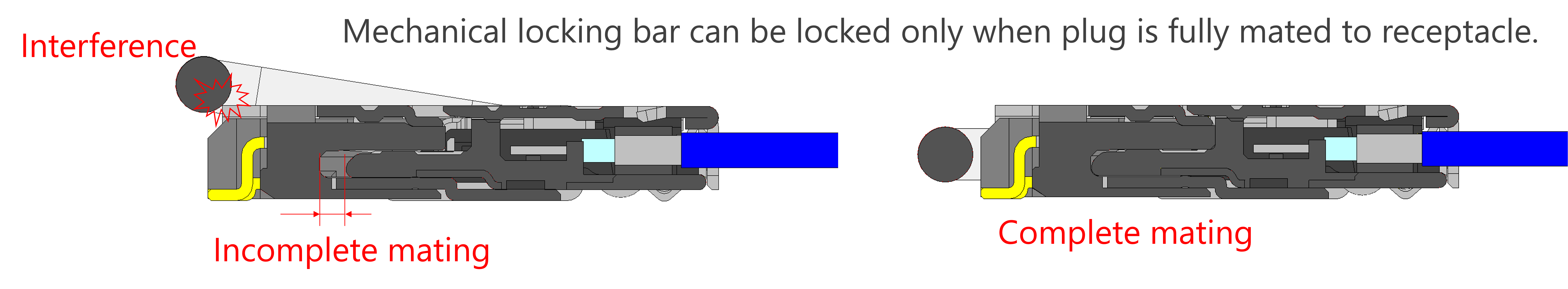

 Interference

incomplete mating
complete mating



Multiple connector options with I-PEX VS series



I-PEX VS series (0.5 mm pitch, horizontal mating type)
CABLINE-VS, VS II receptacles and EVAFLEX® 5-VS can be mounted to the same PCB layout.
 CABLINE-VS_FAB3-2.jpg CABLINE-VS_FAB3-1_ALL CABLINE-VS_FAB3-4.jpg

CABLINE-VS II receptacle
CABLINE-VS receptacle
EVAFLEX 5-VS
CABLINE-VS Receptacle:
Has #1 share in the Notebook PC panel connector market as VESA standard connector.
 CABLINE-VS_FAB3-5.jpg CABLINE-VS_FAB3-2_ALL CABLINE-VS_FAB3-7.jpg

CABLINE-VS II plug micro-coaxial
CABLINE-VS IIF plug shielded FPC
CABLINE-VS
plug
micro-coaxial
CABLINE-VSF
plug
shielded/non-shielded FPC
EVAFLEX 5-VS
Shielded/Non-shielded
FPC/FFC



Transmission Speed (Reference Only) 20 Gbps/Lane NRZ
Contact Pitch
0.5 (mm)
Mating Direction
Horizontal
Mated Height
1.1 max. (mm)
Available Pin Counts
20 30 40 50
Depth
5.8 (mm)
Width Formula
7.55 + (0.5 x pin count)(mm)
Micro-Coaxial Cable
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Discrete Cable
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.1 A AC/DC [AWG 44] per contact/up to 50 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 50 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 10 contacts 1.0 A AC/DC [AWG 34] per contact/up to 6 contacts 1.0 A AC/DC [AWG 32] per contact/up to 6 contacts
Applicable Standards (Reference Only)
USB4 Gen3 (20 Gbps/lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards Thunderbolt 4 (20 Gbps/Lane）
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Automotive Standards LV214 (50P tested. PG17 Dynamic Loading evaluation passed)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



DIAGRAMS_CABLINE-VS



CABLINE-VS RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS plug cable assembly 20pin 20453-220T-03 156.425
CABLINE-VS plug cable assembly 30pin 20453-230T-03 209.764
CABLINE-VS plug cable assembly 40pin 20453-240T-03 259.32
CABLINE-VS plug cable assembly 50pin 20453-250T-03S 314.562
CABLINE-VS plug housing 20pin 20454-220T 54
CABLINE-VS plug housing 30pin 20454-230T 76.907
CABLINE-VS plug housing 40pin 20454-240T 98
CABLINE-VS plug housing 50pin 20454-250T-01 127
CABLINE-VS plug shell 20pin 2574-0202 45
CABLINE-VS plug shell 30pin 2574-0302 63.799
CABLINE-VS plug shell 40pin 2574-0402 81.32
CABLINE-VS plug shell 50pin 2574-0502 95
CABLINE-VS plug pull bar 20pin 2576-120-00 57.425
CABLINE-VS plug pull bar 30pin 2576-130-00 69.058
CABLINE-VS plug pull bar 40pin 2576-140-00 80
CABLINE-VS plug pull bar 50pin 2576-150-00 92.562
CABLINE-VS receptacle 20pin 20455-A20E-76 116.34
CABLINE-VS receptacle 30pin 20455-030E-76 148.718
CABLINE-VS receptacle 40pin 20455-040E-76 183.771
CABLINE-VS receptacle 50pin 20455-050E-76 218.824



CABLINE-VS SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS harness 30pin micro-coaxial 40AWG L=100mm 1-N 82189-100B-02-D -
CABLINE-VS harness 30pin micro-coaxial 40AWG L=200mm 1-N 81421-100B-02-D 2636
CABLINE-VS harness 30pin micro-coaxial 40AWG L=300mm 1-N 82289-100B-02-D -
CABLINE-VS harness 40pin micro-coaxial 40AWG L=100mm 1-N 82190-100B-02-D -
CABLINE-VS harness 40pin micro-coaxial 40AWG L=200mm 1-N 81422-100B-02-D 3556
CABLINE-VS harness 40pin micro-coaxial 40AWG L=300mm 1-N 82290-100B-02-D -
CABLINE-VS harness 20pin micro-coaxial 40AWG L=200mm 1-N 82067-100B-02-D -
CABLINE-VS harness 50pin micro-coaxial 40AWG L=200mm 1-N 82450-100B-02-D -


Other Part Numbers

CABLINE-VS OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS cable assembly 20453-0**T-01 -
CABLINE-VS cable assembly 20453-0**T-11 -
CABLINE-VS cable assembly 20453-050T-01S -
CABLINE-VS cable assembly 20453-050T-11S -
CABLINE-VS cable assembly 20453-2**T-01 -
CABLINE-VS cable assembly 20453-2**T-11 -
CABLINE-VS plug cable assembly 50pin 20453-250T-01S -
CABLINE-VS plug cable assembly 50pin 20453-250T-11S -
CABLINE-VS plug housing 20pin 20454-020T 54.000
CABLINE-VS plug housing 30pin 20454-030T 76.907
CABLINE-VS plug housing 40pin 20454-040T 98.000
CABLINE-VS plug housing 50pin 20454-050T-01 127.000
CABLINE-VS plug housing 30pin 20454-130T 76.907
CABLINE-VS plug housing 40pin 20454-140T 98.000
CABLINE-VS receptacle 20pin 20455-020E-02 116.340
CABLINE-VS receptacle 20pin 20455-020E-12 116.340
CABLINE-VS receptacle 30pin 20455-030E-02 148.718
CABLINE-VS receptacle 30pin 20455-030E-12 148.718
CABLINE-VS receptacle 30pin 20455-030E-14 148.718
CABLINE-VS receptacle 30pin 20455-030E-66 148.718
CABLINE-VS receptacle 40pin 20455-040E-02 183.771
CABLINE-VS receptacle 40pin 20455-040E-12 183.771
CABLINE-VS receptacle 40pin 20455-040E-14 183.771
CABLINE-VS receptacle 40pin 20455-040E-66 183.771
CABLINE-VS receptacle 50pin 20455-050E-02 218.824
CABLINE-VS receptacle 50pin 20455-050E-12 218.824
CABLINE-VS receptacle 50pin 20455-050E-66 218.824
CABLINE-VS receptacle 20pin 20455-A20E-02 116.340
CABLINE-VS receptacle 20pin 20455-A20E-12 116.340
CABLINE-VS receptacle 20pin 20455-A20E-66 116.340
CABLINE-VS receptacle 20pin 20765-A20E-11 116.340
CABLINE-VS plug shell 20pin 2574-020 45.000
CABLINE-VS plug shell 30pin 2574-030 63.799
CABLINE-VS plug shell 40pin 2574-040 81.320
CABLINE-VS plug shell 50pin 2574-050 95.000
CABLINE-VS plug shell 20pin 2574-120 45.000
CABLINE-VS plug shell 20pin 2574-1202 45.000
CABLINE-VS plug shell 30pin 2574-130 63.799
CABLINE-VS plug shell 30pin 2574-1302 63.799
CABLINE-VS plug shell 40pin 2574-140 81.320
CABLINE-VS plug shell 40pin 2574-1402 81.320
CABLINE-VS plug shell 50pin 2574-150 95.000
CABLINE-VS plug shell 50pin 2574-1502 69.000
CABLINE-VS plug pull bar 20pin 2576-020-00 54.000
CABLINE-VS plug pull bar 30pin 2576-030-00 63.920
CABLINE-VS plug pull bar 40pin 2576-040-00 73.150
CABLINE-VS plug pull bar 50pin 2576-050-00 84.000
CABLINE-VS plug shell 30pin for inspection 2657-130 -
CABLINE-VS plug shell 40pin for inspection 2657-140 　

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-VS 20pin 91575-020B-001 84823.6

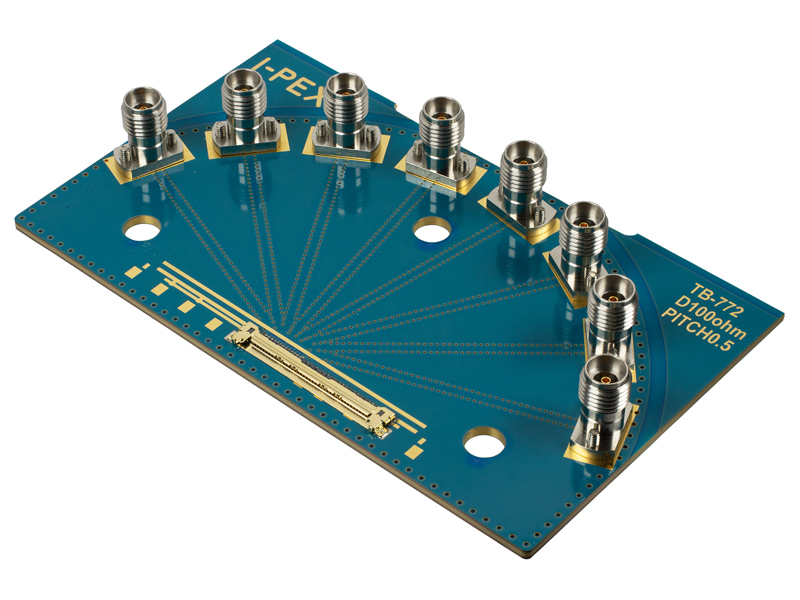

CABLINE-VS_SI_TB-772_Main_(C)

Main Board

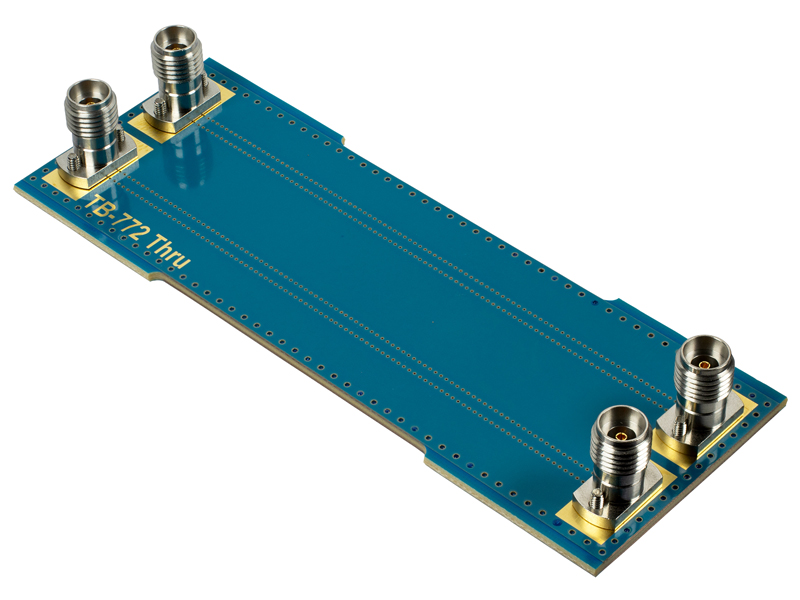

CABLINE-VS_SI_TB-772_Thru_(C)
Thru Board
SI Test Board for CABLINE-VS 30pin 91575-030B-001 84888
SI Test Board for CABLINE-VS 40pin 91575-040B-001 84956
SI Test Board for CABLINE-VS 50pin 91575-050B-001 85029.6

CABLINE-VS Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS cable assembly 20pin 20453-320T-13 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20453-330T-13 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 40pin 20453-340T-13 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20453-350T-13S 220453-250T-03S plating, with/without datum mark
CABLINE-VS plug housing 20pin 20454-320T 20454-220T plating
CABLINE-VS plug housing 30pin 20454-330T 20454-230T plating
CABLINE-VS plug housing 40pin 20454-340T 20454-240T plating
CABLINE-VS plug housing 50pin 20454-350T-01 20454-250T-01 plating
CABLINE-VS receptacle 30pin 20455-030E-02-S 20455-030E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-12-S 20455-030E-76 plating, MOQ
CABLINE-VS receptacle 30pin 20455-030E-66-S 20455-030E-76 MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-68 20455-030E-76 plating, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-76-S 20455-030E-76 MOQ
CABLINE-VS receptacle 30pin 20455-030E-78 20455-030E-76 plating
CABLINE-VS receptacle 30pin 20455-030E-89 20455-030E-76 plating, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-89-S 20455-030E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-99 20455-030E-76 plating
CABLINE-VS receptacle 30pin 20455-030E-99-S 20455-030E-76 plating, MOQ
CABLINE-VS receptacle 40pin 20455-040E-02-S 20455-040E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-12-S 20455-040E-76 plating, MOQ
CABLINE-VS receptacle 40pin 20455-040E-66-S 20455-040E-76 MOQ, datum mark
CABLINE-VS receptacle 40pin 20455-040E-68 20455-040E-76 plating, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-76-S 20455-040E-76 MOQ
CABLINE-VS receptacle 40pin 20455-040E-78 20455-040E-76 plating
CABLINE-VS receptacle 40pin 20455-040E-89 20455-040E-76 plating, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-89-S 20455-040E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-99 20455-040E-76 plating
CABLINE-VS receptacle 40pin 20455-040E-99-S 20455-040E-76 plating, MOQ
CABLINE-VS receptacle 50pin 20455-050E-02-S 20455-050E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-12-S 20455-050E-76 plating, MOQ
CABLINE-VS receptacle 50pin 20455-050E-66-S 20455-050E-76 MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-68 20455-050E-76 plating, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-76-S 20455-050E-76 MOQ
CABLINE-VS receptacle 50pin 20455-050E-78 20455-050E-76 plating
CABLINE-VS receptacle 50pin 20455-050E-89 20455-050E-76 plating, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-89-S 20455-050E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-99 20455-050E-76 plating
CABLINE-VS receptacle 50pin 20455-050E-99-S 20455-050E-76 plating, MOQ
CABLINE-VS receptacle 20pin 20455-A20E-02-S 20455-A20E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-12-S 20455-A20E-76 plating, MOQ
CABLINE-VS receptacle 20pin 20455-A20E-22 20455-A20E-76 plating, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-66-S 20455-A20E-76 MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-76-S 20455-A20E-76 MOQ
CABLINE-VS receptacle 20pin 20455-A20E-89-S 20455-A20E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-99 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-99-S 20455-A20E-76 plating, MOQ
CABLINE-VS cable assembly 20pin 20704-020T-01 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-030T-01 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-040T-01 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 20pin 20704-020T-11 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-030T-11 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-040T-11 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20704-050T-01S 20453-250T-03S plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20704-050T-11S 20453-250T-03S plating, with/without datum mark
CABLINE-VS receptacle 20pin 20765-A20E-01 20455-A20E-76 plating, without datum mark
CABLINE-VS plug shell 20pin 2574-0203 2574-0202 plating
CABLINE-VS plug shell 30pin 2574-0303 2574-0302 plating
CABLINE-VS plug shell 40pin 2574-0403 2574-0402 plating
CABLINE-VS plug shell 50pin 2574-0503 2574-0502 plating
CABLINE-VS plug shell 20pin 2574-1203 2574-0202 with/without datum mark
CABLINE-VS plug shell 30pin 2574-1303 2574-0302 with/without datum mark
CABLINE-VS plug shell 40pin 2574-1403 2574-0402 with/without datum mark
CABLINE-VS plug shell 50pin 2574-1503 2574-0502 with/without datum mark
CABLINE-VS plug alignment cover 30pin 3273-0301 Contact us 　
CABLINE-VS plug alignment cover 40pin 3273-0401 Contact us 　
CABLINE-VS plug alignment cover 50pin 3273-0501 Contact us 　
CABLINE-VS plug lock bar for alignment cover 30pin 3274-0301 Contact us 　
CABLINE-VS plug lock bar for alignment cover 40pin 3274-0401 Contact us 　
CABLINE-VS plug lock bar for alignment cover 50pin 3274-0501 Contact us 　
CABLINE-VS shell 40pin 2699-040 2574-0402 shape
CABLINE-VS shell 40pin 2699-040L 2574-0402 shape
CABLINE-VS shell 40pin 2699-140 2574-0402 shape
CABLINE-VS shell 40pin 2699-140L 2574-0402 shape



CABLINE-VS EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS receptacle 20pin 20455-020E-66 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle 20pin 20455-020E-76 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle type 20pin 20765-020E-01 20455-A20E-76 shape, plating, without datum mark
CABLINE-VS receptacle type 20pin 20765-020E-11 20455-A20E-76 shape, plating
CABLINE-VS plug pull bar 20pin 2576-020 2576-120-00 MOQ, with insulation
CABLINE-VS plug pull bar 30pin 2576-030 2576-130-00 MOQ, with insulation
CABLINE-VS plug pull bar 40pin 2576-040 2576-140-00 MOQ, with insulation
CABLINE-VS plug pull bar 50pin 2576-050 2576-150-00 MOQ, with insulation
CABLINE-VS plug pull bar 20pin 2576-120 2576-120-00 MOQ
CABLINE-VS plug pull bar 30pin 2576-130 2576-130-00 MOQ
CABLINE-VS plug pull bar 40pin 2576-140 2576-140-00 MOQ
CABLINE-VS plug pull bar 50pin 2576-150 2576-150-00 MOQ
CABLINE-VS plug alignment cover 30pin 2658-030 Contact us 　
CABLINE-VS plug alignment cover 40pin 2658-040 Contact us
