CABLINE®-CA IIP PLUS

CABLINE-CA_IIP_PLUS
64 Gbps/lane PAM4, 0.4 mm 间距, 水平插拔款 双芯线 & 极细同轴线装配

  • 使用paddle card 技术，支持高速传输64 Gbps/通道PAM4

  • AWG#34双芯电缆适用于长距离传输
    还支持AWG#36和#38极细同轴电缆，可实现布线灵活性

  • 外形小巧，嵌合高度仅为1.14mm，非常适合空间受限的应用，采用全屏蔽ZenShield®技术

接点间距(mm):
0.400
Height:
1.30 Max (1.14 Nom.)
可提供Pin数:
60
极细同轴线(AWG):
#36 #38
Twinax Cable (AWG):
#34
嵌合类型:
水平

下载

  • 产品目录

  • 2D图面

  • 技术参数

  • 3D图面(IGES)

  • 3D图面(STEP)

  • Symbols(脚位图)和Footprints(封装图)

  • 测试报告

  • SI测试板

  • 操作手册

  • 包装标准

  • 认证

    • 使用paddle card 技术，支持高速传输64 Gbps/通道PAM4
    Offers high signal integrity by using a paddle card in the cable plug.
    Data rates and cross talk performance of existing CABLINE series products are optimized even further.
    CABLINE-CA_IIP_PLUS_FAB1-1.png CABLINE-CA_IIP_PLUS_FAB1-2.png CABLINE-CA_IIP_PLUS_FAB1-3.png

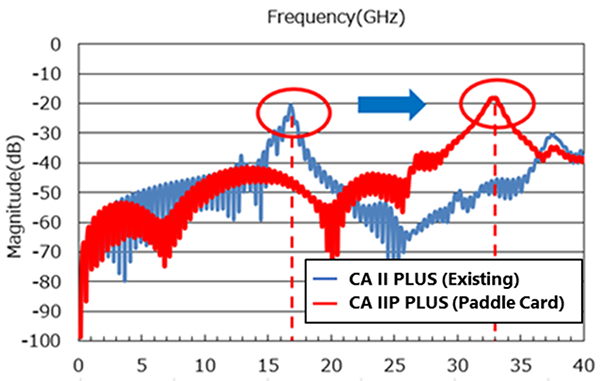

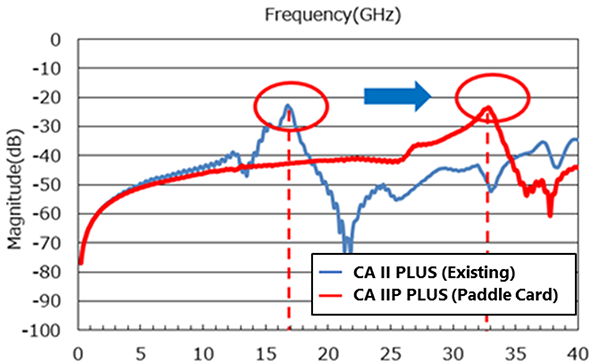

    Near End Cross Talk Far End Cross Talk

    Technical page of paddle card
    White papers : Paddle Card Technology for Micro Coax Cable Harness - Improving SI Performance



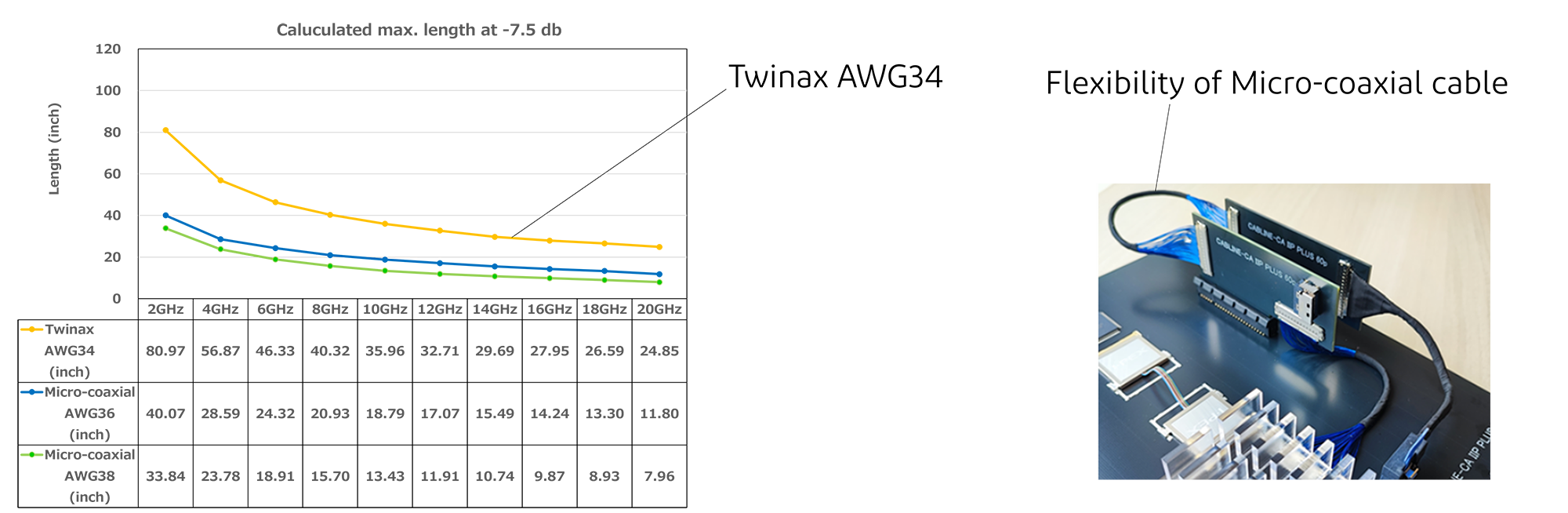

    AWG#34双芯电缆适用于长距离传输
    还支持AWG#36和#38极细同轴电缆，可实现布线灵活性



    外形小巧，嵌合高度仅为1.14mm，非常适合空间受限的应用，采用全屏蔽ZenShield®技术
    CABLINE-CA_IIP_PLUS_FAB3-1.png CABLINE-CA_IIP_PLUS_FAB3-2.png

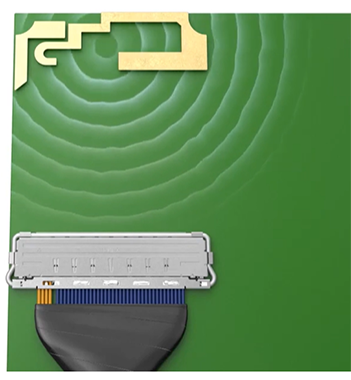

      EMC ZenShield® technology

    Contact pitch
    0.400 mm
    Height
    1.30 Max (1.14 Nom.)
    Width Formula
    30.95 mm
    Pin count
    60
    Current rating
    0.4A AC/DC ［Micro Coaxial: AWG#38］ 0.4A AC/DC ［Micro Coaxial: AWG#36］ 0.6A AC/DC ［TWINAX AWG#34］ 1.0A AC/DC ［Discrete: AWG#32］
    Applicable Standards (Reference Only)
    PCle Gen6 (Not a fully compatible product)
    Full shielding (ZenShield®)
    Yes
    About Contact Pitch 1.2mm (differential pair) *0.4mm (Signal Contacts)

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.

    CABLINE-CA IIP PLUS RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    RECEPTACLE 60 20790-060E-02

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Pinassignment Group Harness Length Part Number
    TWINAX CABLE, AWG#34 85 OHM A 200 mm 82065-600B-01
    TWINAX CABLE, AWG#34 85 OHM A 500 mm 82065-600B-02
    TWINAX CABLE, AWG#34 85 OHM B 200 mm 82065-600B-03
    TWINAX CABLE, AWG#34 85 OHM B 500 mm 82065-600B-04
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM A 200 mm 82065-400B-01
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM A 500 mm 82065-400B-02
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM B 200 mm 82065-400B-03
    MICRO COAXIAL CABLE, AWG#36 42.5 OHM B 500 mm 82065-400B-04
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM A 200 mm 82065-100B-01
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM A 500 mm 82065-100B-02
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM B 200 mm 82065-100B-03
    MICRO COAXIAL CABLE, AWG#38 42.5 OHM B 500 mm 82065-100B-04

    OTHER CABLINE-CA II PLUS PART NUMBERS

    SI Test Board with 2.92mm Adapter Part Number Harness Part Number
    SI Test Board for CABLINE-CA II PLUS 91623-060B-001 82065-*00B-01
    82065-*00B-02
    SI Test Board for CABLINE-CA II PLUS 91623-060B-002 82065-*00B-03
    82065-*00B-04
