AP-TSS10, AP-LT10

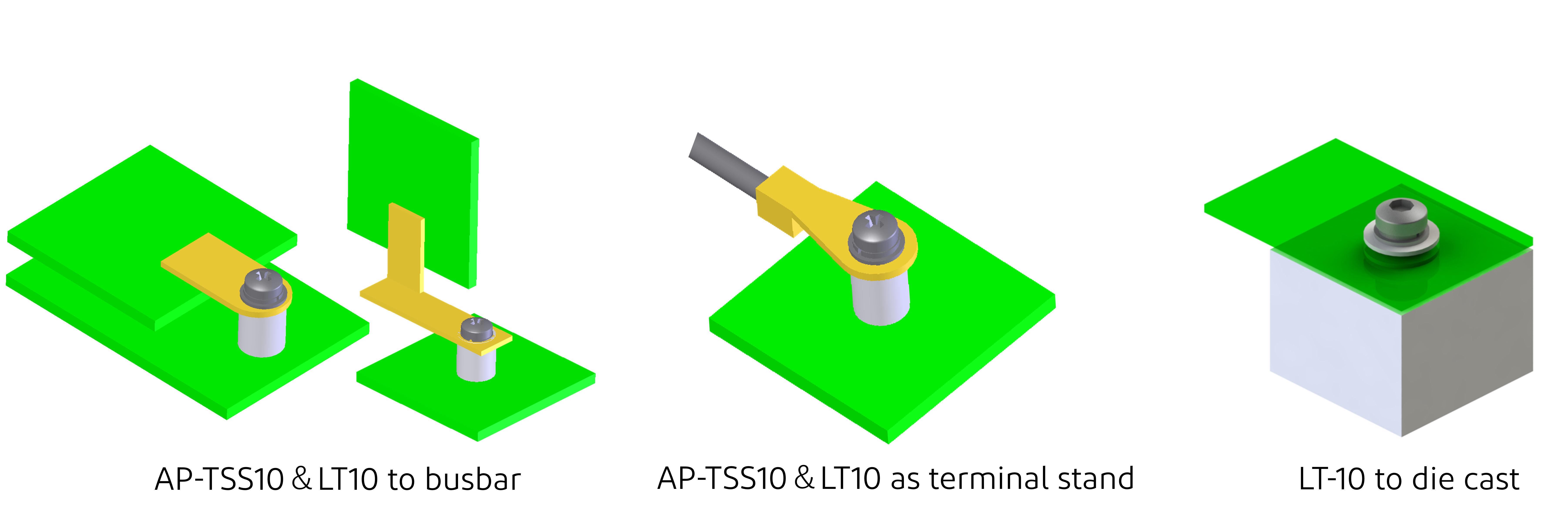

High current (32 A), high temperature (125 °C) Spacer/Power Terminal, PCB SMT Terminal, easily operate with SMT and M3 (8.00 mm) screws

  • High current (32 A), high temperature (125 °C) Spacer/Power Terminal, and PCB SMT Terminal

  • Reduced connector weight makes the second reflow with reverse mounting possible contributing to a flexible SMT design

  • Special size available upon request

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

    • High current (32 A), high temperature (125 °C) Spacer/Power Terminal, and PCB SMT Terminal

    Reduced connector weight makes the second reflow with reverse mounting possible contributing to a flexible SMT design

    Special size available upon request

    Current rating
    32A 20A 16A 3A 0.7A
    Mechanical lock
    No

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.



    AP SERIES RECOMMENDED PART NUMBER

    Part Number Description Part Number
    AP-TSS10 3782-0001
    AP-LT10 3571-0081-02T
