AP-10

AP-series
High-power supply terminal, high heat resistance board-to-board connection. Contribute to miniaturization of power electronics devices, height differences can be customized.

  • High current and temperature resistance, board to board power supply terminal

  • Contribute space saving design on PCB achieved by miniaturization of connector

  • Flexible board to board spacing

Mating Direction:
Vertical

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

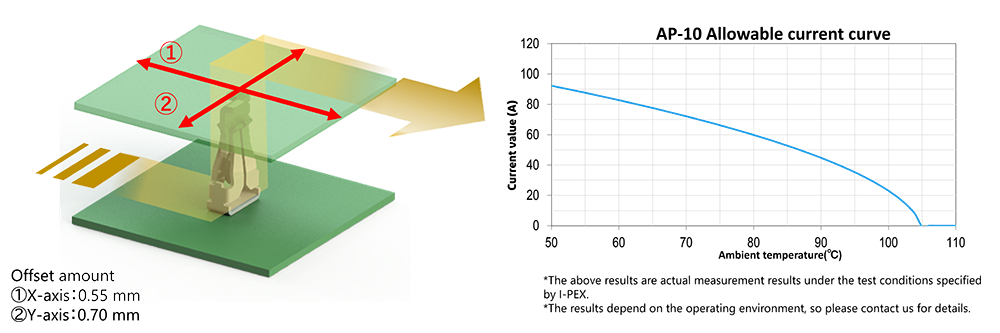

    • High current and temperature resistance, board to board power supply terminal
    AP-10 FAB1 E

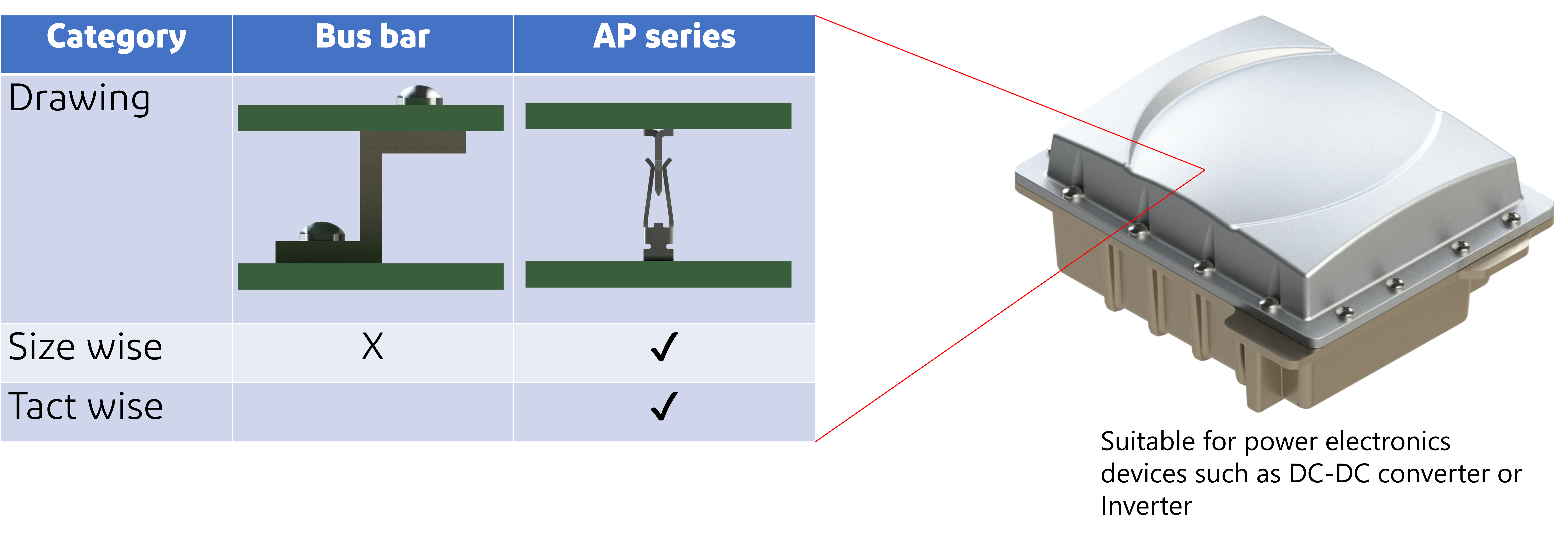

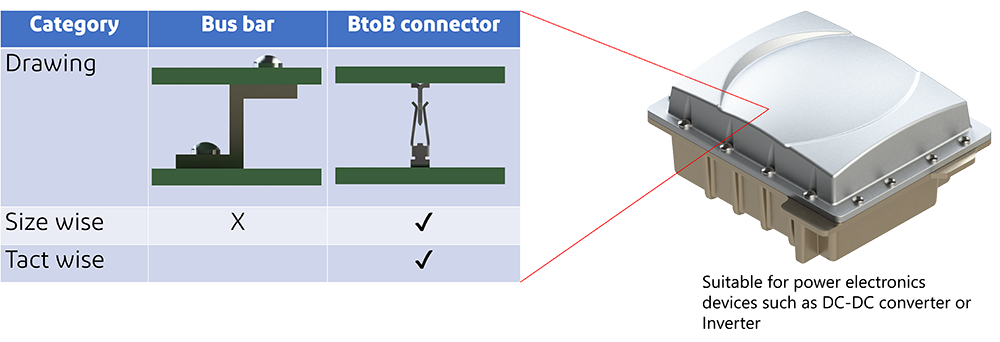

    Contribute space saving design on PCB achieved by miniaturization of connector
    AP-10 FAB2 E

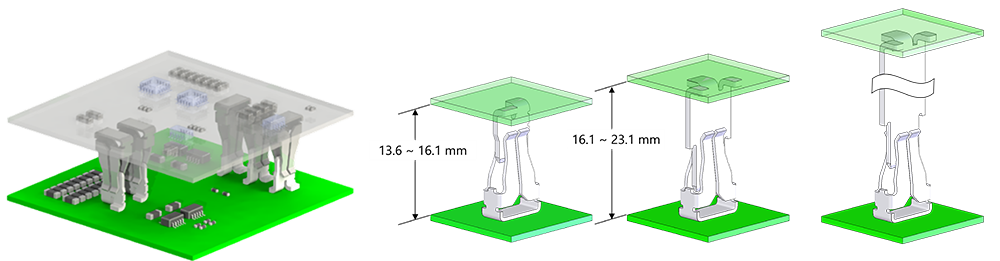

    Flexible board to board spacing



    AP-10_FAB3-2_all

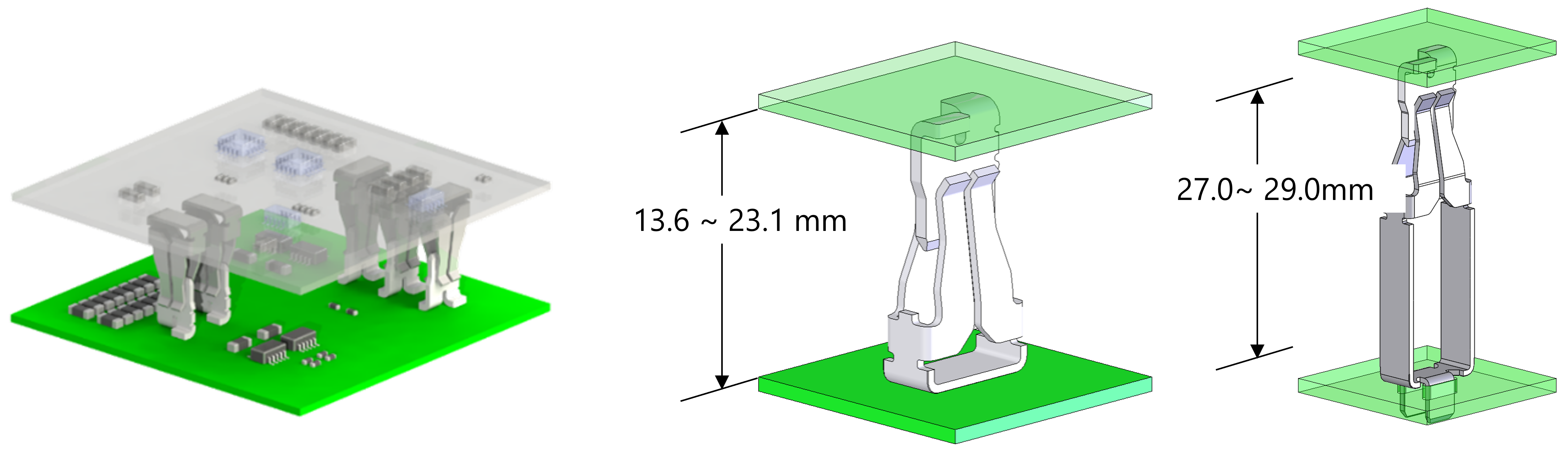

                            I-PEX offers AP-10 in multiple heights.

    AP-10_FAB3-1_all

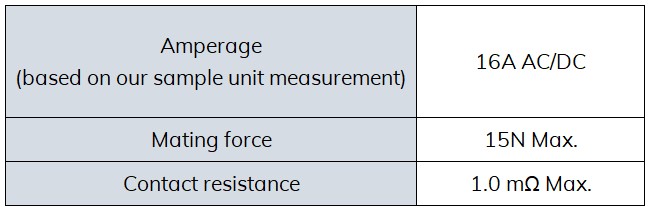

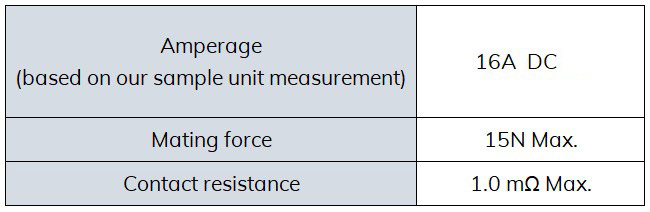

    Operating Temperature -40 - 105℃
    Mating Force 15N Max.
    Contact Resistance 1.0 mΩ Max.
    Mating Direction
    Vertical
    Current rating
    16A 3A 0.7A
    Mechanical lock
    No

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.



    AP-10 RECOMMENDED PART NUMBER

    Part Number Description Part Number
    AP-10 PLUG_H-7.5mm_TRAY 3531-0001-00T
    AP-10 PLUG_H-14.5mm_TRAY 3539-0001-45T
    AP-10 RECEPTACLE 3532-0001-00T
    Other Part Numbers

    OTHER AP-10 PART NUMBERS

    Part Number Description Part Number
    AP-10 RECEPTACLE WITH CAP 21022-001E
    AP-10 PLUG_H-14.5mm_EMBOSS 3539-001E-45E
