穿越转轴组件- CABLINE®连接器

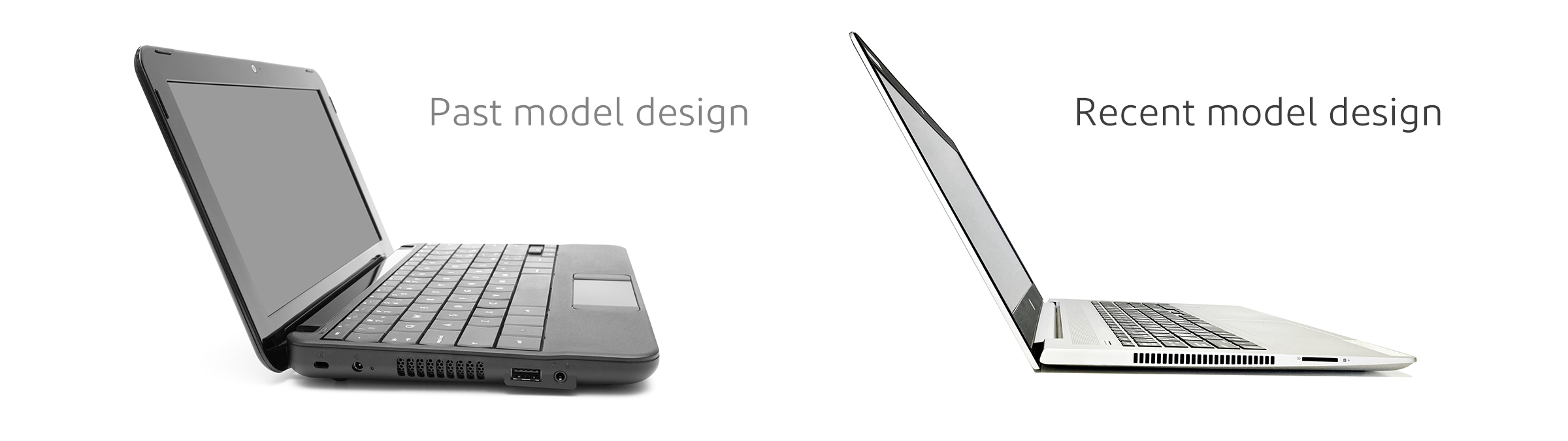

近年来，设备制造商越来越关注更小巧的设计，这就需要更多创新的想法来将组件安装在这些极小的空间里。




CABLINE®系列不仅能够传输高速信号，还可以在有限的空间内通过转轴组件进行连接。

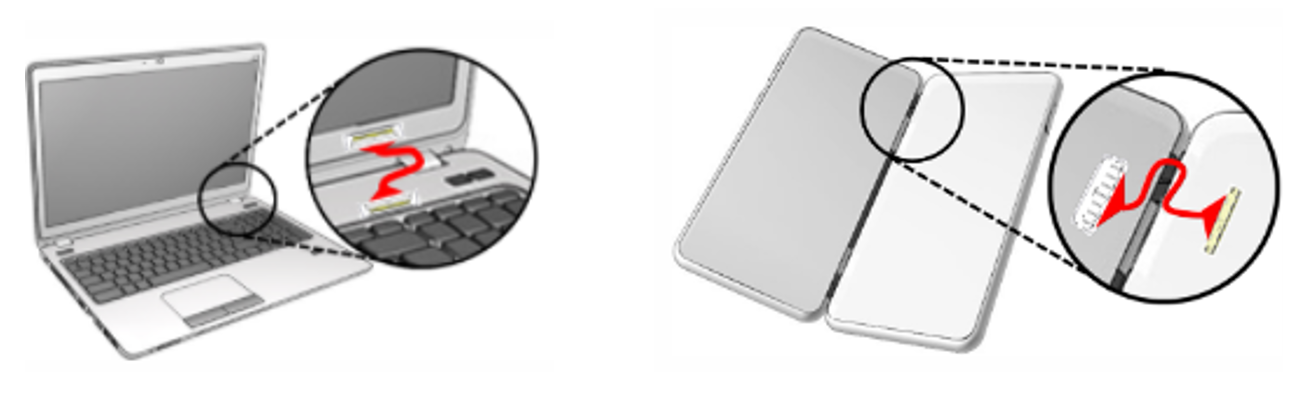

通过转轴元件传送高速信号



Pass-through
极细同轴线束的灵活性使之非常适合在狭窄的空间中的进行装配。

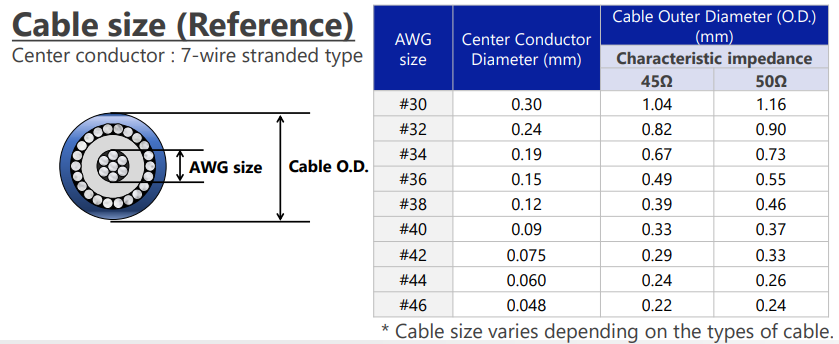

极细同轴电缆尺寸(参考)

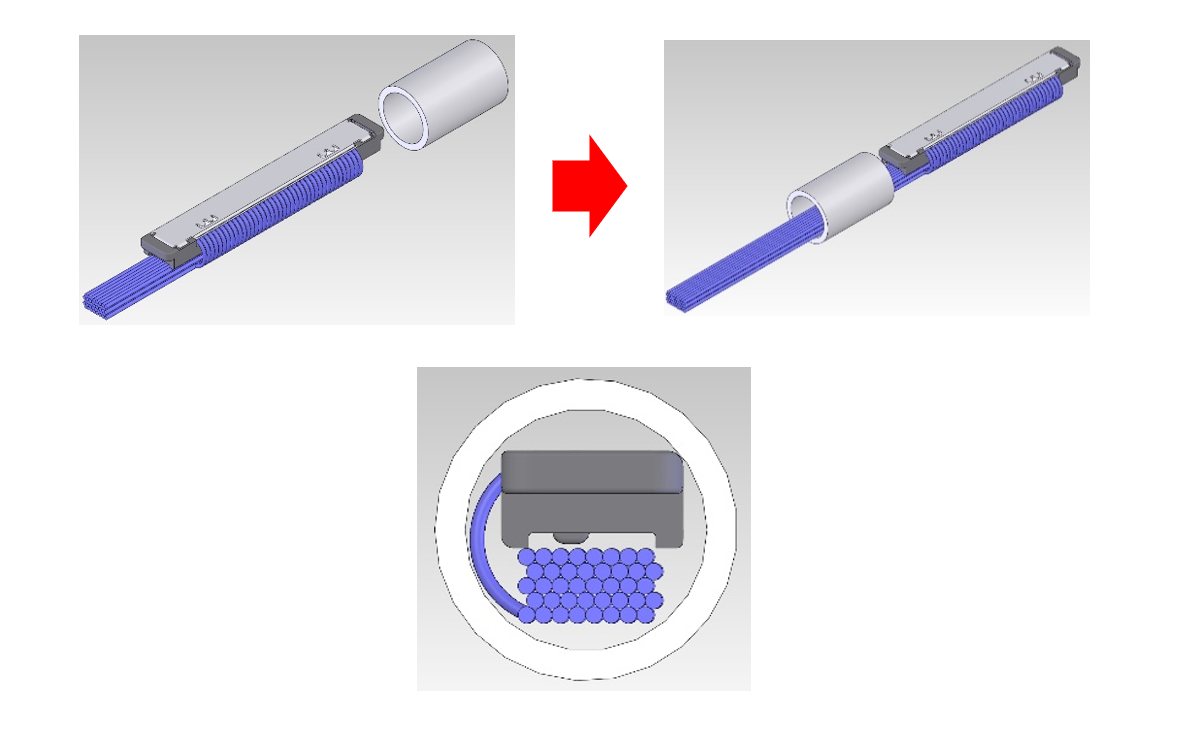

通过转轴组件:(示例)CABLINE®-SS线束

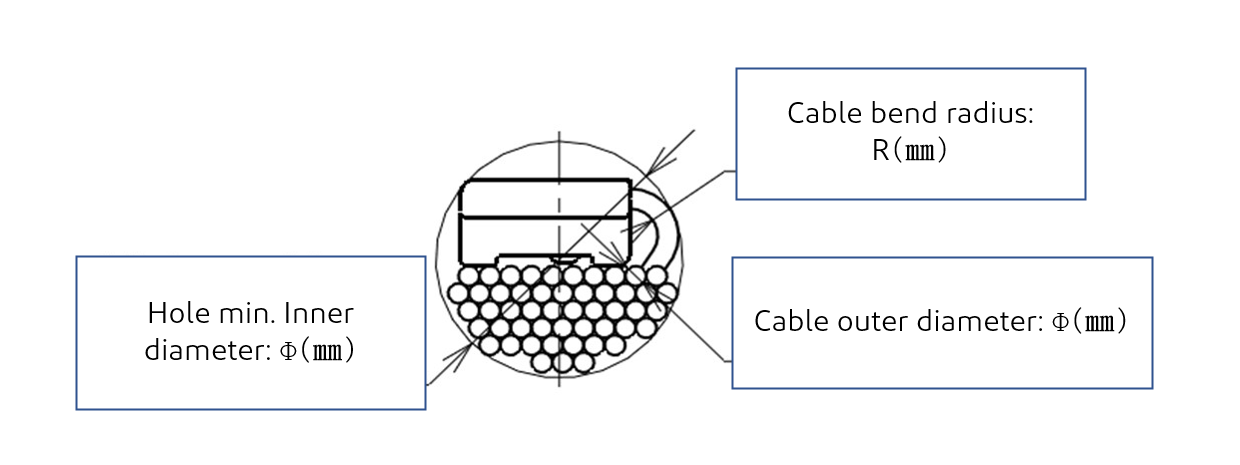

转轴组件截面

CABLINE®-SS公座线束通过转轴组件的仿真


CABLINE®系列通过转轴组件的详细仿真报告:

hinge simulation



Cable types  Center conductor size (AWG) #38 #40 #42 #44 #46
Impedance matching (ohm) 45 45 50 45 50 45 50 45 50
Jacket diameter (mm) 0.39 0.33 0.37 0.29 0.33 0.24 0.26 0.22 0.24
Report Micro-coaxial cable harness assembly types Minimum hinge inner diameter (mm)
download　 CABLINE®-UM plug
(0.4 mm pitch, vertical mating type)		  with bonding
 (Length: 1.0 mm MAX.)		 30P 6.16 6.10 6.14 6.06 6.10 6.01 6.03 - -
40P 6.16 6.10 6.14 6.06 6.10 6.01 6.03 - -
　download CABLINE®-SS plug
(0.4 mm pitch, vertical mating type)		  with bonding
 (Length: 1.5 mm MAX.)		 10P - 5.42 5.46 5.37 5.42 - - - -
14P - 5.42 5.46 5.37 5.42 - - - -
20P - 5.42 5.46 5.37 5.42 - - - -
30P - 5.42 5.46 5.37 5.42 - - - -
32P - 5.42 5.46 5.37 5.42 - - - -
40P - 5.42 5.46 5.37 5.42 - - - -
50P - 5.42 5.46 5.37 5.42 - - - -
 without bonding 10P - 3.95 4.00 3.91 3.95 - - - -
14P - 3.95 4.00 3.91 3.95 - - - -
20P - 3.95 4.00 3.91 3.95 - - - -
30P - 3.97 4.07 3.91 3.97 - - - -
32P - 3.97 4.09 3.91 3.97 - - - -
40P - 4.12 4.27 3.94 4.12 - - - -
50P - 4.19 4.39 4.03 4.19 - - - -
　download CABLINE®-UY plug
(0.35 mm pitch, vertical mating type)		  with bonding
 (Length: 1.5 mm MAX.)		  5P - - - 3.91 3.91 - - - -
 10P - - - 5.55 5.56 - - - -
 without bonding  5P - - - 3.91 3.91 - - - -
 10P - - - 4.15 4.21 - - - -
　download CABLINE®-UA II plug
(0.3 mm pitch, vertical mating type)		  with bonding
 (Length: 1.5 mm MIN.)		  26P - - - 3.96 - 3.91 3.93 3.89 3.91
 32P - - - 3.96 - 3.91 3.93 3.89 3.91
 40P - - - 3.96 - 3.91 3.93 3.89 3.91
 50P - - - 3.96 - 3.91 3.93 3.89 3.91
 without bonding  26P - - - 2.65 - 2.50 2.55 2.46 2.50
 32P - - - 2.76 - 2.55 2.64 2.49 2.55
 40P - - - 2.93 - 2.64 2.75 2.55 2.64
 50P - - - 3.11 - 2.77 2.91 2.67 2.77
　download CABLINE®-UX II plug
(0.25 mm pitch, vertical mating type)		  with bonding
 (Length: 1.5 mm MAX.)		  30P - - - - - 4.06 - 4.03 4.06
 34P - - - - - 4.06 - 4.03 4.06
 40P - - - - - 4.06 - 4.03 4.06
 50P - - - - - 4.06 - 4.03 4.06
 without bonding  30P - - - - - 2.61 - 2.58 2.61
 34P - - - - - 2.62 - 2.58 2.62
 40P - - - - - 2.66 - 2.59 2.66
 50P - - - - - 2.78 - 2.65 2.78
　download CABLINE®-CX II with cover plug
(0.25 mm pitch, horizontal mating type)		  with bonding
 (Length: 1.0 mm MIN.)		  40P - - - - - 7.35 - 7.33 7.35
CABLINE®-CX II without cover plug
(0.25 mm pitch, horizontal mating type)		  40P - - - - - 6.98 - 6.96 6.98
