EVAFLEX® 5-SE-G VT

EVAFLEX 5-SE-GVT image
One-handed auto-locking feature, high temperature resistance (125℃), high-speed, vertical mate, 0.5 mm pitch shielded FFC/FPC connector

    One-handed operational auto-lock design, ideal for hand or robotic assembly

    Designed for high-speed transmission with grounding contacts (4+ Gbps V-By-One)

    High-Heat and High-Durability Connectors for Automotive and Industrial Applications

*Refer to the "How to mate and unmate" video for handling.
Contact Pitch (mm):
0.5 mm
Height:
6.7 Max (6.6 Nom.)
Available Pin Count:
20 30 40 50 60
Mating Direction:
Vertical

Downloads

One-handed operational auto-lock design, ideal for hand or robotic assembly
EVAFLEX 5-SE-G VT FAB1 E

Designed for high-speed transmission with grounding contacts (4+ Gbps V-By-One)
EVAFLEX 5-SE-G VT FAB2 E

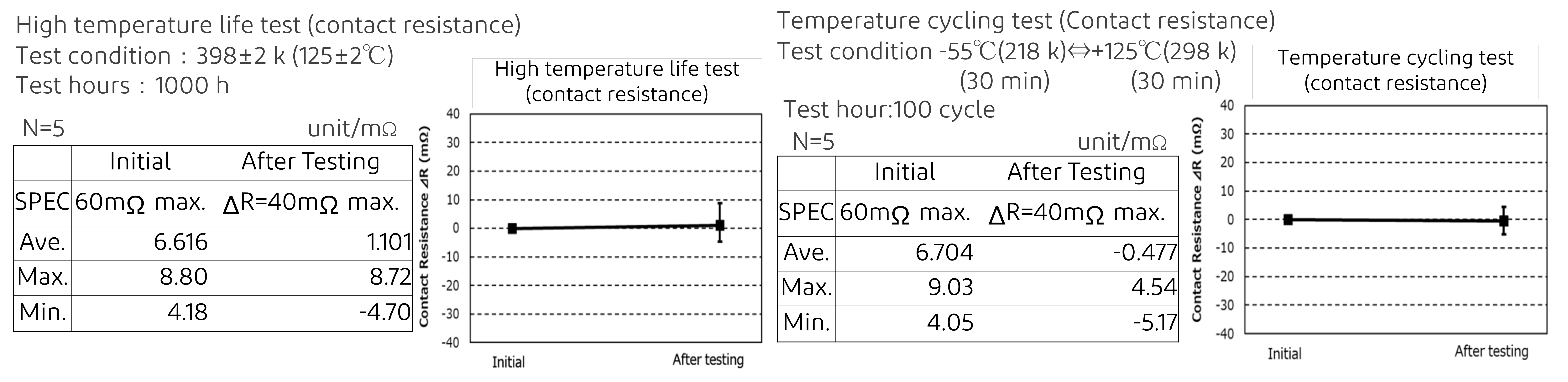

High-Heat and High-Durability Connectors for Automotive and Industrial Applications

It is a capable of delivering stable performance even under harsh environmental conditions and supports a wide range of applications.

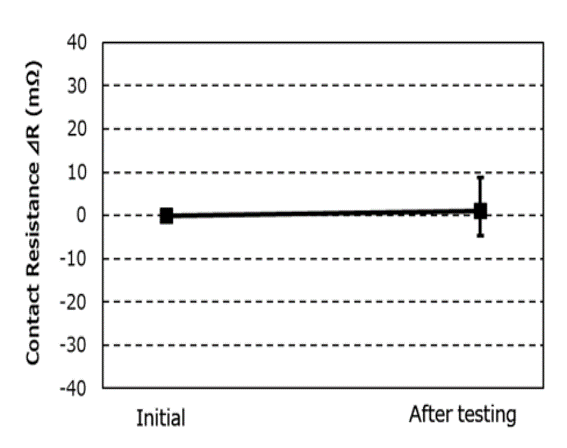

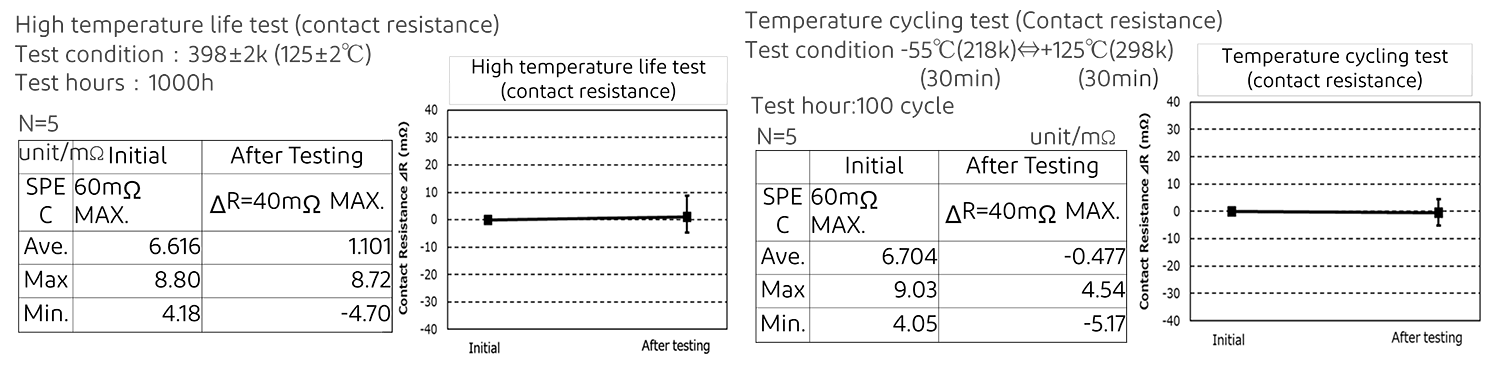

High temperature life test (contact resistance)
Test condition：398±2k (125±2℃)
Test hours：1000h
N=5, unit/mΩ

EVAFLEX_5-SE-G_VT_FAB3_1
EVAFLEX_5-SE-G_VT_FAB3_2
High temperature life test (contact resistance)

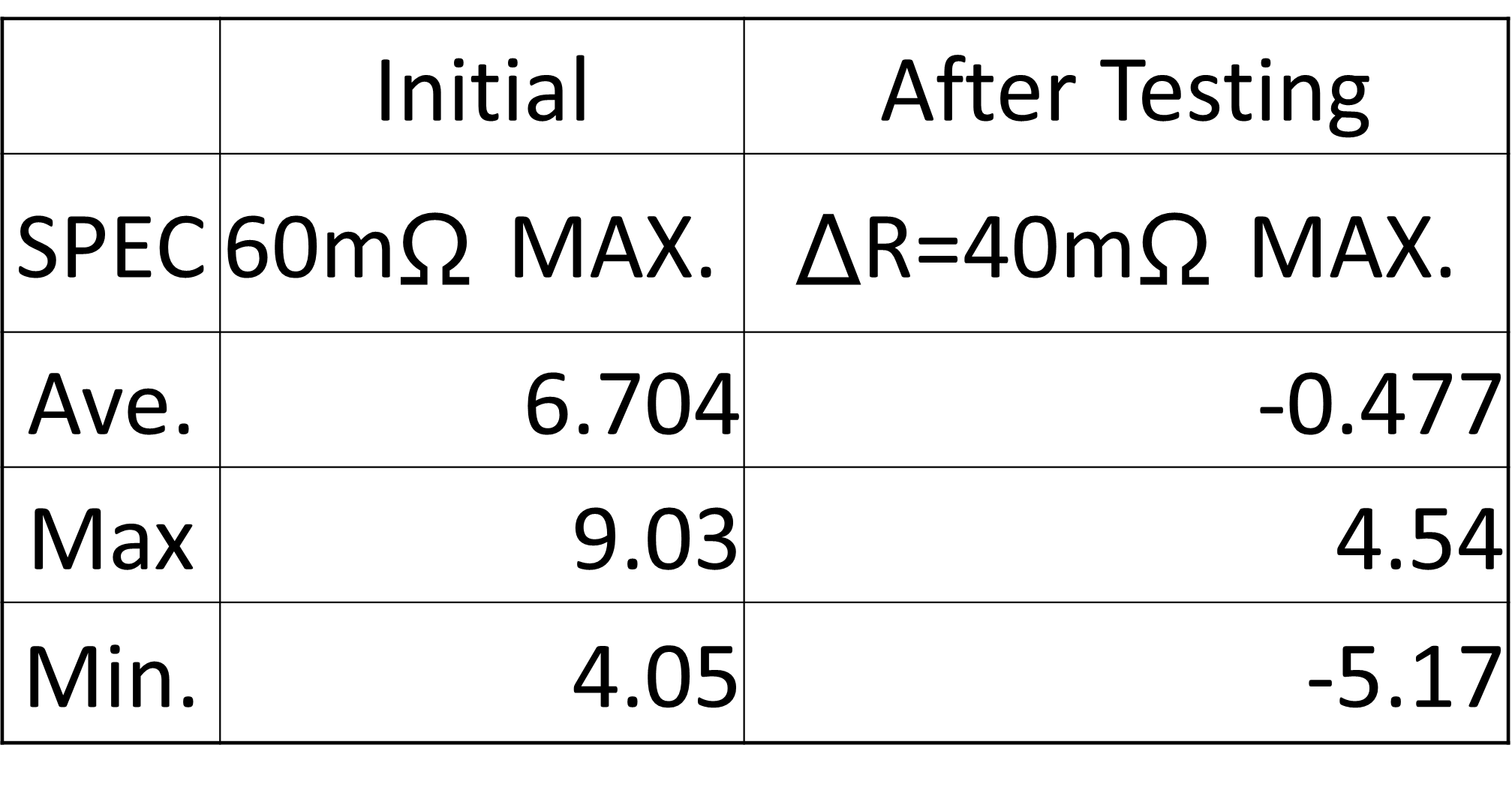

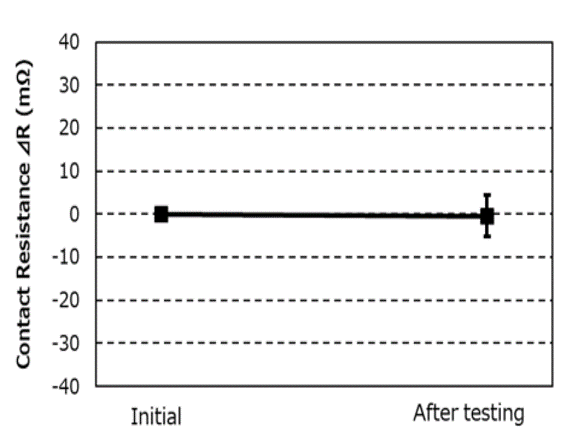

Temperature cycling test (Contact resistance)
Test condition -55℃(218k) (30min)⇔+125℃(298k)(30min)
 Test hour:100 cycle
N=5, unit/mΩ

EVAFLEX_5-SE-G_VT_FAB3_3
EVAFLEX_5-SE-G_VT_FAB3_4
Temperature cycling test (contact resistance)



Product Type
Auto-lock
Mating Direction
Vertical
Contact pitch
0.5 mm
Height
6.7 Max (6.6 Nom.)
Depth
3.5 mm
Width Formula
8.0+(0.5*?P) mm
Pin count
20 30 40 50 60
FPC/FFC Thickness
0.30
Current rating
0.35A / Pin
Applicable Standards (Reference Only)
eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) V-By-One HS 1.4 (4 Gbps)
Full shielding (ZenShield®)
No
Mechanical lock
Yes
Shielded FPC / FFC
Yes
Automotive Standards USCAR-2 (40P tested. 5.4.6 (Vibration and Mechanical Shock (V1)) evaluation passed)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



EVAFLEX 5-SE-G VT RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
EVAFLEX 5-SE-G VT 20pin 20799-020E-01 349.768 　
EVAFLEX 5-SE-G VT 30pin 20799-030E-01 434.228 　
EVAFLEX 5-SE-G VT 40pin 20799-040E-01 521.965 USCAR-2 (*)
EVAFLEX 5-SE-G VT 50pin 20799-050E-01 607.057 　
EVAFLEX 5-SE-G VT 60pin 20799-060E-01 689.155 　

Note : (*) 40P tested. 2.5.6 Vibration & Shock V1 evaluation passed.
Part Number Description Part Number Weight (mg)
SI Test Board for EVAFLEX5-SE-GVT 20pin 91573-020B-001 85323.8
SI Test Board for EVAFLEX5-SE-GVT 30pin 91573-030B-001 85490.8
SI Test Board for EVAFLEX5-SE-GVT 40pin 91573-040B-001 85673.42
SI Test Board for EVAFLEX5-SE-GVT 50pin 91573-050B-001 85848.68
SI Test Board for EVAFLEX5-SE-GVT 60pin 91573-060B-001 86029.7
