MINIFLEX® 5-BFN II LK
Mechanical lock, robust design with hold-down feature, low profile (height = 1.0 mm), 0.5 mm pitch, horizontal, backflip
High FPC retention force with additional mechanical lock
Unique actuator holder design prevents actuator drop-off

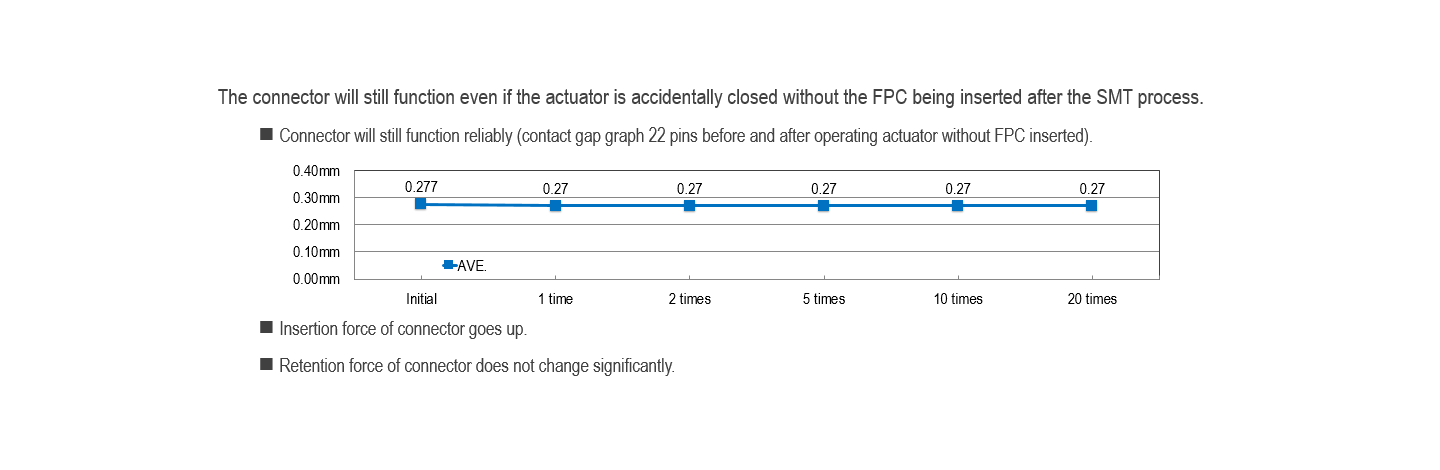

Usability for closing actuator without FPC
Contact Pitch (mm):
0.500
Height:
1.10 Max
(1.00 Nom.)
Available Pin Count:
4
6
8
10
12
14
16
18
20
24
Mating Direction:
Horizontal
Downloads
-
Catalog
-
2D Drawing
-
3D Models
-
STEP
-
-
IGES
-
-
-
Specs & Test Reports
-
Product Specification
-
Test Reports
-
Packing Standard
-
-
PCB/FPC Data
-
FPC Design
-
-
High FPC retention force with additional mechanical lock
Unique actuator holder design prevents actuator drop-off
Usability for closing actuator without FPC
| Product Type |
Back Flip
|
| Mating Direction |
Horizontal
|
| Contact pitch |
0.50 mm
|
| Height |
1.10 Max
(1.00 Nom.)
|
| Depth |
3.50 mm
|
| Width Formula |
2.7+(0.5*?P) mm
|
| Pin count |
4
6
8
10
12
14
16
18
20
24
|
| FPC/FFC Thickness |
0.30
|
| Current rating | |
| Full shielding (ZenShield®) |
No
|
| Mechanical lock |
Yes
|
| Shielded FPC / FFC |
No
|
| Other Features |
With Hold Down
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MINIFLEX 5-BFN II LK RECOMMENDED PART NUMBERS
| Part Number Description | Part Number |
| MINIFLEX 5-BFN II LK 4pin | 20600-004E-01 |
| MINIFLEX 5-BFN II LK 6pin | 20600-006E-01 |
| MINIFLEX 5-BFN II LK 8pin | 20600-008E-01 |
| MINIFLEX 5-BFN II LK 10pin | 20600-010E-01 |
| MINIFLEX 5-BFN II LK 12pin | 20600-012E-01 |
| MINIFLEX 5-BFN II LK 14pin | 20600-014E-01 |
| MINIFLEX 5-BFN II LK 16pin | 20600-016E-01 |
| MINIFLEX 5-BFN II LK 18pin | 20600-018E-01 |
| MINIFLEX 5-BFN II LK 20pin | 20600-020E-01 |
| MINIFLEX 5-BFN II LK 24pin | 20600-024E-01 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER MINIFLEX 5-BFN II LK PART NUMBERS
| Part Number Description | Part Number |
| MINIFLEX 5-BFN II standard 4pin | 20600-022E-01 |
| MINIFLEX 5-BFN II standard 5pin | 20600-026E-01 |
| MINIFLEX 5-BFN II standard 5pin | 20600-028E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 4pin | 20753-004E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 6pin | 20753-006E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 8pin | 20753-008E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 10pin | 20753-010E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 12pin | 20753-012E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 14pin | 20753-014E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 16pin | 20753-016E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 18pin | 20753-018E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 20pin | 20753-020E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 22pin | 20753-022E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 24pin | 20753-024E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 26pin | 20753-026E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 28pin | 20753-028E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 6pin | 20755-006E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 8pin | 20755-008E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 10pin | 20755-010E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 14pin | 20755-014E-01 |
| MINIFLEX 5-BFN II LK TYPE-U 4pin | 20755-004E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 6pin | 20755-006E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 8pin | 20755-008E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 10pin | 20755-010E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 12pin | 20755-012E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 14pin | 20755-014E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 16pin | 20755-016E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 18pin | 20755-018E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 20pin | 20755-020E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 22pin | 20755-022E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 24pin | 20755-024E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 26pin | 20755-026E-02 |
| MINIFLEX 5-BFN II LK TYPE-U 28pin | 20755-028E-02 |
| MINIFLEX 5-BFN II LK 6pin | 20570-006E-01 |
| MINIFLEX 5-BFN II LK 8pin | 20570-008E-01 |
| MINIFLEX 5-BFN II LK 10pin | 20570-010E-01 |
| MINIFLEX 5-BFN II LK 14pin | 20570-014E-01 |
| MINIFLEX 5-BFN II LK 4pin | 20570-004E-02 |
| MINIFLEX 5-BFN II LK 6pin | 20570-006E-02 |
| MINIFLEX 5-BFN II LK 8pin | 20570-008E-02 |
| MINIFLEX 5-BFN II LK 10pin | 20570-010E-02 |
| MINIFLEX 5-BFN II LK 12pin | 20570-012E-02 |
| MINIFLEX 5-BFN II LK 14pin | 20570-014E-02 |
| MINIFLEX 5-BFN II LK 16pin | 20570-016E-02 |
| MINIFLEX 5-BFN II LK 18pin | 20570-018E-02 |
| MINIFLEX 5-BFN II LK 20pin | 20570-020E-02 |
| MINIFLEX 5-BFN II LK 22pin | 20570-022E-02 |
| MINIFLEX 5-BFN II LK 24pin | 20570-024E-02 |
| MINIFLEX 5-BFN II LK 26pin | 20570-026E-02 |
| MINIFLEX 5-BFN II LK 28pin | 20570-028E-02 |
