MINIFLEX® 3-BFN L-LK-HD
![MINIFLEX 3-BFN L-LK-HD MINIFLEX 3-BFN L-LK-HD Product Image](/sites/default/files/styles/large/public/product-images/2020-09/MINIFLEX_3-BFN_L-LK-HD.jpg?itok=UpamYDMi)
Mechanical lock, robust design with hold-down feature, long actuator, low profile (Height = 0.9 mm) 0.3 mm pitch, horizontal, backflip
High FPC retention force with additional mechanical lock
Hold down feature improves strength of side wall
Usability for closing actuator without FPC
Contact Pitch (mm):
0.300
Height:
1.00 Max
(0.90 Nom.)
,
Available Pin Count:
11
40
45
Mating Direction:
Horizontal
Downloads
Catalog
2D Drawing
Product Specification
3D Drawing (IGES)
3D Drawing (STEP)
FPC Pattern (DXF)
Symbols & Footprints
Symbols and footprints may be downloaded from an external site, SnapMagic.
Test Reports
Manual
Packing Standard
Certifications
High FPC retention force with additional mechanical lock
![MINIFLEX 3-BFN L-LK-HD High FPC retention force with additional mechanical lock High FPC Retention Force with Additional Mechanical Lock](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-LK-HD_FAB1_E.png?itok=4RFydTf-)
Hold down feature improves strength of side wall
![MINIFLEX 3-BFN L-LK-HD Hold down to improve strength of side wall Hold Down to Improve Strength of Side Wall](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-LK-HD_FAB2_E.png?itok=GsCNcj8R)

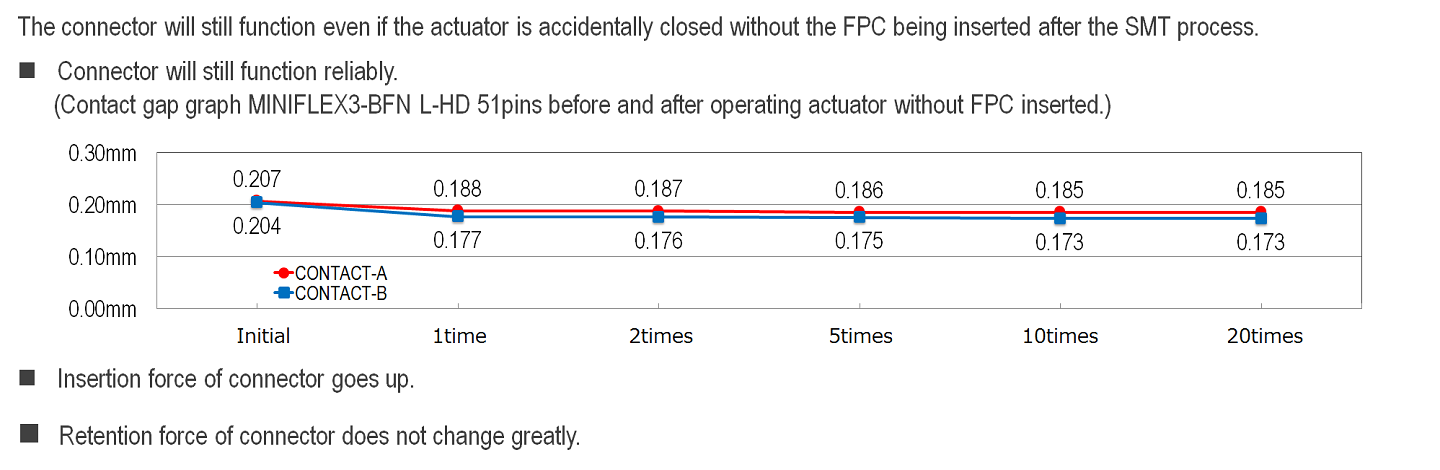

Usability for closing actuator without FPC
![MINIFLEX 3-BFN L-LK-HD Usability for closing actuator without FPC Usability For Closing Actuator Without FPC](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-LK-HD_FAB3_E.png?itok=jLvGN-yz)
Product Type |
Back Flip
|
Mating Direction |
Horizontal
|
Contact pitch |
0.30 mm
|
Height |
1.00 Max
(0.90 Nom.)
,
|
Depth |
3.50 mm
|
Width Formula |
2.7+(0.3*?P) mm
|
Pin count |
11
40
45
|
FPC/FFC Thickness |
0.20
|
Current rating | |
Full shielding (ZenShield®) |
No
|
Mechanical lock |
Yes
|
Shielded FPC / FFC |
No
|
Other Features |
With Hold Down
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MINIFLEX 3-BFN L-LK-HD RECOMMENDED PART NUMBERS
Pin count | Part Number |
11 | 20655-011E-01 |
40 | 20655-040E-01 |
45 | 20655-045E-01 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER MINIFLEX 3-BFN L-LK-HD PART NUMBERS
Pin count | Part Number |
40 | 20745-040E-01 |
45 | 20745-045E-01 |
