MINIFLEX® 3-BFN L-HD
![MINIFLEX 3-BFN L-HD MINIFLEX 3-BFN L-HD Product Image](/sites/default/files/styles/large/public/product-images/2020-09/MINIFLEX_3-BFN_L-HD.jpg?itok=AS8jn0PV)
Robust design with hold-down feature, long actuator, low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal, backflip
Hold-down feature improves strength of side wall
Designed to prevent contact distortion
Usability for closing actuator without FPC
Contact Pitch (mm):
0.300
Height:
1.00 Max
(0.90 Nom.)
,
Available Pin Count:
51
Mating Direction:
Horizontal
Downloads
Catalog
2D Drawing
Product Specification
3D Drawing (IGES)
3D Drawing (STEP)
FPC Pattern (DXF)
Symbols & Footprints
Symbols and footprints may be downloaded from an external site, SnapMagic.
Test Reports
Manual
Packing Standard
Certifications
Hold-down feature improves strength of side wall
![MINIFLEX 3-BFN L-HD Hold down to improve strength of side wall Hold Down to Improve Strength of Side Wall](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-HD_FAB1_E.png?itok=h9G0O7sV)
Designed to prevent contact distortion
![MINIFLEX 3-BFN L-HD Structure to prevent contact distortion Structure to Prevent Contact Distortion](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-HD_FAB2_E.png?itok=nyZ76s5R)

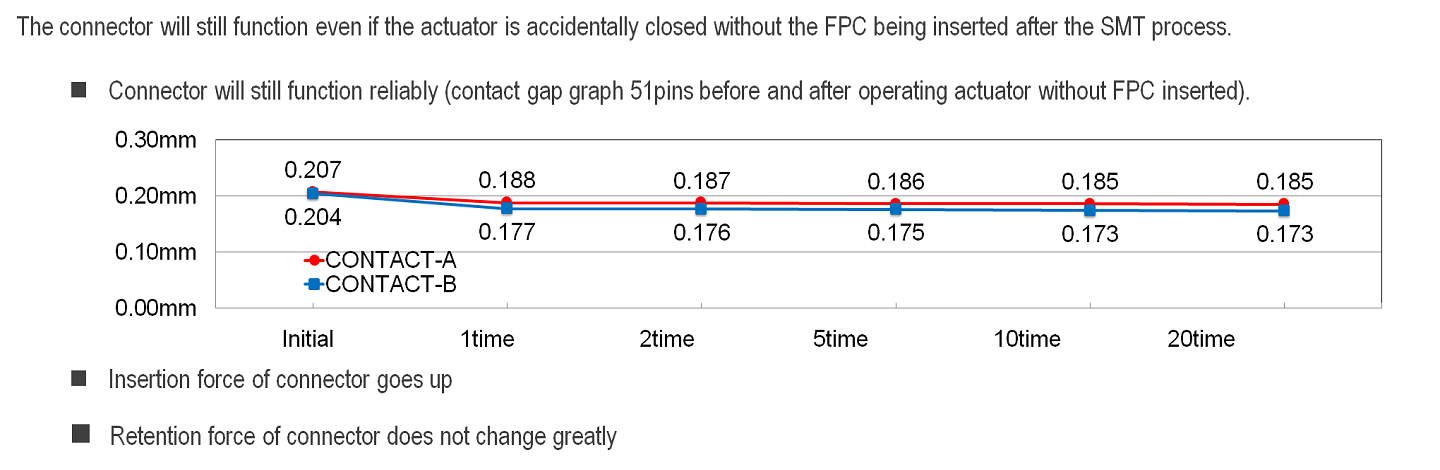

Usability for closing actuator without FPC
![MINIFLEX 3-BFN L-HD Usability for closing actuator without FPC Usability for Closing Actuator Without FPC](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%203-BFN%20L-HD_FAB3_E.png?itok=AlYOwEs2)
Product Type |
Back Flip
|
Mating Direction |
Horizontal
|
Contact pitch |
0.30 mm
|
Height |
1.00 Max
(0.90 Nom.)
,
|
Depth |
3.50 mm
|
Width Formula |
1.5+(0.3*?P) mm
|
Pin count |
51
|
FPC/FFC Thickness |
0.20
|
Current rating | |
Full shielding (ZenShield®) |
No
|
Mechanical lock |
No
|
Shielded FPC / FFC |
No
|
Other Features |
With Hold Down
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MINIFLEX 3-BFN L-HD RECOMMENDED PART NUMBERS
Pin count | Part Number |
51 | 20982-051E-01 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER MINIFLEX 3-BFN L-HD PART NUMBERS
Pin count | Part Number |
51 | 20746-051E-01 |
