MHF® III

Low-profile design (mated height = 1.6 mm max.), supports up to 9 GHz

  • Small form factor with big performance through 9 GHz

  • Solderless micro-coaxial termination technology "i-Fit®" provides consistent performance

  • MHF® III Plug available micro-coaxial O.D. (AWG) : 0.81 mm (36), 0.64 mm (36)

Height:
1.60 Max
Frequency Range:
Up to 9 GHz
Micro-Coaxial Cable (AWG):
#36 (O.D. 0.81 mm) #36 (O.D. 0.64 mm)

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Symbols & Footprints

    Symbols and footprints may be downloaded from an external site, SnapMagic.

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

    • Small form factor with big performance through 9 GHz

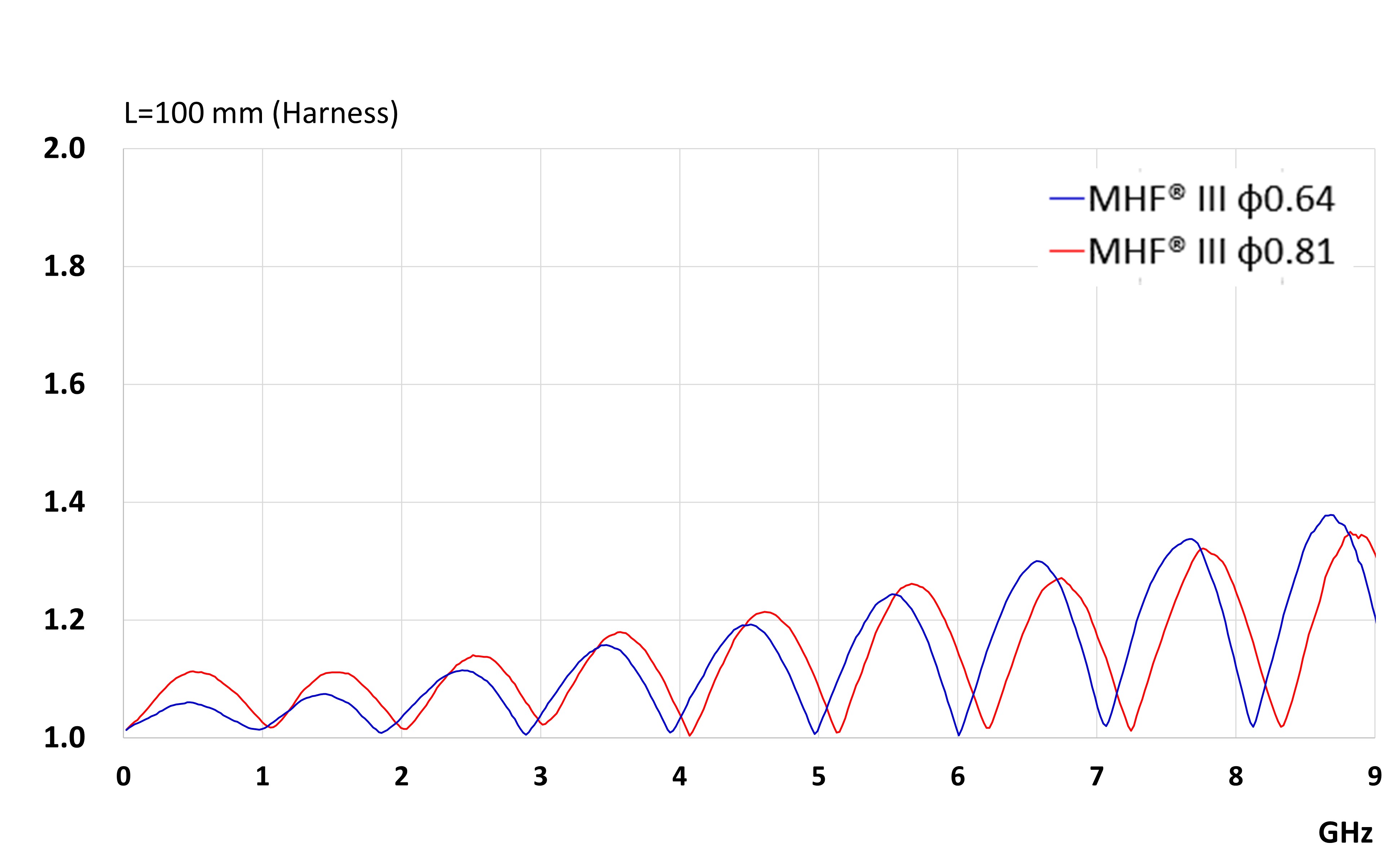

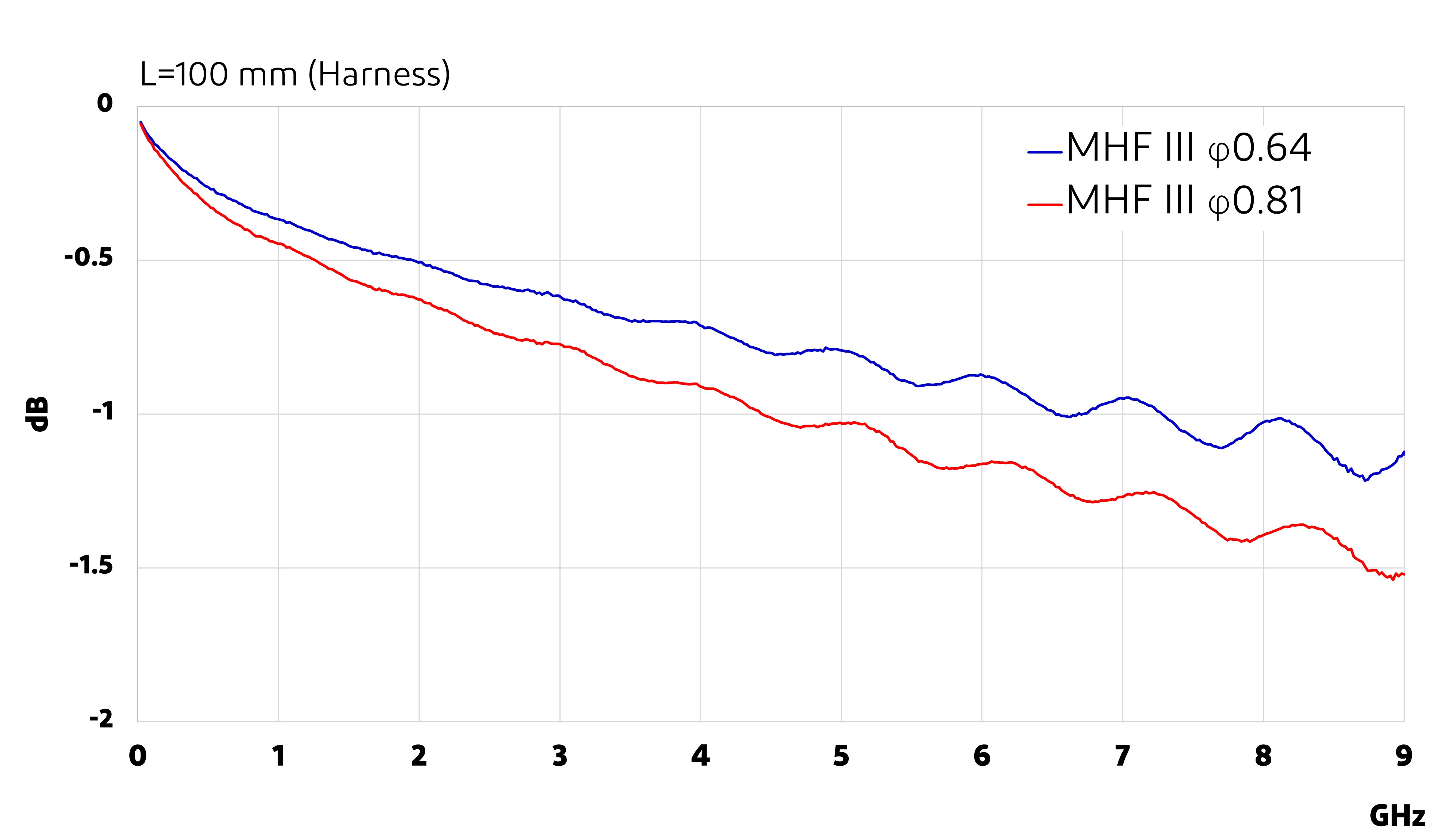

    VSWR Insertion Loss
    MHF III_FAB1-1.jpg FAB1_2.jpg



    Solderless micro-coaxial termination technology "i-Fit®" provides consistent performance
    FAB2_1.jpg FAB2_2.jpg FAB2_3.jpg
    1. Center Conductor
    2. Dielectric Core
    3. Outer Conductor  4. Jacket

    		 5. Contact  6. Center Conductor
    7. Crimping



    MHF® III Plug available micro-coaxial O.D. (AWG) : 0.81 mm (36), 0.64 mm (36)



    Product name MHF® III MHF® 4L MHF® I
    Mating Height 1.6 mm max. 1.7 mm max. 1.4 mm max. 1.2 mm max. 3.0 mm max. 2.5 mm max.
    Coaxial O.D. (Center Conductor AWG) 2.00 mm (AWG#26)         ●
    1.80 mm (AWG#30)           ●
    1.37 mm (AWG#30)   ●       ●
    1.32 mm (AWG#32)           ●
    1.13 mm (AWG#32)     ●     ●
    0.95 mm (AWG#33)     ●
    0.81 mm (AWG#36) ●     ●   ●
    0.64 mm (AWG#36) ●     ●
    Receptacle MHF® III receptacle MHF® 4 receptacle, MHF® 4L receptacle MHF® I receptacle



    Product Type
    Coaxial RF Connector
    Height
    1.60 Max
    SMT Size (mm)
    2.0 x 2.0 mm
    Micro-Coaxial Cable (AWG)
    #36 (O.D. 0.81 mm) #36 (O.D. 0.64 mm)
    Frequency range
    Up to 9 GHz
    Applicable Standards (Reference Only)
    5G sub6 IEEE802.11n IEEE802.11ac IEEE802.11ax IEEE802.11be Wi-Fi 4 Wi-Fi 5 Wi-Fi 6/6E Wi-Fi 7 LTE / LTE-Advanced LPWA Bluetooth GPS
    Full shielding (ZenShield®)
    No
    Mechanical lock
    No
    VSWR (PLUG) DC~3GHz : 1.30 max.
    3GHz~6GHz : 1.50 max.
    6GHz~9GHz : 1.70 max.
    VSWR (RECEPTACLE) DC~3GHz : 1.30 max.
    3GHz~6GHz : 1.40 max.
    6GHz~9GHz : 1.60 max.
    Other Part Numbers
    Please note: This list potentially includes products without available samples and end-of-life items.



    OTHER MHF III PART NUMBERS

    Part Number Description Part Number
    MHF III PLUG (Ni top) 20609-002R
    MHF III PLUG (Au plating) 20367-001R
    MHF III PLUG (Au plating) 20367-002R
    MHF III RECEPTACLE 20369-001E-03
    MHF III RECEPTACLE 20369-001E
    SMA Adapter Usage (Durability Cycles) Part Number
    Plug Electrical Performance Check (3,000) 90285-001
    Voltage Check (10,000) 90286-001
    Receptacle Electrical Performance Check (500) 90285-002
    High Cycle / Normal (10,000) 90491-001
    High Cycle / Detachable / Base (200,000) 90684-0001
    Hand Tool Part Number
    Unmating Tool 90287-001
    Mating / Unmating Tweezer 90501-001
