LIGHTPASS®-EOM 100G

100Gbps（25Gbps x 4ch） Bi-directional, High Density, Low power, mid-board optical module

  • High Speed Transmission Mid-Board Optical module

  • Low power consumption per Gbps

  • Ultra Small Optical Module

Mating Direction:
Vertical

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Manual

  • Packing Standard

    • High Speed Transmission Mid-Board Optical module
    LIGHTPASS-EOM_100G_E_FAB1

    Low power consumption per Gbps
    LIGHTPASS EOM 100G E FAB2

    Ultra Small Optical Module
    LIGHTPASS EOM 100G E FAB3

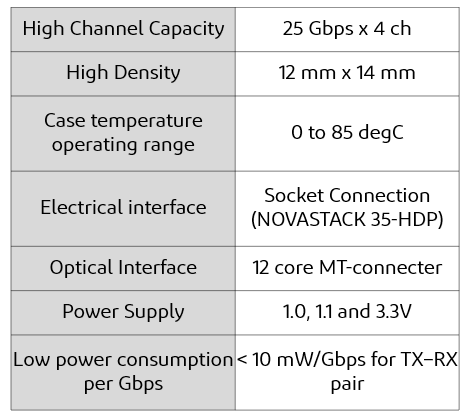

    Transmission Speed 100 Gbps(NRZ 25 Gbpsx4 ch)



    LIGHTPASS-EOM 100G RECOMMENDED PART NUMBERS

    Product name Description Part Number
    LIGHTPASS-EOM 100G Optical module 88001-000T-25-01
    NOVASTACK 35-HDP (2-in-1) PCB connector 21001-042E-01
