CABLINE®-CA II / Micro-Coaxial Wire-to-Board Connector



CABLINE®-CA II / CA II PLUS : 0.4 mm pitch, horizontal mating type micro-coaxial connector with EMC shielding cover and mechanical lock



Product Size


Low profile connector with various pin count options.

CABLINE-CA IICABLINE-CA II

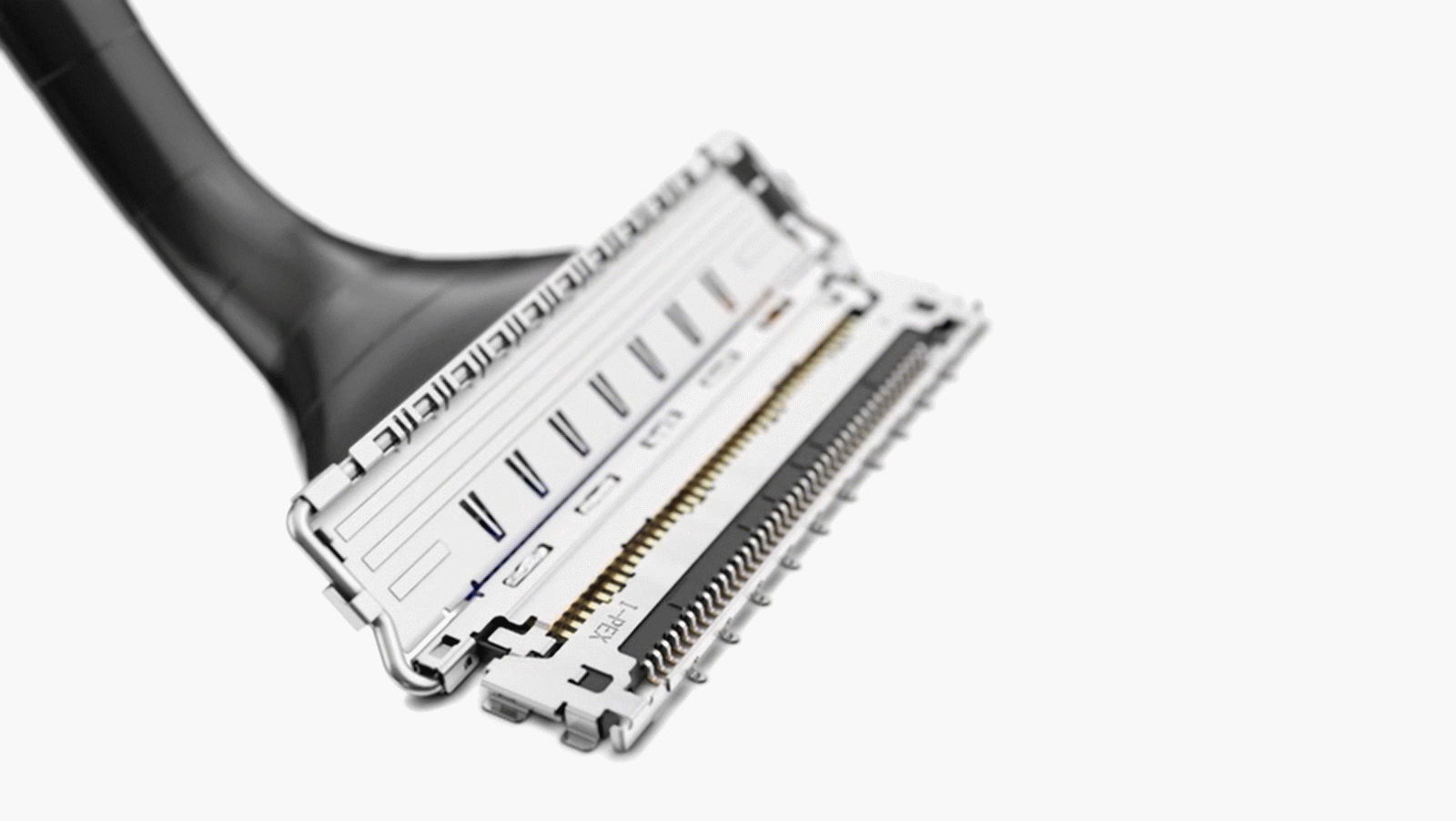

Mechanical Lock


Mechanical locking function prevents back-out/un-mating

CABLINE-CA II





A High-Performance EMC Shielding Connector


CABLINE®-CA II is part of the ZenShield® series that solves electromagnetic noise in the connector by using an appropriate grounding structure and cover which includes the mounting position of the signal contact tails with metal shields. This solution is widely adopted by many customers to prevent electromagnetic interference, especially in high-performance devices equipped with wireless communication functions such as Wi-Fi, GPS, and LTE.

The 360-degree EMC shielding design prevents electromagnetic noise radiation not only from the contact points of the plug and receptacle, but also from the board mounting part (SMT positions) of the signal terminals. In addition, both plug and receptacle shields are properly connected for grounding at multiple points when the connectors are mated and are properly grounded to the board. This ensures enough ground return paths for the current generated in the metal shields of the connector. This works to suppress the emission of electromagnetic noise from its shield.

  • The entire connector is covered with 360° shielding
CABLINE-CA II



  • The shield-to-shield interface between the plug and receptacle is effectively connected at multiple points.
CABLINE-CA II



  • The connector shield-to-board interface is properly grounded at multiple points on the board
CABLINE-CA II

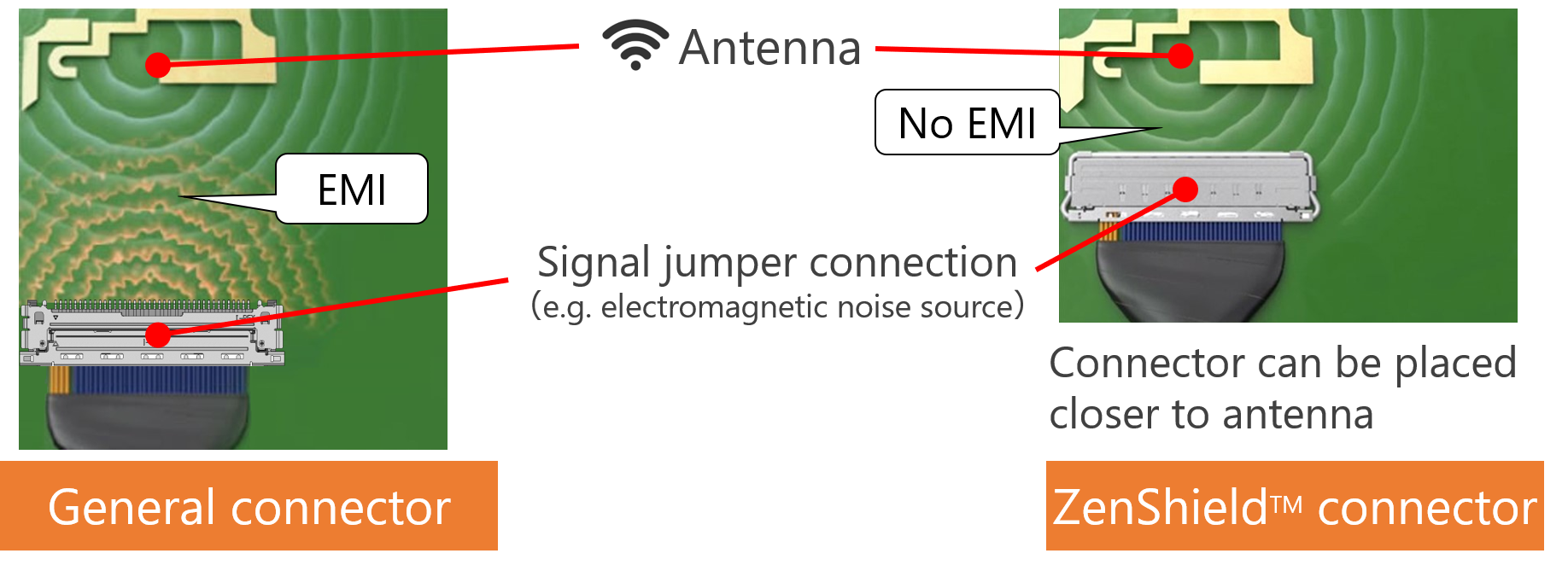

With these design features, the connector itself provides significant mitigation of EMI. ZenShield® gives board designers more flexibility for designing the board by allowing the connectors to be placed in close proximity to sensitive subsystems, such as transmit/receive antennas, that are commonly found in high-performance wireless communication systems. These types of systems typically require aggressive shielding solutions for intra-system EMI isolation problems.

ZenShield



Automated Manufacturing and Inspection Process


CABLINE-CA IICABLINE-CA IICABLINE-CA II















Mating Type Option


I-PEX has a connector series that supports both horizontal and vertical mating, so the suitable mating direction can be selected according to various applications and design conditions. For example, a horizontal mating connector can be used on the panel board where a narrow connector is required, and a vertical mating connector can be used on the board where high-density mounting is required in the middle of the board.

  • 0.4 mm pitch, micro-coaxial connector with EMC shielding cover and mechanical lock

Horizontal mating type: CABLINE®-CA II
Vertical mating type: CABLINE®-UM



CABLINE-UM
Play CABLINE®-UM video
