NOVASTACK® 35-HDP / Shielded Board-to-FPC Connector
NOVASTACK® 35-HDP: High-speed (20+ Gbps) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height.
Product Structure
Product Size
Power Delivery

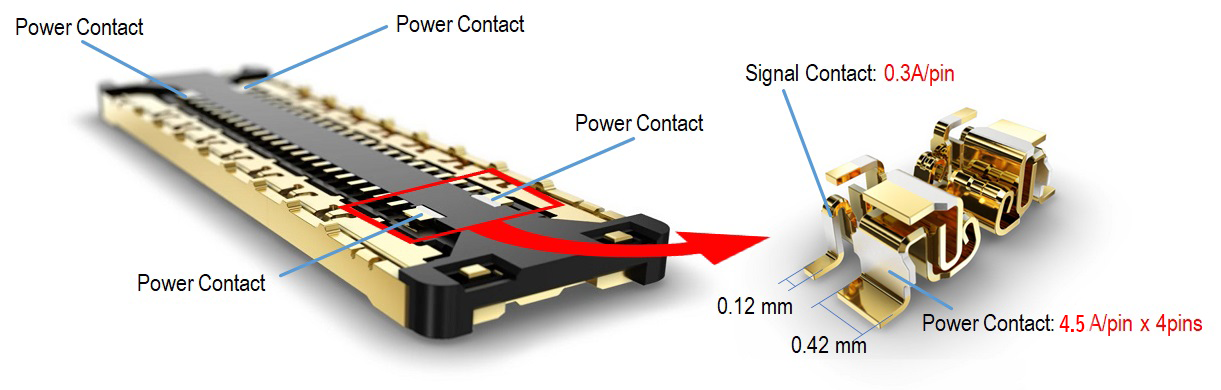

NOVASTACK® 35-HDP has 4 sets of wider contacts for power delivery (2.2A/pin).
A High-Performance EMC Shielding Connector
NOVASTACK®35-HDP is part of the ZenShield®series that solves electromagnetic noise in the connector by using an appropriate grounding structure and cover which includes the mounting position of the signal contact tails with metal shields. This solution is widely adopted by many customers to prevent electromagnetic interference, especially in high-performance devices equipped with wireless communication functions such as Wi-Fi, GPS, and LTE.
The 360-degree EMC shielding design prevents electromagnetic noise radiation not only from the contact points of the plug and receptacle, but also from the board mounting part (SMT positions) of the signal terminals. In addition, both plug and receptacle shields are properly connected for grounding at multiple points when the connectors are mated and are properly grounded to the board. This ensures enough ground return paths for the current generated in the metal shields of the connector. This works to suppress the emission of electromagnetic noise from its shield.
- The entire connector is covered with 360° shielding
- The shield-to-shield interface between the plug and receptacle is effectively connected at multiple points.
- The connector shield-to-board interface is properly grounded at multiple points on the board
With these design features, the connector itself provides significant mitigation of EMI. ZenShield® gives board designers more flexibility for designing the board by allowing the connectors to be placed in close proximity to sensitive subsystems, such as transmit/receive antennas, that are commonly found in high-performance wireless communication systems. These types of systems typically require aggressive shielding solutions for intra-system EMI isolation problems.
Automated Manufacturing and Inspection Process
Narrow Type ZenShield®Board-to-FPC Connector
NOVASTACK® 35-HDN: Ideal for 5G mmWave antenna module and devices, fully-shielded and narrow design. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7 mm height.
