MHF^® is a series of ultra-miniature RF coaxial connectors for antenna connection within wireless devices that achieves maximum performance with minimal space. Compatible with various communication standards, such as 5G mmWave/Sub6, 4G, LTE, Wi-Fi, Bluetooth, GPS, WiGig, M2M, IoT, SigFox, WiSUN, NB-IoT and LoRa.

• I-PEX's i-Fit^® solderless connection technology provides stable VSWR performance up to 15 GHz
• Products with our ZenShield^® technology, such as the MHF^® 7S, offer ensured EMC performance
• Industry's first miniature RF coaxial connector with locking mechanism
• A wide range of options, from extremely small connectors with a mated height of 1.0 mm to connectors that support frequency bands up to 15 GHz





Contents :

---

Why Select I-PEX RF Connectors?
1) Industry standard connector

2) Variety of options
- 2-1) RF Coaxial cable size variety
- 2-2) Mated height and pad layout
- 2-3) Mechanical lock
- 2-4) Ground clip and clamp

3) i-Fit^® Technology
- 3-1) What is i-Fit^® Technology?
- 3-2) i-Fit exceeds precision of solder
- 3-3) Industry adoption
- 3-4) Fully Automated Harness Solutions from I-PEX

Why Select I-PEX Switch Connector?

Accessories

---



Why Select I-PEX RF Connectors?

---

1) Industry Standard Connector

Current Standards

I-PEX MHF^® Series Connectors are standard components in a wide array of wireless devices including : smartphones, tablets, notebook M.2 and M2M modules, automotive infotainment systems, and more. As the Internet of Things (IoT) deployment accelerates, the MHF^® Series will play an increasing role in global wireless connectivity. With MHF^® connector shipments in excess of 25 billion units, I-PEX has consistently provided a robust, reliable and cost-effective solution for wireless design.

---

2) Variety of Options

2-1) RF Coaxial cable size variety

I-PEX offers a wide variety of MHF^® options to fit insertion loss and VSWR requirements. This selection offers flexibility in enabling wireless connectivity within a system. Depending on MHF^® type, coax outer diameters range from 0.48 mm (MHF^® 5) to 3.0 mm (MHF^®-TI). Typical insertion loss values by coax type and harness length, and minimum bend radius can be found below.

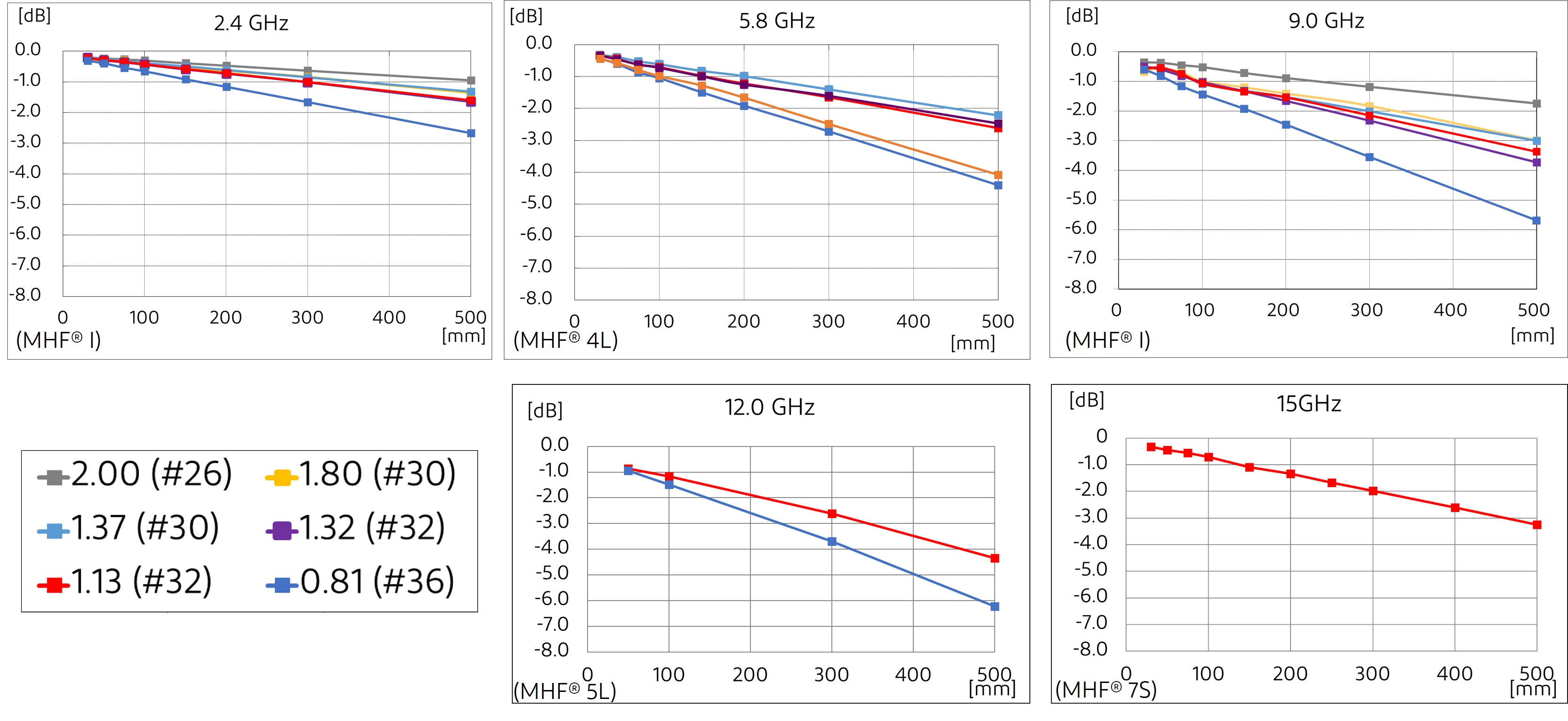

Harness Length (mm) vs Insetion Loss(S21) : 2.4 GHz, 5.8 GHz, 9.0 GHz, 12 GHz, 15 GHz

其他頻率下的電纜插入損耗資料請參閱產品矩陣檔案。

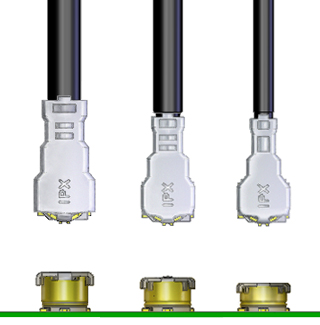

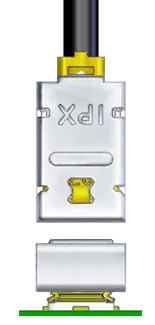

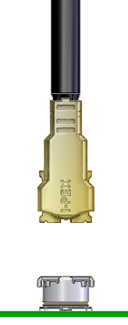

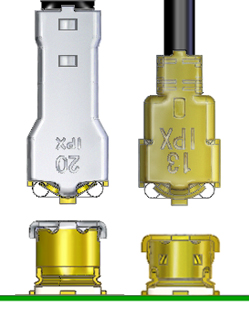

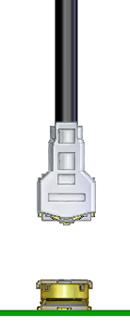

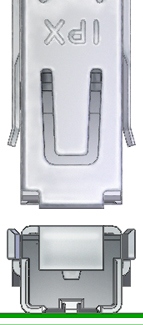

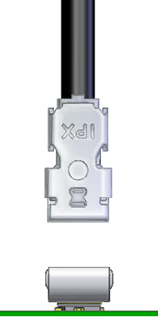

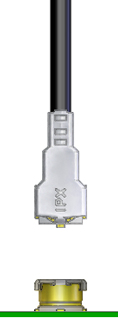

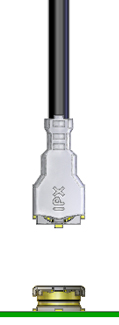

2-2) Mated height and pad layout

I-PEX's MHF Series has a selection of mated height profiles that can fit in various designs. From small form factors like phones and tablets to notebooks to robust solutions for shock and vibration environments. In addition to the flexibility of mated heights, the MHF^® Series has several pad layouts design engineers can choose.



2-3) Mechanical lock





2-4) Ground clip and clamp





Electric Field Simulations: MHF^® 7S harness with cable clamp and clip provides optimal EMC solution. Ideal for 5G mmWave applications.

---

3) i-Fit^® Technology

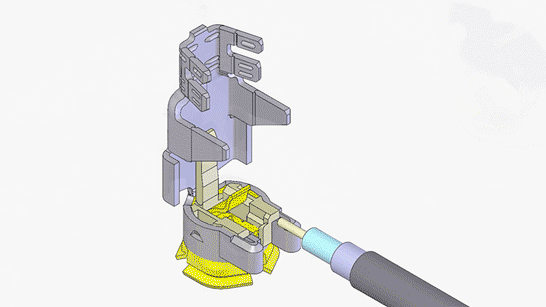

3-1) What is i-Fit^® Technology?



3-2) i-Fit exceeds precision of solder

I-PEX's i-Fit solderless terminating technology vs. solder termination outperforms in a side-by-side VSWR comparison. Solder processes introduce variability and inconsistency from harness-to-harness. The i-Fit method removes the variability of solder thereby increasing the repeatability and precision of electrical performance.

i-Fit^® offers consistently tight range of performance



3-3) Industry adoption



3-4) Fully Automated Harness Solutions from I-PEX

I-PEX sells completed MHF^® harnesses in multiple configurations MHF^®-to-MHF^®, blunt cut, strip and tinned. Other value-added options include orientation in 90-degree increments, jacket cut-outs or windows for grounding, adding MP-A clamps or a secondary process at the customer's facility.
I-PEX specializes and leads in high-speed automated MHF^® harness production. Using custom Fully Automated Machines (FAM), I-PEX FAMs will cut, strip, crimp, check orientation, and perform mechanical and electrical checks. Completing tens of thousands of harnesses per day, I-PEX MHF^® automated equipment have unparalleled Defects Per Million Opportunities (DPMO) of less than 1.

---



Why Select I-PEX Switch Connector?

---

Industry Leading Innovations



RF Switch connector options

Learn more with video: https://www.i-pex.com/library/video/mhf-sw23-plug

---

Accessories

---

I-PEX offers MHF^® accessories to support test needs from the lab to high volume production. MHF^® adapters for VNA testing, lab probes, and high-volume test probes are available. Additionally, I-PEX offers MHF^® mating and unmating tools to properly mate the plug and limit accidental damage during installation in the lab and on the production floor.



SMA Adapters for MHF^® Plugs



SMA Adapters for MHF^® Receptacles



MHF^® Accessories: Hand Tool

 Note
(*): 90885-0001 is for 20767-001R
(**): 90609-0001 is for 20572-001R-08 and 20565-001R-13
(***): 90873-0001 is for 20632-001R-37



MHF^® Accessories: RF Switch

SMA Adapters for MHF^® Switch







---

In addition to I-PEX's offering of industry first and standard solutions, I-PEX solutions provide cost savings, productivity benefits and quality assurances exemplifying perfection in precision. Building on this philosophy I-PEX has pioneered low-cost high-volume connector designs for 5G applications. As new bands become commercialized for 5G, I-PEX is leading the way to quality high-frequency solutions to suit the ever-increasing demand for smaller and faster connector solutions.

I-PEX is always eager to work on unique customized solutions. Please inquire here to discuss design requirements.
