支援頻率可達 9 GHz，最大嵌合高度為 2.5 mm, 3.0 mm

    i-Fit®是一種壓接式無焊接的極細同軸線端子技術， i-Fit®提供穩定的性能

    對應至9 GHz的高性能小型連接器

    我們可提供MHF® I公座的各種線外徑及附加機械鎖扣供您選擇

*有關機械鎖扣額外的嵌合保持力，請查看 MHF® I LK 公座電纜組件。

*如需額外的焊接剪切力和更好的中心校準，請查看 MHF® I 4 焊盤母座。
Mated Height:
2.5 max. 3.0 max. mm
頻率範圍:
Up to 9 GHz
Micro-Coaxial Cable:
AWG 26 O.D. 2.0 mm AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm

下載

i-Fit®是一種壓接式無焊接的極細同軸線端子技術， i-Fit®提供穩定的性能

對應至9 GHz的高性能小型連接器

我們可提供MHF® I公座的各種線外徑及附加機械鎖扣供您選擇


Product Type
Coaxial RF Connector
Mated Height
2.5 max. 3.0 max. mm
SMT Size
3.1 x 3.0 mm
Frequency range Up to 9 GHz
Micro-Coaxial Cable
AWG 26 O.D. 2.0 mm AWG 30 O.D. 1.8 mm AWG 30 O.D. 1.37 mm AWG 32 O.D. 1.32 mm AWG 32 O.D. 1.13 mm AWG 36 O.D. 0.81 mm
Applicable Standards (Reference Only)
5G sub6IEEE802.11nIEEE802.11acIEEE802.11axIEEE802.11beWi-Fi 4Wi-Fi 5Wi-Fi 6/6EWi-Fi 7LTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
VSWR (Harness only) DC ~ 3 GHz : 1.3 max.
3 ~ 6 GHz : 1.5 max.
6 ~ 9 GHz : 1.6 max. (O.D. 1.32, 2.0 mm)
6 ~ 9 GHz : 1.9 max. (O.D. 0.81, 1.13, 1.37, 1.80 mm)

推薦料號

若清單中查詢不到您要找的料號，請使用調查表詢問。



MHF I RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug OD=0.81mm  20278-112R-08 61.52
MHF I plug OD=1.13mm 20278-112R-13 61.52
MHF I plug OD=1.32mm 20278-112R-32 61.52
MHF I plug OD=1.37mm 20351-112R-37 61.52
MHF I plug OD=1.80mm 20278-112R-18 61.52
MHF I plug OD=2.00mm 20767-001R-20 101.6
MHF I receptacle 3 pads 20279-001E-03 16



MHF I SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I_1

Part Number Description Part Number Weight (mg)
MHF I-I harness OD=1.13mm L=50mm 8-24-0113 730
MHF I-I harness OD=1.13mm L=100mm 8-24-0114 670
MHF I-I harness OD=1.13mm L=200mm 8-21-0048 870
MHF I-I harness OD=1.13mm L=500mm 8-24-0115 720
MHF I-I harness OD=1.37mm L=50mm 8-24-0140 670
MHF I-I harness OD=1.37mm L=100mm 8-24-0141 720
MHF I-I harness OD=1.37mm L=200mm 8-24-0142 670
MHF I-I harness OD=1.37mm L=500mm 8-24-0143 690



MHF I SAMPLE HARNESS FOR EVALUATION PART NUMBERS

SAMPLE HARNESS FOR EVALUATION_MHF I_2

Part Number Description Part Number Weight (mg)
MHF I-SMA Jack harness OD=1.13 L=100mm 8-25-0046 3800
MHF I-SMA Jack harness OD=1.13 L=150mm 8-25-0047 4000
MHF I-SMA Jack harness OD=1.13 L=200mm 8-25-0048 4100
MHF I-SMA Jack harness OD=1.37 L=100mm 8-25-0066 4100
MHF I-SMA Jack harness OD=1.37 L=150mm 8-25-0067 4400
MHF I-SMA Jack harness OD=1.37 L=200mm 8-25-0068 4700
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。



MHF I OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I plug 20643-112R-13 61.52
MHF I plug smooth insert type OD=0.81mm 20723-112R-08-0T 62.92
MHF I plug smooth insert type OD=1.13mm 20723-112R-13-0T 62.92
MHF I plug smooth insert type OD=1.32mm 20723-112R-32-0T 62.92
MHF I plug smooth insert type OD=1.37mm 20723-112R-37-0T 62.92
MHF I plug smooth insert type OD=0.81mm 20631-112R-08 62.92
MHF I plug smooth insert type OD=1.13mm 20631-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 20631-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 20631-112R-37 62.92
MHF I plug smooth insert type Ni plating OD=0.81mm 20670-001R-08 62.92
MHF I plug smooth insert type Ni plating OD=1.13mm 20670-001R-13 62.92
MHF I plug smooth insert type Ni plating OD=1.32mm 20670-001R-32 62.92
MHF I plug smooth insert type Ni plating OD=1.37mm 20670-001R-37 62.92
MHF I plug smooth insert type Ni plating OD=1.80mm 20670-001R-18 62.92
MHF I plug smooth insert type OD=1.13mm 105℃ 20797-112R-13 62.92
MHF I plug smooth insert type OD=1.32mm 105℃ 20797-112R-32 62.92
MHF I plug smooth insert type OD=1.37mm 105℃ 20797-112R-37 62.92
MHF I plug Ni plating OD=1.37mm 20351-212R-37 61.52
MHF I receptacle 3 pads 20279-001E-05 16
MHF I receptacle 3 pads 20279-001E-06 16
MHF I receptacle 3 pads 105℃ 20803-001E 16
MHF I receptacle 4 pads 20431-001E-01 62.92
MHF I receptacle 4 pads 20441-001E-01 16
SMA Adapters for MHF® Receptacles
 RF_t7_ACC1.png  RF_t7_ACC2.png RF_t7_ACC3.png RF_t7_ACC4.png  RF_t7_ACC5.png  RF_t7_ACC6.png
90193-002 90539-001 90577-0100
90577-0200
90577-0350
90577-0750		 90575-0001 90684-0001 90416-001



SMA Adapters for MHF® Plugs MHF® Accessories: Hand Tool
RF_t6_ACC1.png  RF_t6_ACC3.png  RF_t8_ACC1.png  RF_t8_ACC2.png
90193-001 90194-001 90224-001
90885-0001(*)		 90192-001



MHF I ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg)
MHF I/I LK SMA adapter for plug electrical-performance-check 90193-001 2293.7
MHF I/I LK SMA adapter for plug voltage-check 90194-001 709.1
MHF I/I LK SMA adapter for receptacle electrical-performance-check 90193-002 1453.3
MHF I/I LK SMA adapter for receptacle high-cycle 90539-001 6737.3
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=100mm 90577-0100 4503.2
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=200mm 90577-0200 -
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch wire L=750mm 90577-0750 9769.8
MHF I/I LK SMA adapter for receptacle high-cycle narrow-pitch probe 90575-0001 1499
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1
MHF I/I LK SMA adapter for receptacle high-cycle detachable probe 90416-001 1650
MHF I insertion/extraction tool 90224-001 1572.2
MHF I extraction tool 90192-001 1501.4
MHF I 08 type semi-auto jig 90213-008 7500000
MHF I 08 type semi-auto jig 90213-008C 7500000
MHF I 13 type semi-auto jig 90213-013C 7500000
MHF I 32 type semi-auto jig 90213-032C 7500000
MHF I 18 type semi-auto jig 90232-018 -
MHF I 37 type semi-auto jig 90232-037 -
MHF I push and pull tool 90885-0001 -



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF I 91604-001B-001 17788

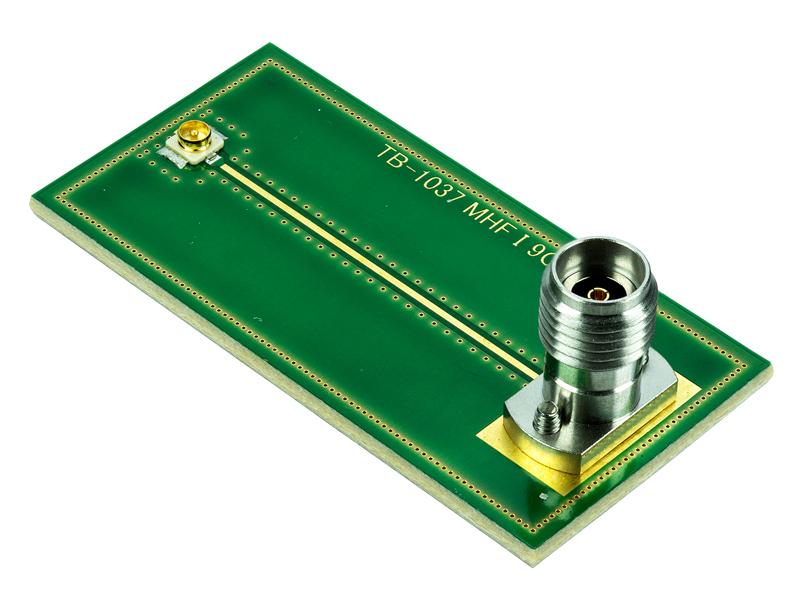

MHF_I_SI_TB-1037_Test_Board_(C)

Main Board

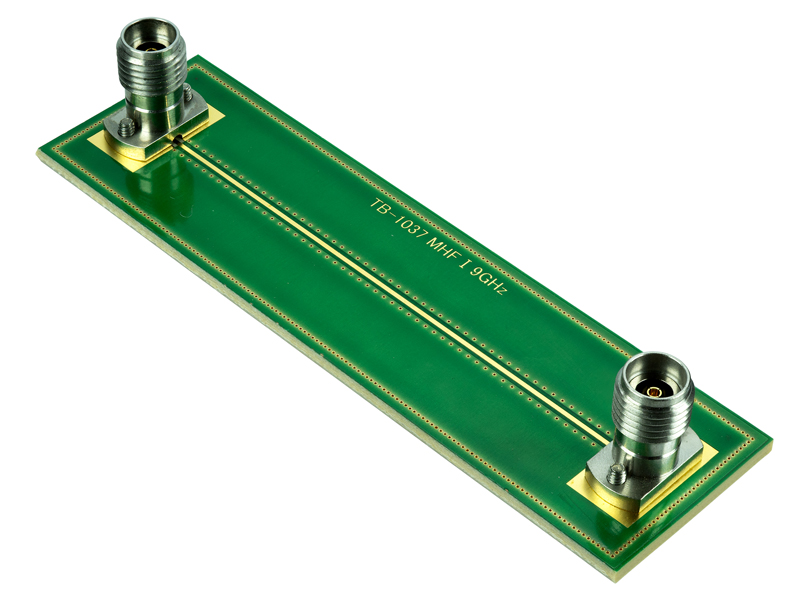

MHF_I_SI_TB-1037_THRU_Board_(C)
Thru Board

MHF I Plan to EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF I plug Ni plating OD=1.37mm 20278-212R-13 Ground contact Ni top plating 20278-112R-13 Ground contact Au plating
MHF I receptacle 3 pads 20279-001E-01 2,500 pcs/reel 20279-001E-03 5,000 pcs/reel
MHF I plug Ag 20308-112R-13 Ground contact Ag Plating 20278-112R-13 Ground contact Au plating
MHF I plug Ag 20308-212R-37 Ground contact Ag Plating 20351-112R-37 Ground contact Au plating



MHF I EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MHF I plug non-HF 20278-101R-08 Housing Non halogen free 20278-112R-08 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-08 Housing Non halogen free 20278-112R-08 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-13 Housing Non halogen free 20278-112R-13 Housing halogen free
MHF I plug Au housing non-halogen free 20278-111R-32 Housing Non halogen free 20278-112R-32 Housing halogen free
MHF I receptacle 3 pads plastic reel 20279-001E-02 2,500 pcs/reel 20279-001E-03 5,000 pcs/reel
MHF I receptacle Ag 20314-001E-01 Ground contact Ag Plating 20279-001E-03 Ground contact Au Plating
MHF I plug Au housing non-halogen free 20351-111R-37 Housing Non Halogen Free 20351-112R-37 Housing Halogen free
MHF I plug Au 20351-312R-37 Ground contact Au plating thickness: 0.38 um, Main contact Au plating thickness: 0.38 um 20351-112R-37 Ground contact Au plating thcikness: 0.05 um, Main contact Au plating thickness: 0.1 um
MHF I 08 type hand tool 90187-008C 　 Contact us 　
MHF I 13 type hand tool 90187-013C 　 Contact us
