MINIFLEX® 4-ST
![MINIFLEX 4-ST MINIFLEX 4-ST Product Image](/sites/default/files/styles/large/public/product-images/2020-09/MINIFLEX_4-ST.jpg?itok=pmmyIo9q)
Super low profile (height = 0.5 mm), 0.4 mm pitch, horizontal mating, backflip
Super low height 0.5 mm
High FPC retention force with additional mechanical lock
Usability for closing actuator without FPC
Contact Pitch (mm):
0.400
Height:
0.55 Max
(0.50 Nom.)
,
Available Pin Count:
4
6
8
10
12
Mating Direction:
Horizontal
Downloads
Catalog
2D Drawing
Product Specification
3D Drawing (IGES)
3D Drawing (STEP)
FPC Pattern (DXF)
Symbols & Footprints
Symbols and footprints may be downloaded from an external site, SnapMagic.
Test Reports
Manual
Packing Standard
Certifications

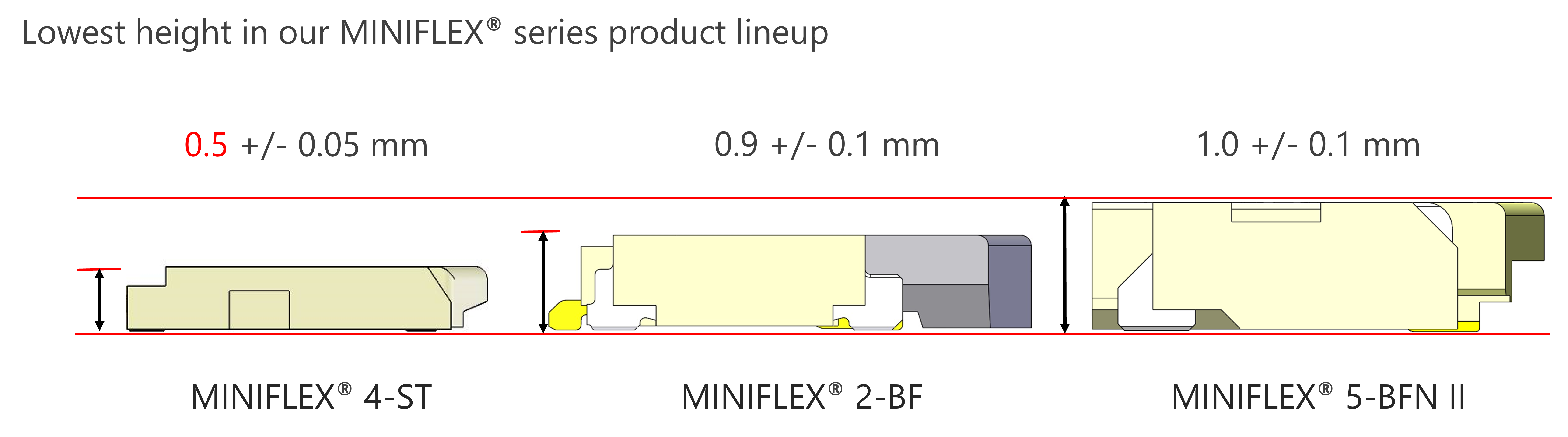

Super low height 0.5 mm
![MINIFLEX_4-ST_FAB1_E.png](/sites/default/files/styles/product_detail_image/public/2022-03/MINIFLEX_4-ST_FAB1_E.png?itok=jD-H_pxL)

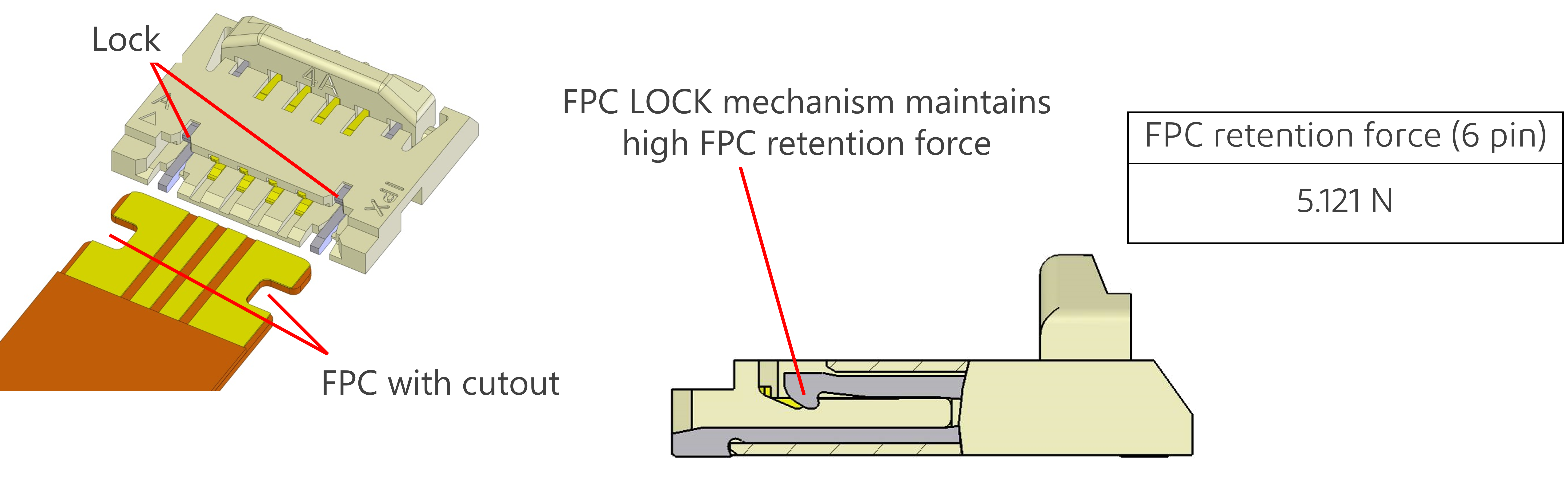

High FPC retention force with additional mechanical lock
![MINIFLEX 4-ST High FPC Retention Force With Additional Mechanical Lock High FPC Retention Force with Additional Mechanical Lock](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%204-ST_FAB2_E.png?itok=8PPsKnsa)

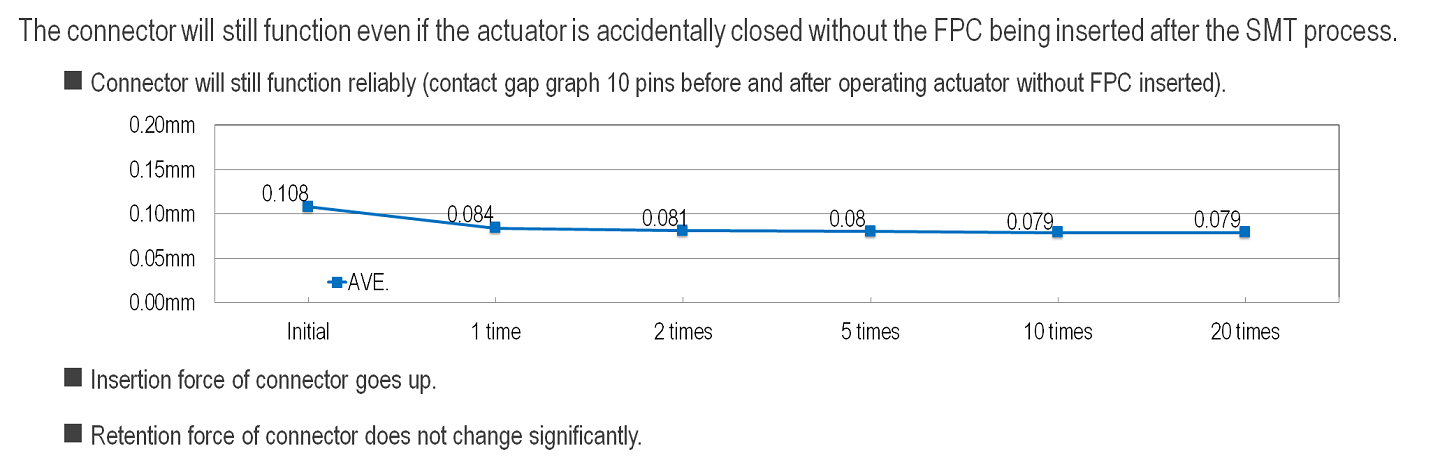

Usability for closing actuator without FPC
![MINIFLEX 4-ST Usability for closing actuator without FPC Usability for Closing Actuator Without FPC](/sites/default/files/styles/product_detail_image/public/2019-01/MINIFLEX%204-ST_FAB3_E.png?itok=7JNg06mp)
Product Type |
Back Flip
|
Mating Direction |
Horizontal
|
Contact pitch |
0.40 mm
|
Height |
0.55 Max
(0.50 Nom.)
,
|
Depth |
3.00 mm
|
Width Formula |
1.90+(0.4*?P) mm
|
Pin count |
4
6
8
10
12
|
FPC/FFC Thickness |
0.12
|
Current rating | |
Full shielding (ZenShield®) |
No
|
Mechanical lock |
Yes
|
Shielded FPC / FFC |
No
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MINIFLEX 4-ST RECOMMENDED PART NUMBERS
Pin count | Part Number |
4 | 20588-004E-01 |
6 | 20588-006E-01 |
8 | 20588-008E-01 |
10 | 20588-010E-01 |
12 | 20588-012E-01 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER MINIFLEX 4-ST PART NUMBERS
Pin count | Part Number |
4 | 20751-004E-01 |
6 | 20751-006E-01 |
8 | 20751-008E-01 |
10 | 20751-010E-01 |
12 | 20751-012E-01 |
