VR

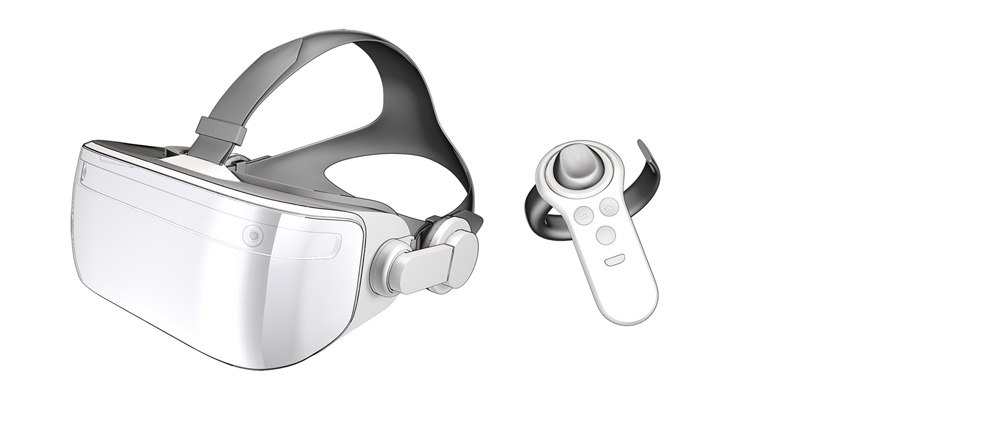

    VR HEADSET
  • Tracking Built-in Camera
  • Built-in Tracking Sensors (IMU)
  • RF Signal
  • Interface Signal (LVDS / MIPI / eDP / USB / HDMI)
  • Dual Display (LCoS, RPDs)
  • Battery
  • Speakers / Headphones / Earphones
VR HEADSET
    VR CONTROLLER
  • Built-in Tracking Sensors (IMU)
  • RF Signal
  • Battery
VR CONTROLLER
Tracking Built-in Camera
NOVASTACK® 35-HDH
1.5 mm height, 0.35 mm pitch , Fully-shielded and high-profile design, High-speed 40 Gbps(≒20 GHz)/lane transmission
  • BOARD TO BOARD
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
DW-5
Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip
  • FPC
  • DISCRETE WIRE
Built-in Tracking Sensors (IMU)
NOVASTACK® 35-HDH
1.5 mm height, 0.35 mm pitch , Fully-shielded and high-profile design, High-speed 40 Gbps(≒20 GHz)/lane transmission
  • BOARD TO BOARD
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
DW-5
Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip
  • FPC
  • DISCRETE WIRE
RF Signal
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
MHF® 7S
Excellent EMC performance with fully-shielded design, ideal for 5G mmWave applications, VSWR 1.5 max at 15 GHz in small 2.0 x 2.0 mm footprint
  • EMI SHIELD
  • MICRO-COAXIAL
MHF® 4
Low-profile design (mated height : 1.2 mm max.), ideal for use in limited spaces
  • MICRO-COAXIAL
MHF® 5
Low-profile (mated height = 1.0 mm max.), supports to 12 GHz
  • MICRO-COAXIAL
MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
  • MICRO-COAXIAL
MHF® 4L LK
Locking solution that works with MHF® 4/4L receptacles, mated height of 2.0 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
Interface Signal (LVDS / MIPI / eDP / USB / HDMI)
NOVASTACK® 35-HDH
1.5 mm height, 0.35 mm pitch , Fully-shielded and high-profile design, High-speed 40 Gbps(≒20 GHz)/lane transmission
  • BOARD TO BOARD
EVAFLEX® 5-HD
Fully-shielded, high-speed, auto-locking, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
  • FFC
  • FPC
  • EMI SHIELD
  • SHIELD FFC
CABLINE®-UX II
Slim design suitable for through-hole solution,　narrow pitch (0.25 mm), Right angle vertical mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-VS II
Fully-shielded with mechanical lock, Suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
  • TWINAXIAL
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
  • FPC
  • FFC
  • SHIELD FFC
Dual Display (LCoS, RPDs)
MINIFLEX® 4-ST
Super low profile (height = 0.5 mm), 0.4 mm pitch, horizontal mating, backflip
  • FPC
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
CABLINE®-CA IIF
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane),0.4 mm pitch, Horizontal mating type FPC plug connector
  • FPC
CABLINE®-CA II
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CA
High-data-rate transfer (32 Gbps/Lane), mechanical lock with shielding and multi-point ground, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
Battery
NOVASTACK®-B
Supports high power delivery, robust design, 0.4 mm pitch, 0.6 mm height, 2.6 mm depth
  • BOARD TO BOARD
  • POWER PIN
Speakers / Headphones / Earphones
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
MHF® 4L LK
Locking solution that works with MHF® 4/4L receptacles, mated height of 2.0 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 4
Low-profile design (mated height : 1.2 mm max.), ideal for use in limited spaces
  • MICRO-COAXIAL
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
NOVASTACK®-B
Supports high power delivery, robust design, 0.4 mm pitch, 0.6 mm height, 2.6 mm depth
  • BOARD TO BOARD
  • POWER PIN
DW-5
Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip
  • FPC
  • DISCRETE WIRE
Built-in Tracking Sensors (IMU)
NOVASTACK® 35-HDH
1.5 mm height, 0.35 mm pitch , Fully-shielded and high-profile design, High-speed 40 Gbps(≒20 GHz)/lane transmission
  • BOARD TO BOARD
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
DW-5
Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip
  • FPC
  • DISCRETE WIRE
RF Signal
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
MHF® 7S
Excellent EMC performance with fully-shielded design, ideal for 5G mmWave applications, VSWR 1.5 max at 15 GHz in small 2.0 x 2.0 mm footprint
  • EMI SHIELD
  • MICRO-COAXIAL
MHF® 4
Low-profile design (mated height : 1.2 mm max.), ideal for use in limited spaces
  • MICRO-COAXIAL
MHF® 5
Low-profile (mated height = 1.0 mm max.), supports to 12 GHz
  • MICRO-COAXIAL
MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
  • MICRO-COAXIAL
MHF® 4L LK
Locking solution that works with MHF® 4/4L receptacles, mated height of 2.0 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
Battery
NOVASTACK®-B
Supports high power delivery, robust design, 0.4 mm pitch, 0.6 mm height, 2.6 mm depth
  • BOARD TO BOARD
  • POWER PIN
