NOVASTACK® 35-HDP
0.35 mm pitch, High-speed (20+ Gbps), fully-shielded with power contacts (height: 0.7 mm)

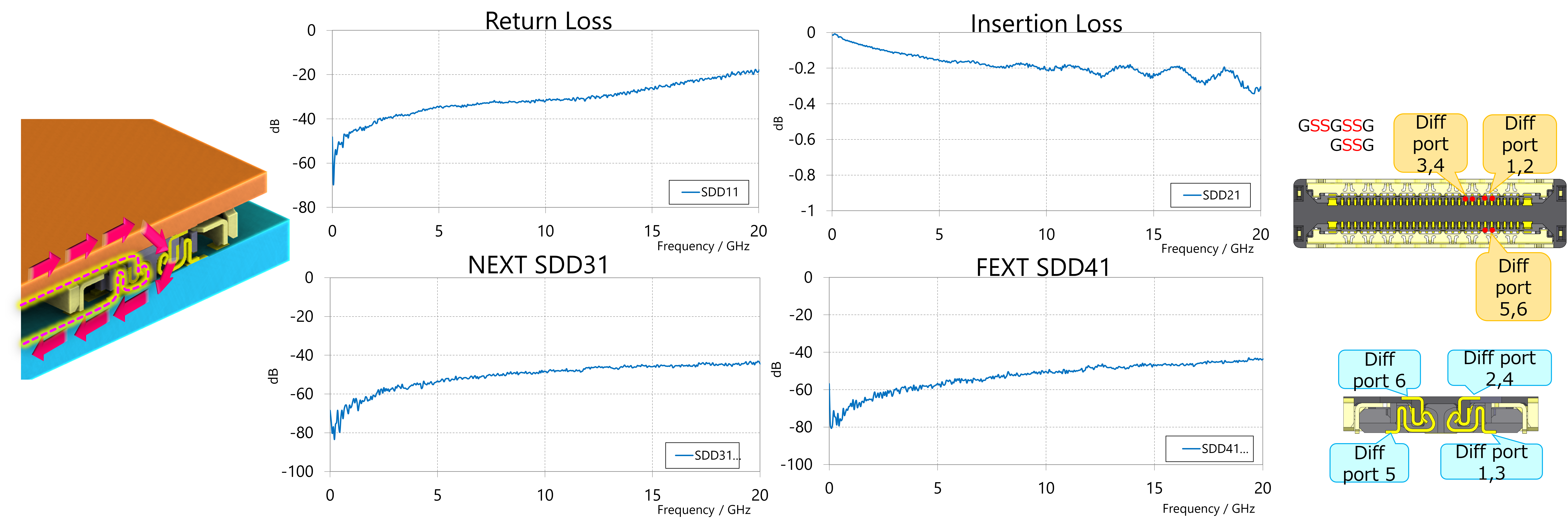

High-data-rate (20+ Gbps) Transfer
360-degree Complete Effective EMI Shielding

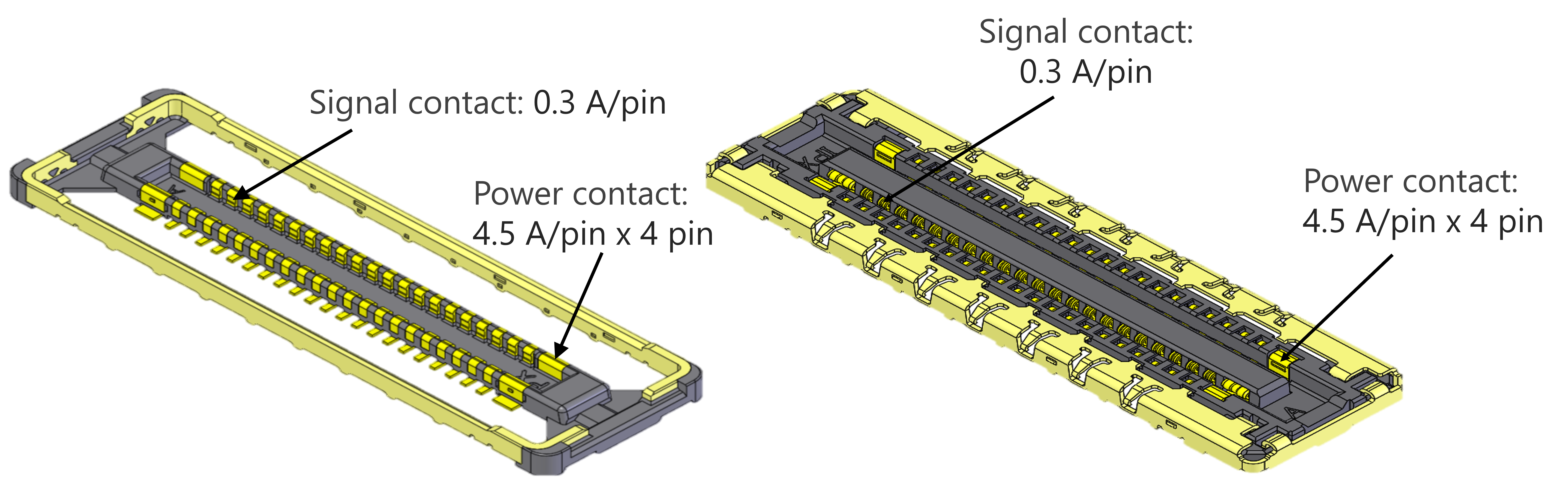

2.2 A Power Pin x 4 for Power Delivery
Contact Pitch (mm):
0.350
Mated Height (mm):
0.75 Max.
(0.70 mm Nominal)
Available Pin Count:
28
34
42
56
62
Downloads
High-data-rate (20+ Gbps) Transfer
360-degree Complete Effective EMI Shielding
2.2 A Power Pin x 4 for Power Delivery
0.35 mm pitch high-speed (20+ Gbps) fully-shielded with power contacts (height: 0.7 mm).
- High-data-rate (20+ Gbps) transfer
- 360 degree complete effective EMI shielding
- 2.2 A power pin x 4 for power delivery
I-PEX connectors solutions for enterprise computing applications.
Related article:
| Contact pitch |
0.350 mm
|
| Max Height |
0.75 mm
|
| Pin count |
28
34
42
56
62
|
| Depth |
3.70 mm
|
| Width Formula |
4.89+(0.35*?p/2) mm
|
| Contact type |
signal plus power pins
|
| Current rating | |
| Applicable Standards (Reference Only) |
eDP (2.7 Gbps)
eDP HBR 2 (5.4 Gbps) eDP HBR 3 (8.1 Gbps) HDMI® 2.0 (6 Gbps) MiPi Gear 3 (5.8 Gbps) Thunderbolt™ 3 (20 Gbps/lane) USB® 3.1 Gen 1 (5 Gbps) USB® 3.1 Gen 2 (10 Gbps) V-By-One HS 1.4 (4 Gbps) |
| Full shielding (ZenShield™) |
Yes
|
| Other Features |
Fully shielded
|
NOVASTACK 35-HDP RECOMMENDED PART NUMBERS
| Part Number Description | Pin count (Signal) | Pin count (Power) | Part Number |
| PLUG | 28 | 4 | 20697-028E-01 |
| 34 | 4 | 20697-034E-01 | |
| 42 | 4 | 20697-042E-01 | |
| 56 | 4 | 20697-056E-01 | |
| 62 | 4 | 20697-062E-01 | |
| RECEPTACLE | 28 | 4 | 20698-028E-01 |
| 34 | 4 | 20698-034E-01 | |
| 42 | 4 | 20698-042E-01 | |
| 56 | 4 | 20698-056E-01 | |
| 62 | 4 | 20698-062E-01 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
OTHER NOVASTACK 35-HDP PART NUMBERS
| Part Number Description | Pin count (Signal) | Pin count (Power) | Part Number |
| PLUG (5,000 pcs/reel) | 42 | 4 | 20697-042E-01M |
| 56 | 4 | 20697-056E-01M | |
| 62 | 4 | 20697-062E-01M | |
| RECEPTACLE (5,000 pcs/reel) | 42 | 4 | 20698-042E-01M |
| 56 | 4 | 20698-056E-01M | |
| 62 | 4 | 20698-062E-01M |
