Smartphone

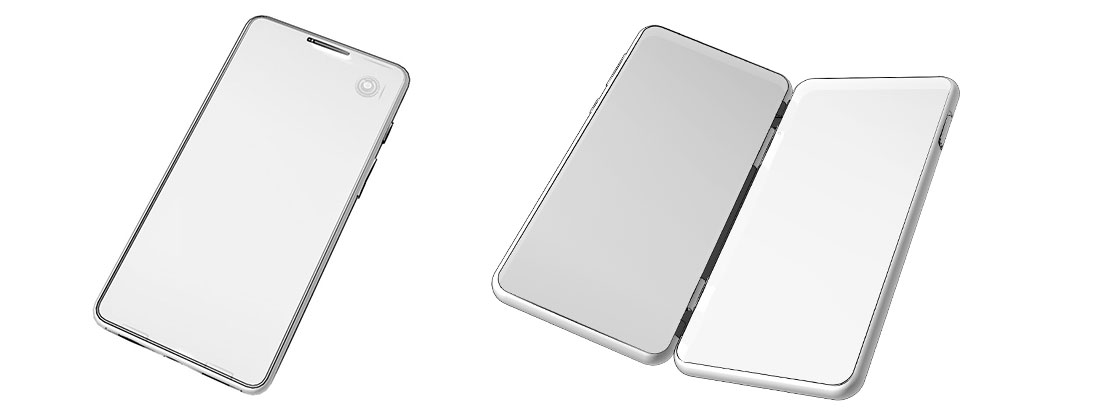

    SMARTPHONE
  • Display
  • Front Camera
  • Rear Camera
  • Button Controls
  • Battery
  • Antenna
  • Grounding
SMARTPHONE
    FOLDABLE PHONE
  • Dual Display
FOLDABLE PHONE
Display
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
MINIFLEX® 175-ST
Super low profile (height = 0.52 mm), 0.175 mm pitch, horizontal mate, backflip
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
Front Camera
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
Rear Camera
CABLINE®-CX II Without Cover
Narrow pitch (0.25 mm pitch), Low mating height (Height = 0.78 mm max), Mechanical lock with shielding and multi-point ground, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-UX II
Slim design suitable for through-hole solution,　narrow pitch (0.25 mm), Right angle vertical mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
Button Controls
MINIFLEX® 175-ST
Super low profile (height = 0.52 mm), 0.175 mm pitch, horizontal mate, backflip
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
Battery
NOVASTACK®-B
Supports high power delivery, robust design, 0.4 mm pitch, 0.6 mm height, 2.6 mm depth
  • BOARD TO BOARD
  • POWER PIN
Antenna
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
MHF® 4L
The M.2 industry standard, mated height of 1.2 mm, 1.4 mm, and 1.7 mm max.,excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 4L (1.4 mm height)
The M.2 industry standard, mated height of 1.4 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 4L (1.7 mm height)
The M.2 industry standard, mated height of 1.7 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 5
Low-profile (mated height = 1.0 mm max.), supports to 12 GHz
  • MICRO-COAXIAL
MP-A
Surface mount cable clip and clamp for RF assembly grounding and cable routing
  • SMT CLIP
Grounding
MP-A
Surface mount cable clip and clamp for RF assembly grounding and cable routing
  • SMT CLIP
Dual Display
CABLINE®-UX II
Slim design suitable for through-hole solution,　narrow pitch (0.25 mm), Right angle vertical mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CX II With Cover
Narrow pitch (0.25 mm pitch), Low mating height (Height = 1.00 mm max.), EMI shielding cover and multi-point ground with mechanical lock, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CX II Without Cover
Narrow pitch (0.25 mm pitch), Low mating height (Height = 0.78 mm max), Mechanical lock with shielding and multi-point ground, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CA
High-data-rate transfer (32 Gbps/Lane), mechanical lock with shielding and multi-point ground, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CA II
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
CABLINE®-CAL
Low mating height (Height = 0.8 mm max.), High-data-rate transfer (40 Gbps/lane PAM3), Mechanical lock, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
  • MICRO-COAXIAL
  • DISCRETE WIRE
