CABLINE®-VS

CABLINE-VS Product Image
VESA標準款連接器，適用於高速數據傳輸(20Gbps/lane), 機械鎖扣， 0.5mm 間距,水平對插款的極細同軸線連接器

  • 高速率傳輸, USB4 Gen3/Thunderbolt 4 (20Gbps/lane) 應用的理想之選

  • 機械鎖扣防止連接器不完全嵌合及脫落/未嵌合

  • I-PEX VS系列多款連接器可選

接點間距(mm):
0.500
Height:
1.10 Max (1.00 Nom.) ,
可提供Pin數:
20 30 40 50
極細同軸線(AWG):
#36 #38 #40 #42 #44 #46
Discrete Cable (AWG):
#32 #34 #36 #38 #39 #40 #42 #44 #46
嵌合類型:
水平

下載

  • 產品目錄

  • 2D圖面

  • 技術參數

  • 3D圖面(IGES)

  • 3D圖面(STEP)

  • Symbols(腳位圖)和Footprints(封裝圖)

  • 測試報告

  • SI測試板

  • 操作手冊

  • 包裝標準

  • 認證

    • 高速率傳輸, USB4 Gen3/Thunderbolt 4 (20Gbps/lane) 應用的理想之選

    USB4 Gen3/Thunderbolt 4 (20 Gbps/lane)



    眼圖 (微分)
    比特率：20 Gbps
    上升時間：30 ps (10-90%)
    輸入電壓：800 mVp-p

    *更多測試細節,請聯繫I-PEX 連接器 。

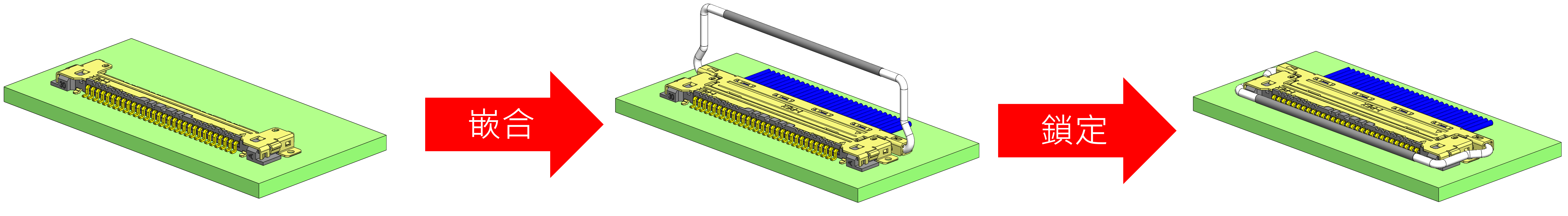

    機械鎖扣防止連接器不完全嵌合及脫落/未嵌合

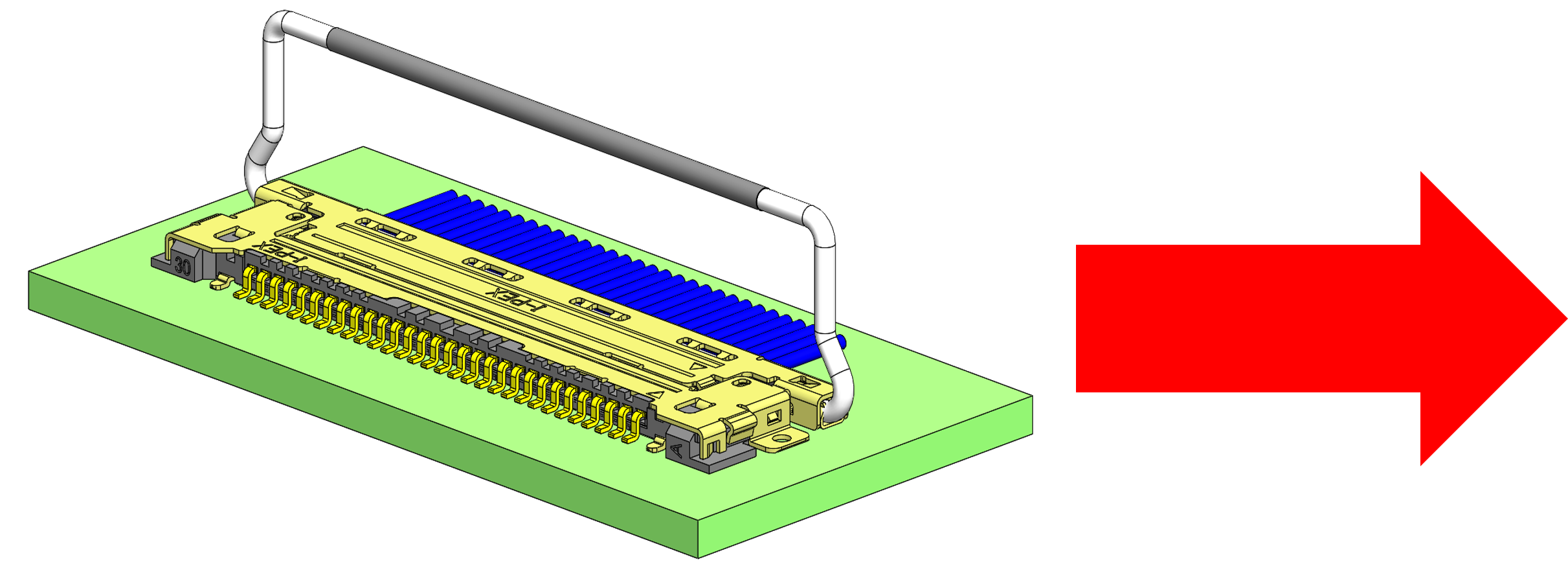

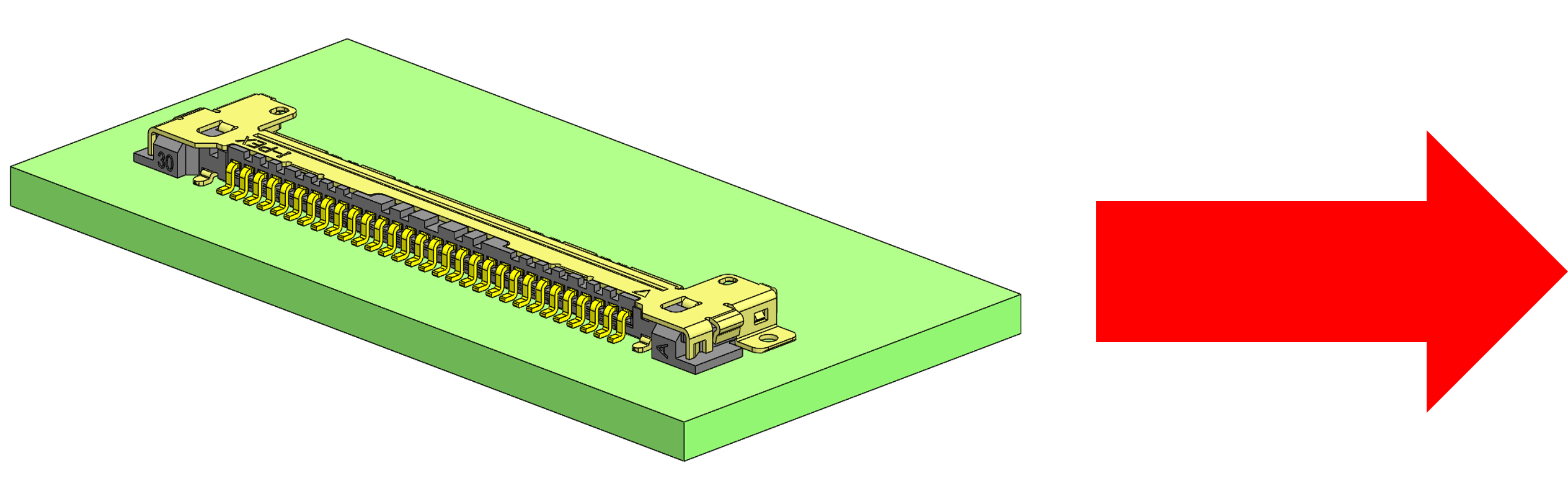

    嵌合

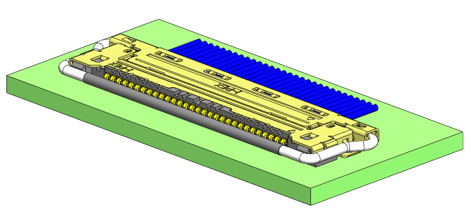

     鎖定
    只有當公座完全和母座嵌合時，機械鎖扣才能鎖上

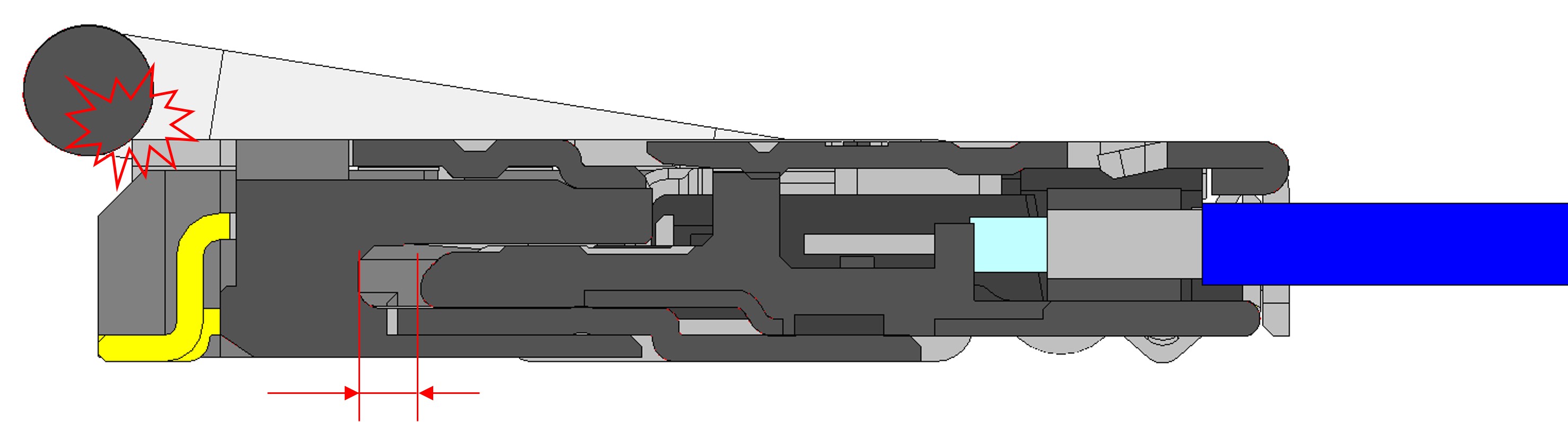

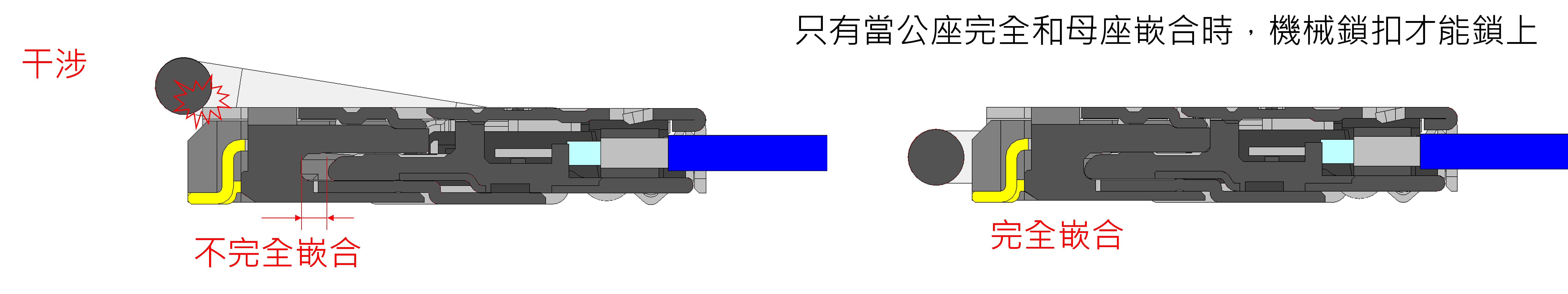

    干涉

    不完全嵌合

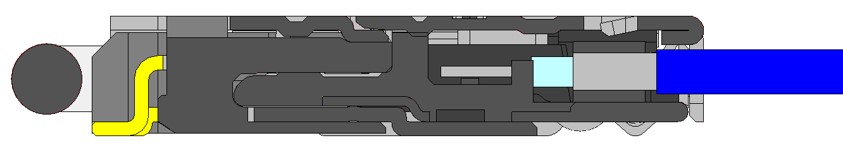

    完全嵌合

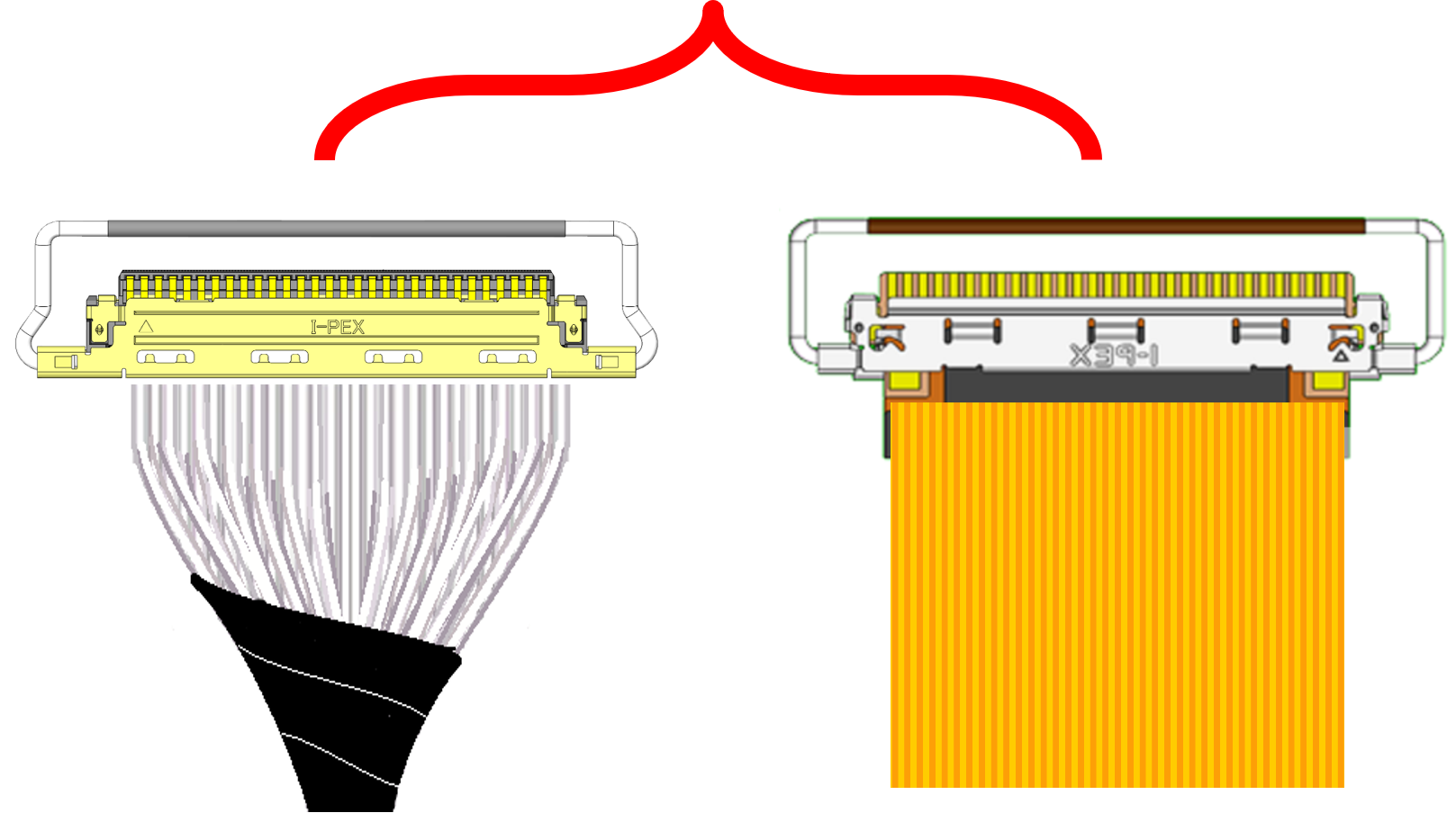

    I-PEX VS系列多款連接器可選

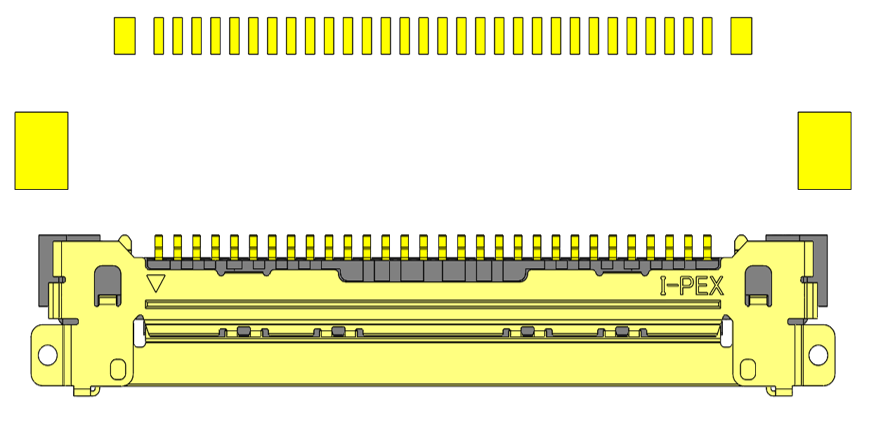

    I-PEX VS 系列 (0.5 mm間距,水平對插款式)
    CABLINE-VS, VS II 的母座和 EVAFLEX® 5-VS 可以安装在相同封裝的 PCB 上。
    		 CABLINE-VS_FAB3-2.jpg CABLINE-VS_FAB3-3.jpg CABLINE-VS_FAB3-4.jpg

    CABLINE-VS II receptacle
    CABLINE-VS receptacle
    EVAFLEX 5-VS
    CABLINE-VS 母座:
    VESA 標準連接器，Notebook PC panel
    連接器占較大市場份額。
    		 CABLINE-VS_FAB3-5.jpg CABLINE-VS_FAB3-6.jpg CABLINE-VS_FAB3-7.jpg

    CABLINE-VS II plug micro-coaxial
    CABLINE-VS IIF plug shielded FPC
    CABLINE-VS
    plug
    micro-coaxial
    CABLINE-VSF
    plug
    shielded/non-shielded FPC
    EVAFLEX 5-VS
    Shielded/Non-shielded
    FPC/FFC



    Contact pitch
    0.500 mm
    Height
    1.10 Max (1.00 Nom.) ,
    Depth
    5.80 mm
    Width Formula
    7.55+(0.5*?p) mm
    Pin count
    20 30 40 50
    Current rating
    0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts
    Applicable Standards (Reference Only)
    USB4 Gen3/Thunderbolt 4 (20Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
    Full shielding (ZenShield®)
    No
    Automotive Standards LV214 (50P tested. PG17 Dynamic Loading evaluation passed)

    推薦料號

    若清單中查詢不到您要找的料號，請使用調查表詢問。



    DIAGRAMS_CABLINE-VS



    CABLINE-VS RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 20 20453-220T-03
    30 20453-230T-03
    40 20453-240T-03
    50 20453-250T-03S
    Plug parts PLUG HOUSING 20 20454-220T
    30 20454-230T
    40 20454-240T
    50 20454-250T-01
    PLUG SHELL 20 2574-0202
    30 2574-0302
    40 2574-0402
    50 2574-0502
    PLUG PULL BAR 20 2576-120-00
    30 2576-130-00
    40 2576-140-00
    50 2576-150-00
    RECEPTACLE 20 20455-A20E-76
    30 20455-030E-76
    40 20455-040E-76
    50 20455-050E-76

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Harness Length Part Number
    CABLINE®-VS 20P HARNESS 200 mm 82067-100B-02-D
    CABLINE®-VS 30P HARNESS 200 mm 81421-100B-02-D
    CABLINE®-VS 40P HARNESS 200 mm 81422-100B-02-D
    其他料號
    請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
    如您有新的詢價，請參考上述推薦的料號。



    OTHER CABLINE-VS PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 20 20453-020T-01
    20 20453-020T-02
    20 20453-020T-03
    20 20453-020T-11
    20 20453-020T-12
    20 20453-020T-13
    20 20453-220T-01
    20 20453-220T-02
    20 20453-220T-03
    20 20453-220T-11
    20 20453-220T-12
    20 20453-220T-13
    20 20453-320T-01
    20 20453-320T-02
    20 20453-320T-03
    20 20453-320T-11
    20 20453-320T-12
    30 20453-030T-01
    30 20453-030T-02
    30 20453-030T-03
    30 20453-030T-11
    30 20453-030T-12
    30 20453-030T-13
    30 20453-230T-01
    30 20453-230T-02
    30 20453-230T-03
    30 20453-230T-11
    30 20453-230T-12
    30 20453-230T-13
    30 20453-330T-01
    30 20453-330T-02
    30 20453-330T-03
    30 20453-330T-11
    30 20453-330T-12
    40 20453-040T-01
    40 20453-040T-02
    40 20453-040T-03
    40 20453-040T-11
    40 20453-040T-12
    40 20453-040T-13
    40 20453-240T-01
    40 20453-240T-02
    40 20453-240T-03
    40 20453-240T-11
    40 20453-240T-12
    40 20453-240T-13
    40 20453-340T-01
    40 20453-340T-02
    40 20453-340T-03
    40 20453-340T-11
    40 20453-340T-12
    20 20704-020T-13
    30 20704-030T-13
    40 20704-040T-13
    50 20704-050T-13S
    50 20453-050T-01S
    50 20453-050T-02S
    50 20453-050T-03S
    50 20453-050T-11S
    50 20453-050T-12S
    50 20453-050T-13S
    50 20453-250T-01S
    50 20453-250T-02S
    50 20453-250T-03S
    50 20453-250T-11S
    50 20453-250T-12S
    50 20453-250T-13S
    50 20453-350T-01S
    50 20453-350T-02S
    50 20453-350T-03S
    50 20453-350T-11S
    50 20453-350T-12S
    20 20704-020T-13
    30 20704-030T-13
    40 20704-040T-13
    50 20704-050T-13S
    Plug parts PLUG HOUSING 20 20454-020T
    30 20454-030T
    40 20454-040T
    50 20454-050T-01
    30 20454-130T
    40 20454-140T
    20 20454-220T
    30 20454-230T
    40 20454-240T
    50 20454-250T-01
    20 20705-020T
    30 20705-030T
    40 20705-040T
    50 20705-050T-01
    PLUG SHELL 20 2574-020
    20 2574-0202
    20 2574-0203
    30 2574-030
    30 2574-0302
    30 2574-0303
    40 2574-040
    40 2574-0402
    40 2574-0403
    50 2574-050
    50 2574-0502
    50 2574-0503
    20 2574-120
    20 2574-1202
    30 2574-130
    30 2574-1302
    40 2574-140
    40 2574-1402
    50 2574-150
    50 2574-1502
    30 2657-130
    40 2657-140
    40 2699-040
    40 2699-040L
    40 2699-140
    40 2699-140L
    20 3241-120
    30 3241-130
    40 3241-140
    50 3241-150
    PLUG PULL BAR 20 2576-020
    20 2576-020-00
    30 2576-030
    30 2576-030-00
    40 2576-040
    40 2576-040-00
    50 2576-050
    50 2576-050-00
    20 2576-120
    30 2576-130
    40 2576-140
    50 2576-150
    30 3274-0301
    40 3274-0401
    50 3274-0501
    RECEPTACLE 20 20455-020E-02
    20 20455-020E-12
    30 20455-030E-02
    30 20455-030E-02-S
    30 20455-030E-12
    30 20455-030E-12-S
    30 20455-030E-12W
    30 20455-030E-14
    30 20455-030E-66
    30 20455-030E-66-S
    30 20455-030E-68
    30 20455-030E-76
    30 20455-030E-76-S
    30 20455-030E-78
    30 20455-030E-89
    30 20455-030E-89-S
    30 20455-030E-99-S
    40 20455-040E-02
    40 20455-040E-02-S
    40 20455-040E-12
    40 20455-040E-12-S
    40 20455-040E-12W
    40 20455-040E-14
    40 20455-040E-66
    40 20455-040E-66-S
    40 20455-040E-68
    40 20455-040E-76
    40 20455-040E-76-S
    40 20455-040E-78
    40 20455-040E-89
    40 20455-040E-89-S
    40 20455-040E-99-S
    50 20455-050E-02
    50 20455-050E-02-S
    50 20455-050E-12
    50 20455-050E-12-S
    50 20455-050E-66
    50 20455-050E-66-S
    50 20455-050E-68
    50 20455-050E-76
    50 20455-050E-76-S
    50 20455-050E-78
    50 20455-050E-89
    50 20455-050E-89-S
    50 20455-050E-99-S
    20 20455-A20E-02
    20 20455-A20E-02-S
    20 20455-A20E-12
    20 20455-A20E-12-S
    20 20455-A20E-22
    20 20455-A20E-66
    20 20455-A20E-66-S
    20 20455-A20E-76
    20 20455-A20E-76-S
    20 20455-A20E-89
    20 20455-A20E-89-S
    20 20455-A20E-99-S
    30 20765-030E-01
    30 20765-030E-11
    40 20765-040E-01
    40 20765-040E-11
    50 20765-050E-01
    50 20765-050E-11
    20 20765-A20E-01
    20 20765-A20E-11
    SI Test Board with 2.92mm Adapter Part Number
    SI Test Board for CABLINE-VS 20P 91575-020B-001
    SI Test Board for CABLINE-VS 30P 91575-030B-001
    SI Test Board for CABLINE-VS 40P 91575-040B-001
    SI Test Board for CABLINE-VS 50P 91575-050B-001
