CABLINE® V

CABLINE V
小型化且兼備摩擦力鎖扣，支持USB3.1高速數據傳輸(5 Gbps/lane), 觸點抗異物能力強，0.4 mm間距, 水平插拔方式的細線同軸連接器

  • 自帶摩擦力鎖扣方式，產品小型化設計

  • USB 3.1(5Gbps/lane) 高速率傳輸應用的理想之選

  • 母座端子採用音叉式設計，插入時可排除異物，導通可靠性強

接點間距(mm):
0.400
Height:
1.15 Max (1.00 Nom.) ,
可提供Pin數:
10 15 20 25 30 35 40
極細同軸線(AWG):
#40 #42 #44 #46
Discrete Cable (AWG):
#36 #38 #39 #40 #42 #44 #46
嵌合類型:
水平

下載

  • 產品目錄

  • 2D圖面

  • 技術參數

  • 3D圖面(IGES)

  • 3D圖面(STEP)

  • Symbols(腳位圖)和Footprints(封裝圖)

  • 測試報告

  • 操作手冊

  • 包裝標準

  • 認證

    • 自帶摩擦力鎖扣方式，產品小型化設計
    CABLINE V_FAB1_TC.png

    USB 3.1(5Gbps/lane) 高速率傳輸應用的理想之選
    CABLINE V_FAB2_TC.png

    母座端子採用音叉式設計，插入時可排除異物，導通可靠性強
    CABLINE V_FAB3_TC.png

    Contact pitch
    0.400 mm
    Height
    1.15 Max (1.00 Nom.) ,
    Depth
    5.65 mm
    Width Formula
    4.80+(0.4*?p) mm
    Pin count
    10 15 20 25 30 35 40
    Current rating
    0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG #42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12 contacts
    Applicable Standards (Reference Only)
    USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
    Full shielding (ZenShield®)
    No

    推薦料號

    若清單中查詢不到您要找的料號，請使用調查表詢問。

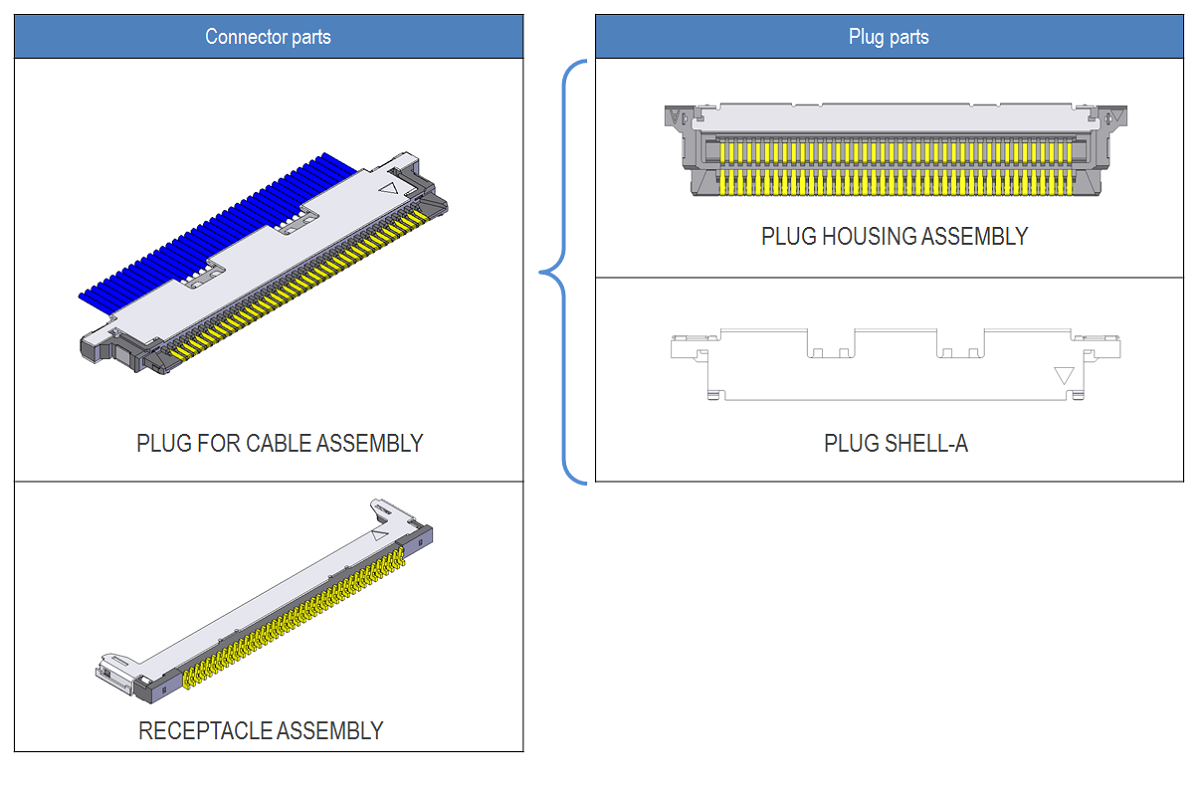

    DIAGRAMS_CABLINE_V



    CABLINE V RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 10 20345-010T-32R
    15 20345-015T-32R
    20 20345-020T-32R
    25 20345-025T-32R
    30 20345-030T-32R
    35 20345-035T-32R
    40 20345-040T-32R
    Plug parts PLUG HOUSING 10 20346-010T-32R
    15 20346-015T-32R
    20 20346-020T-32R
    25 20346-025T-32R
    30 20346-030T-32R
    35 20346-035T-32R
    40 20346-040T-32R
    PLUG SHELL 10 2047-0103
    15 2047-0153
    20 2047-0203
    25 2047-0253
    30 2047-0303
    35 2047-0353
    40 2047-0403
    RECEPTACLE 10 20347-310E-12R
    15 20347-315E-12R
    20 20347-320E-12R
    25 20347-325E-12R
    30 20347-330E-12R
    35 20347-335E-12R
    40 20347-340E-12R
    其他料號
    請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
    如您有新的詢價，請參考上述推薦的料號。



    OTHER CABLINE V PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 10 20345-010T-01R
    10 20345-010T-02R
    10 20345-010T-11R
    10 20345-010T-12R
    10 20345-010T-21R
    10 20345-010T-22R
    10 20345-010T-31R
    10 20345-010T-41R
    10 20345-010T-42R
    10 20345-010T-51R
    10 20345-010T-52R
    10 20345-010T-61R
    10 20345-010T-62R
    10 20345-010T-71R
    10 20345-010T-72R
    15 20345-015T-01R
    15 20345-015T-02R
    15 20345-015T-11R
    15 20345-015T-12R
    15 20345-015T-21R
    15 20345-015T-22R
    15 20345-015T-31R
    15 20345-015T-41R
    15 20345-015T-42R
    15 20345-015T-51R
    15 20345-015T-52R
    15 20345-015T-61R
    15 20345-015T-62R
    15 20345-015T-71R
    15 20345-015T-72R
    20 20345-020T-01R
    20 20345-020T-02R
    20 20345-020T-11R
    20 20345-020T-12R
    20 20345-020T-21R
    20 20345-020T-22R
    20 20345-020T-31R
    20 20345-020T-41R
    20 20345-020T-42R
    20 20345-020T-51R
    20 20345-020T-52R
    20 20345-020T-61R
    20 20345-020T-62R
    20 20345-020T-71R
    20 20345-020T-72R
    25 20345-025T-01R
    25 20345-025T-02R
    25 20345-025T-11R
    25 20345-025T-12R
    25 20345-025T-21R
    25 20345-025T-22R
    25 20345-025T-31R
    25 20345-025T-41R
    25 20345-025T-42R
    25 20345-025T-51R
    25 20345-025T-52R
    25 20345-025T-61R
    25 20345-025T-62R
    25 20345-025T-71R
    25 20345-025T-72R
    30 20345-030T-01R
    30 20345-030T-02R
    30 20345-030T-11R
    30 20345-030T-12R
    30 20345-030T-21R
    30 20345-030T-22R
    30 20345-030T-31R
    30 20345-030T-41R
    30 20345-030T-42R
    30 20345-030T-51R
    30 20345-030T-52R
    30 20345-030T-61R
    30 20345-030T-62R
    30 20345-030T-71R
    30 20345-030T-72R
    35 20345-035T-01R
    35 20345-035T-02R
    35 20345-035T-11R
    35 20345-035T-12R
    35 20345-035T-21R
    35 20345-035T-22R
    35 20345-035T-31R
    35 20345-035T-41R
    35 20345-035T-42R
    35 20345-035T-51R
    35 20345-035T-52R
    35 20345-035T-61R
    35 20345-035T-62R
    35 20345-035T-71R
    35 20345-035T-72R
    40 20345-040T-01R
    40 20345-040T-02R
    40 20345-040T-11R
    40 20345-040T-12R
    40 20345-040T-21R
    40 20345-040T-22R
    40 20345-040T-31R
    40 20345-040T-41R
    40 20345-040T-42R
    40 20345-040T-51R
    40 20345-040T-52R
    40 20345-040T-61R
    40 20345-040T-62R
    40 20345-040T-71R
    40 20345-040T-72R
    10 20345-110T-01R
    10 20345-110T-02R
    10 20345-110T-11R
    10 20345-110T-12R
    10 20345-110T-21R
    10 20345-110T-22R
    10 20345-110T-31R
    10 20345-110T-32R
    10 20345-110T-41R
    10 20345-110T-42R
    10 20345-110T-51R
    10 20345-110T-52R
    10 20345-110T-61R
    10 20345-110T-62R
    10 20345-110T-71R
    10 20345-110T-72R
    15 20345-115T-01R
    15 20345-115T-02R
    15 20345-115T-11R
    15 20345-115T-12R
    15 20345-115T-21R
    15 20345-115T-22R
    15 20345-115T-31R
    15 20345-115T-32R
    15 20345-115T-41R
    15 20345-115T-42R
    15 20345-115T-51R
    15 20345-115T-52R
    15 20345-115T-61R
    15 20345-115T-62R
    15 20345-115T-71R
    15 20345-115T-72R
    20 20345-120T-01R
    20 20345-120T-02R
    20 20345-120T-11R
    20 20345-120T-12R
    20 20345-120T-21R
    20 20345-120T-22R
    20 20345-120T-31R
    20 20345-120T-32R
    20 20345-120T-41R
    20 20345-120T-42R
    20 20345-120T-51R
    20 20345-120T-52R
    20 20345-120T-61R
    20 20345-120T-62R
    20 20345-120T-71R
    20 20345-120T-72R
    25 20345-125T-01R
    25 20345-125T-02R
    25 20345-125T-11R
    25 20345-125T-12R
    25 20345-125T-21R
    25 20345-125T-22R
    25 20345-125T-31R
    25 20345-125T-32R
    25 20345-125T-41R
    25 20345-125T-42R
    25 20345-125T-51R
    25 20345-125T-52R
    25 20345-125T-61R
    25 20345-125T-62R
    25 20345-125T-71R
    25 20345-125T-72R
    30 20345-130T-01R
    30 20345-130T-02R
    30 20345-130T-11R
    30 20345-130T-12R
    30 20345-130T-21R
    30 20345-130T-22R
    30 20345-130T-31R
    30 20345-130T-32R
    30 20345-130T-41R
    30 20345-130T-42R
    30 20345-130T-51R
    30 20345-130T-52R
    30 20345-130T-61R
    30 20345-130T-62R
    30 20345-130T-71R
    30 20345-130T-72R
    35 20345-135T-01R
    35 20345-135T-02R
    35 20345-135T-11R
    35 20345-135T-12R
    35 20345-135T-21R
    35 20345-135T-22R
    35 20345-135T-31R
    35 20345-135T-32R
    35 20345-135T-41R
    35 20345-135T-42R
    35 20345-135T-51R
    35 20345-135T-52R
    35 20345-135T-61R
    35 20345-135T-62R
    35 20345-135T-71R
    35 20345-135T-72R
    40 20345-140T-01R
    40 20345-140T-02R
    40 20345-140T-11R
    40 20345-140T-12R
    40 20345-140T-21R
    40 20345-140T-22R
    40 20345-140T-31R
    40 20345-140T-32R
    40 20345-140T-41R
    40 20345-140T-42R
    40 20345-140T-51R
    40 20345-140T-52R
    40 20345-140T-61R
    40 20345-140T-62R
    40 20345-140T-71R
    40 20345-140T-72R
    Plug parts PLUG HOUSING 10 20346-010T-01
    10 20346-010T-02
    10 20346-010T-02R
    10 20346-010T-11
    10 20346-010T-12
    10 20346-010T-12R
    10 20346-010T-22
    10 20346-010T-22R
    10 20346-010T-31
    10 20346-010T-31R
    10 20346-010T-32
    15 20346-015T-01
    15 20346-015T-02
    15 20346-015T-11
    15 20346-015T-12
    15 20346-015T-12R
    15 20346-015T-31
    15 20346-015T-31R
    15 20346-015T-32
    20 20346-020T-01
    20 20346-020T-02
    20 20346-020T-11
    20 20346-020T-12
    20 20346-020T-12R
    20 20346-020T-21
    20 20346-020T-22
    20 20346-020T-31
    20 20346-020T-31R
    20 20346-020T-32
    25 20346-025T-01
    25 20346-025T-02
    25 20346-025T-02R
    25 20346-025T-11
    25 20346-025T-12
    25 20346-025T-12R
    25 20346-025T-21
    25 20346-025T-31
    25 20346-025T-31R
    25 20346-025T-32
    30 20346-030T-01
    30 20346-030T-02
    30 20346-030T-02R
    30 20346-030T-11
    30 20346-030T-12
    30 20346-030T-12R
    30 20346-030T-21
    30 20346-030T-22
    30 20346-030T-31
    30 20346-030T-31R
    30 20346-030T-32
    35 20346-035T-01
    35 20346-035T-02
    35 20346-035T-02R
    35 20346-035T-12
    35 20346-035T-12R
    35 20346-035T-21
    35 20346-035T-22
    35 20346-035T-31
    35 20346-035T-31R
    35 20346-035T-32
    35 20346-035T-41
    35 20346-035T-51
    40 20346-040T-01
    40 20346-040T-02
    40 20346-040T-02R
    40 20346-040T-12
    40 20346-040T-12R
    40 20346-040T-22
    40 20346-040T-31
    40 20346-040T-31R
    40 20346-040T-32
    40 20346-040T-A2
    PLUG SHELL 10 2047-0101
    10 2047-0102
    15 2047-0151
    20 2047-0201
    20 2047-0205
    25 2047-0251
    25 2047-0255
    30 2047-0301
    30 2047-0305
    30 2047-0307
    35 2047-0351
    35 2047-0355
    35 2047-0357
    35 2047-0359
    40 2047-0401
    40 2047-0405
    40 2047-040A
    RECEPTACLE 10 20347-010E-01
    10 20347-010E-02
    10 20347-010E-12
    10 20347-010E-12R
    10 20347-110E-11
    10 20347-110E-12
    10 20347-210E-02
    10 20347-210E-02R
    10 20347-310E-11R
    10 20347-310E-12
    15 20347-015E-01
    15 20347-015E-02
    15 20347-015E-12
    15 20347-115E-02
    15 20347-115E-11
    15 20347-115E-12
    15 20347-215E-02
    15 20347-315E-11
    15 20347-315E-12
    20 20347-020E-02
    20 20347-020E-12
    20 20347-120E-02
    20 20347-120E-12
    20 20347-220E-01
    20 20347-220E-02
    20 20347-320E-11R
    20 20347-320E-12
    25 20347-025E-01
    25 20347-025E-02
    25 20347-025E-12
    25 20347-025E-12R
    25 20347-125E-01
    25 20347-125E-02
    25 20347-125E-12
    25 20347-225E-02
    25 20347-325E-12
    30 20347-030E-01
    30 20347-030E-02
    30 20347-030E-12
    30 20347-030E-12R
    30 20347-130E-02
    30 20347-130E-11
    30 20347-130E-12
    30 20347-230E-02
    30 20347-330E-12
    35 20347-035E-02
    35 20347-035E-12
    35 20347-035E-12R
    35 20347-135E-02
    35 20347-135E-12
    35 20347-235E-02
    35 20347-335E-12
    35 20347-435E-02
    40 20347-040E-01
    40 20347-040E-02
    40 20347-040E-02R
    40 20347-040E-11
    40 20347-040E-12
    40 20347-040E-12R
    40 20347-140E-01
    40 20347-140E-02
    40 20347-140E-12
    40 20347-240E-02
    40 20347-240E-02R
    40 20347-240E-22
    40 20347-340E-02
    40 20347-340E-12
