MHF® I (2.0 mm cable outer diameter / AWG#26)

MHF 1 OD20 Product Image
Low insertion loss for long length harness applications

  • Best insertion loss possible with 2.0 mm O.D. micro-coaxial

  • Solderless micro-coax termination technology "i-Fit®" provides consistent performance

  • 2.0 mm O.D. (AWG 26) micro-coaxial cable plug, mates to standard MHF®I Receptacle

Mated Height (mm):
3.00 Max.
Frequency Range:
Up to 9 GHz
Micro-Coaxial Cable (AWG):
#26 (O.D. 2.00 mm)
Micro-Coaxial Cable (AWG) / O.D. (mm):
#26 (2.00)

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Symbols & Footprints

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

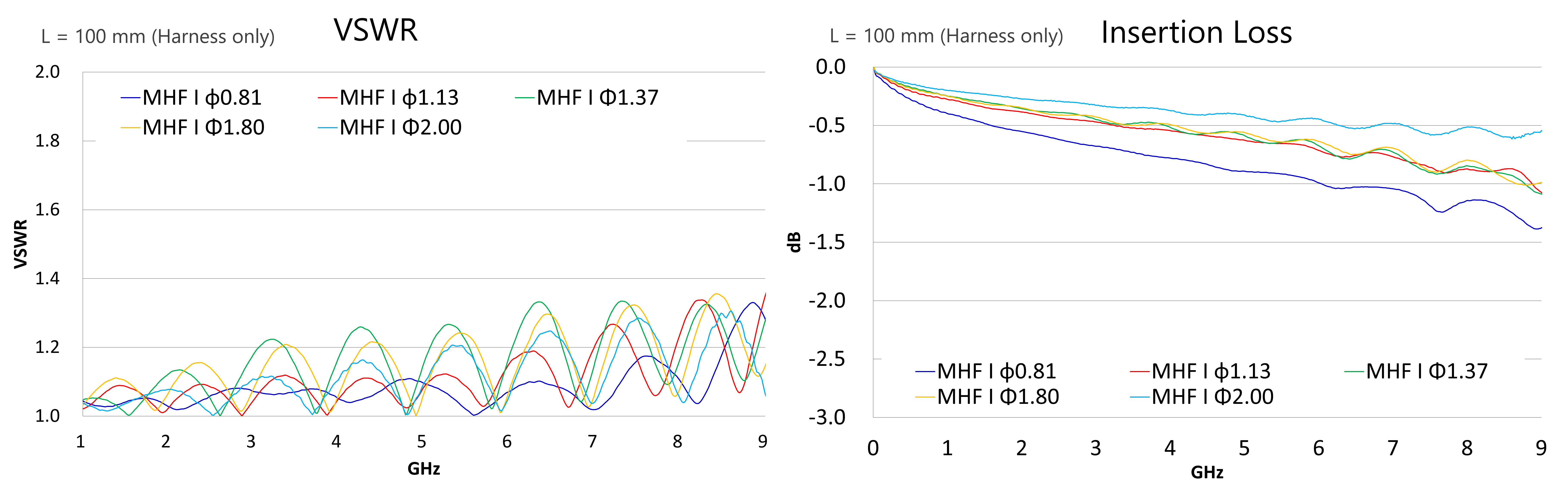

    • Best insertion loss possible with 2.0 mm O.D. micro-coaxial
    Solderless micro-coaxial termination with "i-Fit(R)" technology

    Solderless micro-coax termination technology "i-Fit®" provides consistent performance
    Best Insertion Loss Possible with 2.0 mm O.D. Micro-Coaxial

    2.0 mm O.D. (AWG 26) micro-coaxial cable plug, mates to standard MHF®I Receptacle
    2.0 mm O.D. (AWG 26) micro-coaxial cable plug, mates to standard MHF I receptacle

    Max Height
    3.00 mm
    Frequency range
    Up to 9 GHz
    Micro-Coaxial Cable (AWG)
    #26 (O.D. 2.00 mm)
    Product Type
    Coaxial RF Connector
    SMT Size (mm)
    3.1 x 3.0 mm
    Full shielding (ZenShield™)
    No
    VSWR
    VSWR (DC~3GHz) 1.3
    VSWR (3GHz~6GHz) 1.5
    VSWR (3GHz~9GHz) 1.6 (Plug)

    MHF I (2.0 mm cable O.D.) RECOMMENDED PART NUMBERS

    Part Number Description Part Number
    MHF I PLUG (for O.D. 2.0 mm cable) 20767-001R-20
    MHF I&II RECEPTACLE 20279-001E-03
    Other Part Numbers
    Please note: This list potentially includes products without available samples and end-of-life items.
    For new inquiries, please reference the recommended part numbers listed above.
    OTHER MHF I (2.0 mm cable O.D.) PART NUMBERS
    Part Number Description Part Number
    MHF I&II RECEPTACLE (2.5K pcs/reel, Paper reel)   20279-001E-01
    MHF I&II RECEPTACLE (10K pcs/reel, Plastic reel)   20279-001E-05
    MHF I&II RECEPTACLE (4 pads type) 20441-001E-01




    SMA Adapter Usage (Durability Cycles) Part Number
    Plug Electrical Performance (3K) 90193-001
    Voltage Check (10K) 90194-001
    Receptacle Electrical Performance (500) 90193-002
    High Cycle Normal (10k) 90539-001
    High Cycle Narrow Pitch Wire (100) 90577-0100 (100mm)
    90577-0350 (350mm)
    High Cycle Narrow Pitch Probe (10K) 90575-0001
    High Cycle Detachable Base (200K) 90684-0001
    High Cycle Detachable Probe (10K) 90416-001
    Hand Tool Part Number
    Mating / Unmating Tool  90885-0001
    Unmating Tool 90192-001
