CABLINE®-UA II

CABLINE-UA II Product Image
0.3 mm 間距, 90度出線垂直對插方式的極細同軸線連接器

  • 空間有限的小型電子產品的理想選擇

  • Plug尺寸也非常小巧，能夠方便穿過轉軸

  • 多點接地設計具有良好的抗 EMI 性能

接點間距(mm):
0.300
Height:
1.37 Max (1.27 Nom.) ,
可提供Pin數:
26 32 40 50
極細同軸線(AWG):
#42 #44 #46
Discrete Cable (AWG):
#39 #40 #42 #44 #46
嵌合類型:
垂直

下載

  • 產品目錄

  • 2D圖面

  • 技術參數

  • 3D圖面(IGES)

  • 3D圖面(STEP)

  • Symbols(腳位圖)和Footprints(封裝圖)

  • 測試報告

  • SI測試板

  • 操作手冊

  • 包裝標準

  • 認證

    • 空間有限的小型電子產品的理想選擇

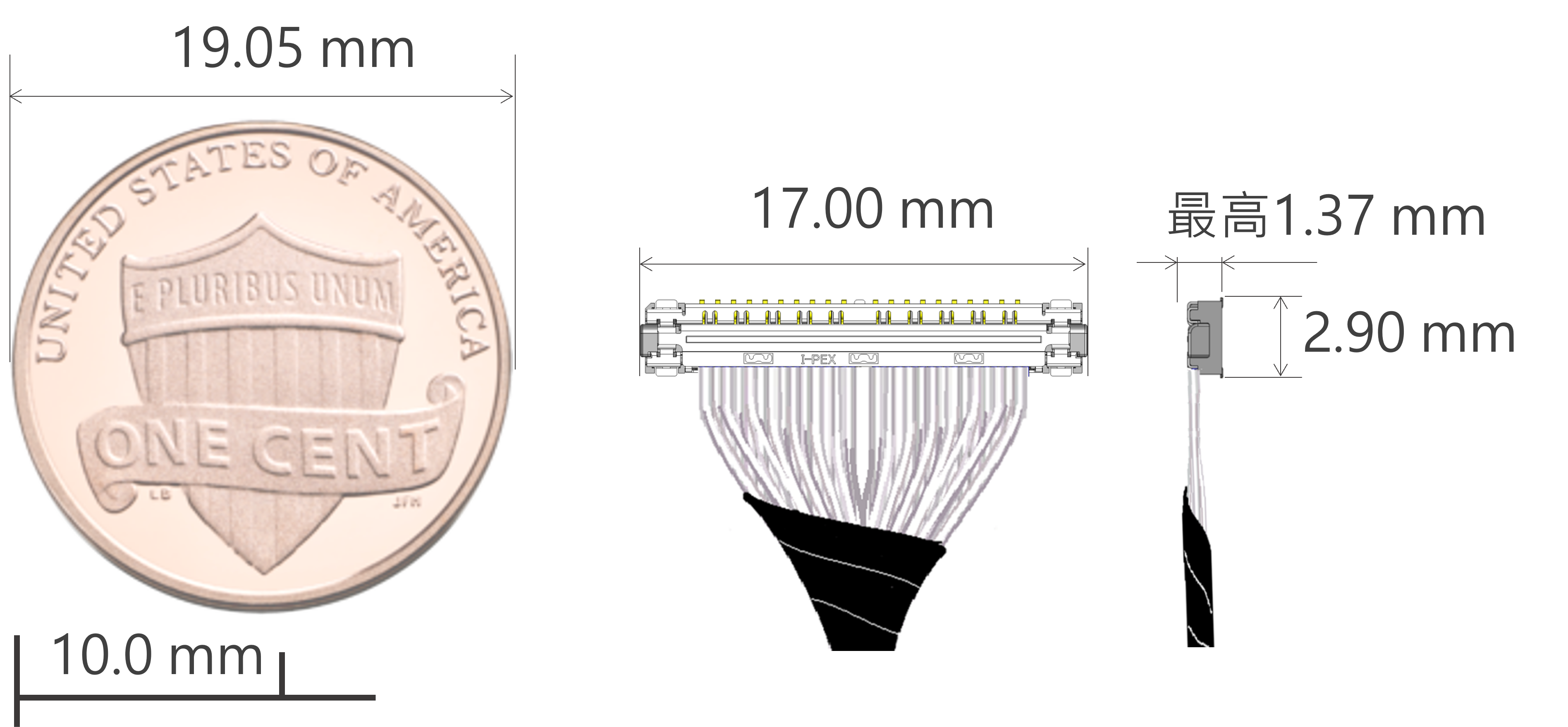

    CABLINE-UA II 40p 的大小比一分錢硬幣還小。

    UAII_Fab1-1tC UAII_Fab1-2





    Plug尺寸也非常小巧，能夠方便穿過轉軸

    模擬參考示例:
    當使用外徑為0.29mm的同軸線加工成的UA II 26Pin線束可以穿過內孔徑為Φ2.65 mm的轉軸或者軟管。

    UAII_Fab2tC





    多點接地設計具有良好的抗 EMI 性能



    UAII_Fab3-1
    底面图
    		 UAII_Fab3-2
    UAII_Fab3-3  焊接觸點
    UAII_Fab3-4 機械觸點



    Contact pitch
    0.300 mm
    Height
    1.37 Max (1.27 Nom.) ,
    Depth
    2.90 mm
    Width Formula
    5.0+(0.3*?p) mm
    Pin count
    26 32 40 50
    Current rating
    0.15A AC/DC [AWG #46] per contact 0.19A AC/DC [AWG #44] per contact 0.20A AC/DC [AWG #42] per contact
    Applicable Standards (Reference Only)
    USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
    Full shielding (ZenShield®)
    No

    推薦料號

    若清單中查詢不到您要找的料號，請使用調查表詢問。



    DIAGRAMS_CABLINE-UA_II



    CABLINE-UA II RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 26 20496-026T-40
    32 20496-032T-40
    40 20496-040T-40
    50 20496-050T-40
    Plug parts PLUG HOUSING 26 20497-026T-30
    32 20497-032T-30
    40 20497-040T-30
    50 20497-050T-30
    PLUG METAL COVER 26 2679-026-10
    32 2679-032-10
    40 2679-040-10
    50 2679-050-10
    RECEPTACLE 26 20498-026E-41
    32 20498-032E-41
    40 20498-040E-41
    50 20498-050E-41

    SAMPLE HARNESS FOR EVALUATION

    Part Number Description Harness Length Part Number
    CABLINE®-UA II 26P HARNESS 200 mm 82068-100B-02-D
    CABLINE®-UA II 40P HARNESS 200 mm 81467-100B-02-D
    其他料號
    請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
    如您有新的詢價，請參考上述推薦的料號。



    OTHER CABLINE-UA II PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 26 20496-026T-30
    26 20496-R26T-30
    26 20496-R26T-40
    32 20496-032T-30
    32 20496-R32T-30
    32 20496-R32T-40
    40 20496-040T-30
    40 20496-R40T-30
    40 20496-R40T-40
    50 20496-050T-30
    50 20496-R50T-30
    50 20496-R50T-40
    Plug parts PLUG HOUSING 26 20497-026T-00
    26 20497-026T-20
    26 20497-R26T-30
    32 20497-032T-00
    32 20497-032T-20
    32 20497-R32T-30
    40 20497-040T-00
    40 20497-040T-20
    40 20497-R40T-30
    50 20497-050T-20
    50 20497-R50T-30
    50 20497-050T-01
    PLUG METAL COVER 26 2679-026-00
    32 2679-032-00
    40 2679-040-00
    50 2679-050-00
    RECEPTACLE 26 20498-026E-00
    26 20498-026E-01
    26 20498-026E-20-C
    26 20498-026E-21
    26 20498-026E-30
    26 20498-026E-31
    26 20498-026E-40
    26 20498-R26E-30
    26 20498-R26E-31
    26 20498-R26E-40
    26 20498-R26E-41
    32 20498-032E-00
    32 20498-032E-01
    32 20498-032E-30
    32 20498-032E-31
    32 20498-032E-40
    40 20498-040E-00
    40 20498-040E-01
    40 20498-040E-30
    40 20498-040E-31
    40 20498-040E-40
    50 20498-050E-00
    50 20498-050E-01
    50 20498-050E-30
    50 20498-050E-31
    50 20498-050E-40
    32 20498-R32E-30
    32 20498-R32E-31
    32 20498-R32E-40
    32 20498-R32E-41
    40 20498-R40E-30
    40 20498-R40E-31
    40 20498-R40E-40
    40 20498-R40E-41
    50 20498-R50E-30
    50 20498-R50E-31
    50 20498-R50E-40
    50 20498-R50E-41
    26 20499-026E-01
    32 20499-032E-01
    40 20499-040E-01
    50 20499-050E-01
    26 20537-026E-01

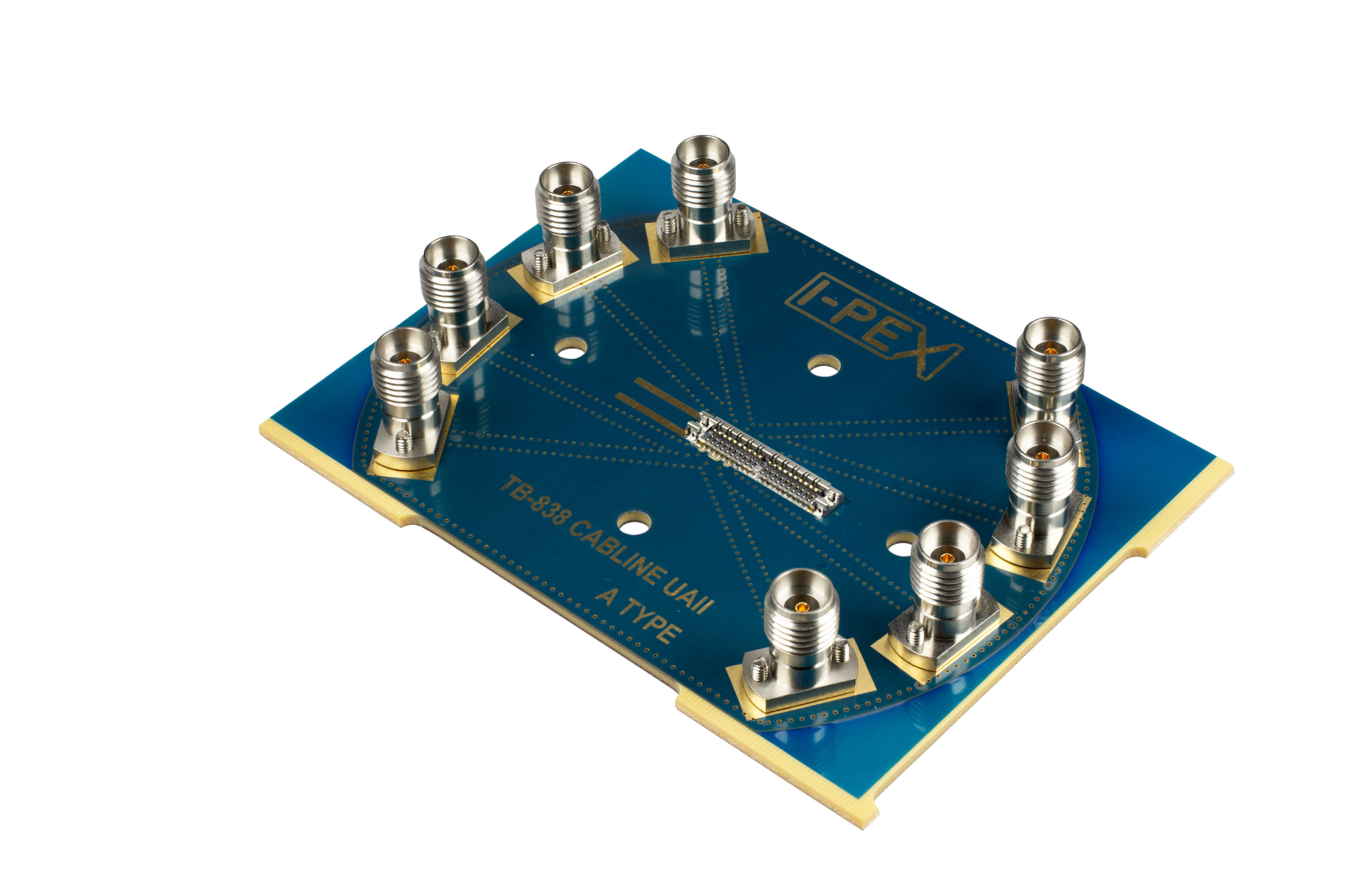

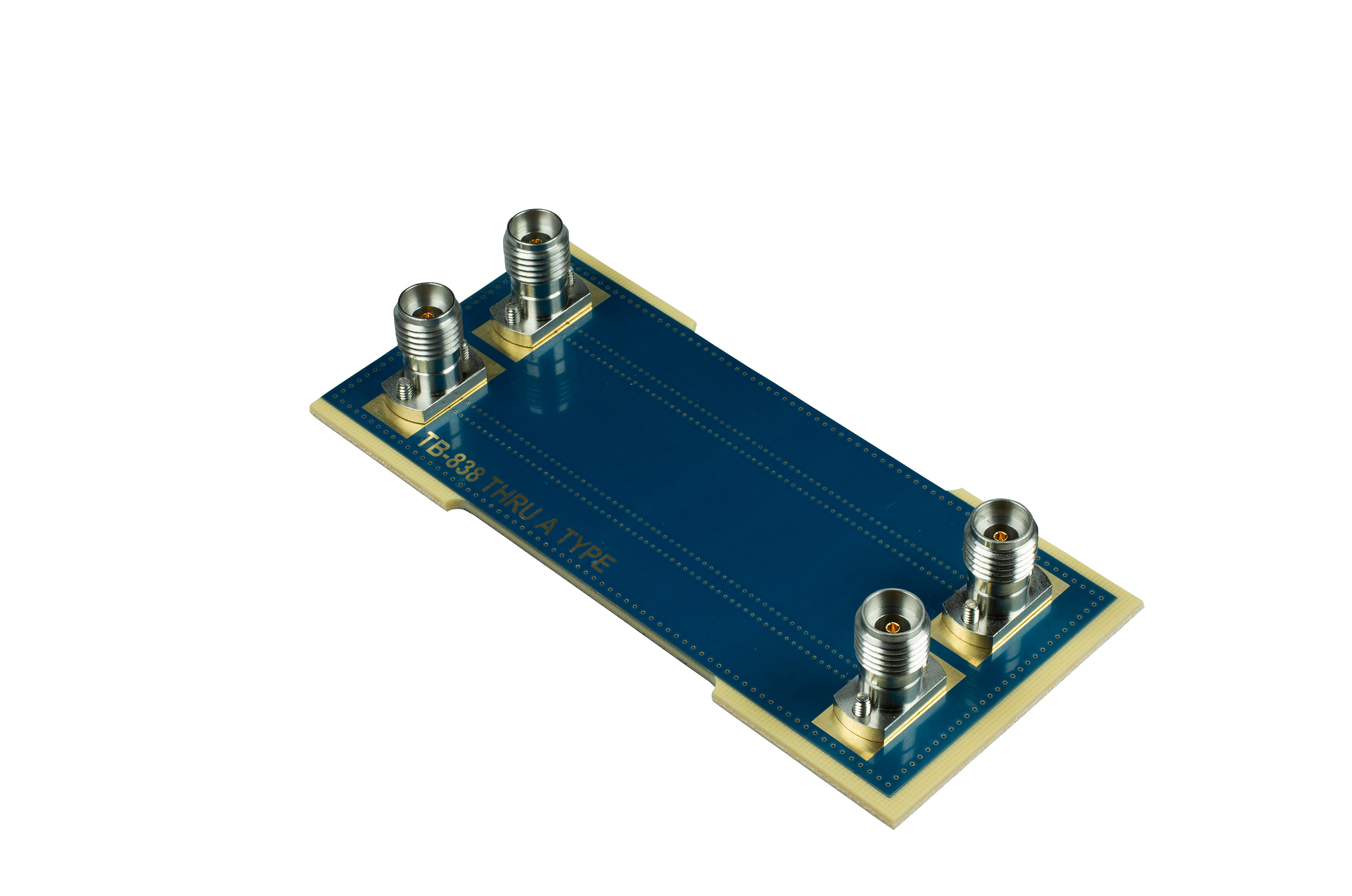

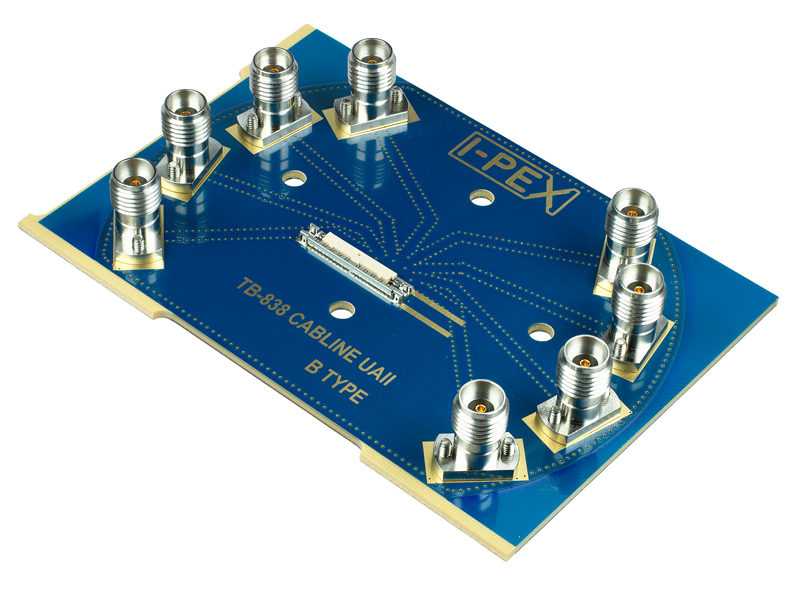

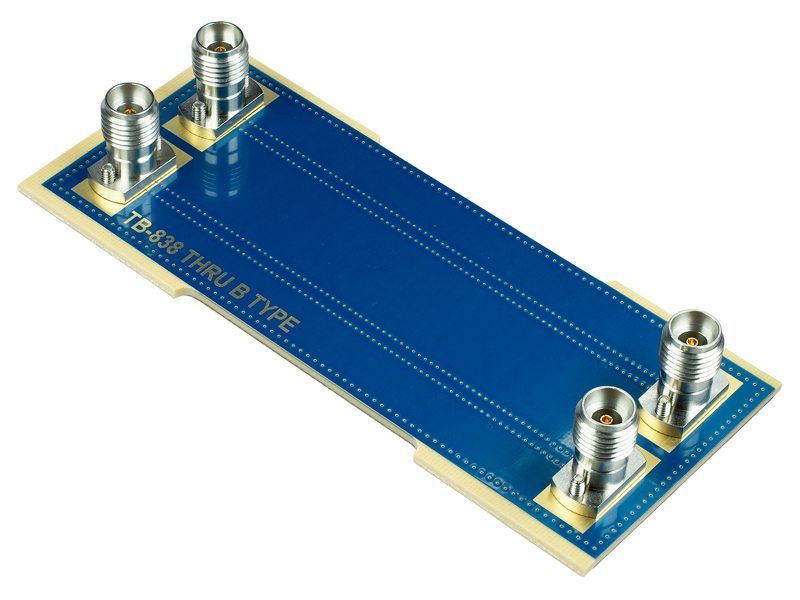

    SI Test Board with 2.92mm Adapter Part Number
    SI Test Board for CABLINE-UA II (TYPE-A) 26P 91567-026B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 32P 91567-032B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 40P 91567-040B-001
    SI Test Board for CABLINE-UA II (TYPE-A) 50P 91567-050B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 26P 91585-026B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 32P 91585-032B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 40P 91585-040B-001
    SI Test Board for CABLINE-UA II (TYPE-B) 50P 91585-050B-001
    Hand Tool Part Number
    CABLINE-UA II / UX II PULLING HAND TOOL 90460-001
    CABLINE-UA II PULLING HAND TOOL-26P 90466-026
    CABLINE-UA II PULLING HAND TOOL-32P 90466-032
    CABLINE-UA II PULLING HAND TOOL-34P 90466-034
    CABLINE-UA II PULLING HAND TOOL-40P 90466-040
    CABLINE-UA II PULLING HAND TOOL-50P 90466-050
