CABLINE®-CA IIF

CABLINE-CA II F Product Image
全屏蔽设计和机械锁扣，适用于高速数据传输 (32 Gbps/lane)，0.4mm 间距, 水平对插款的FPC 型公头连接器

    ZenShield®的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

    机械式锁扣罩防止连接器不完全嵌合及脱落

    高速率传输, 32Gbps/lane应用的理想之选

该公座连接器与 CABLINE®-CA II 母座 (20682-0**E-02) 相匹配。
Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.95 +/- 0.15 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness:
Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
Current Rating:
Signal: 0.3 A/pin

下载

*SI测试板数据位于二维图纸中

ZenShield®的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择


机械式锁扣罩防止连接器不完全嵌合及脱落


高速率传输, 32Gbps/lane应用的理想之选

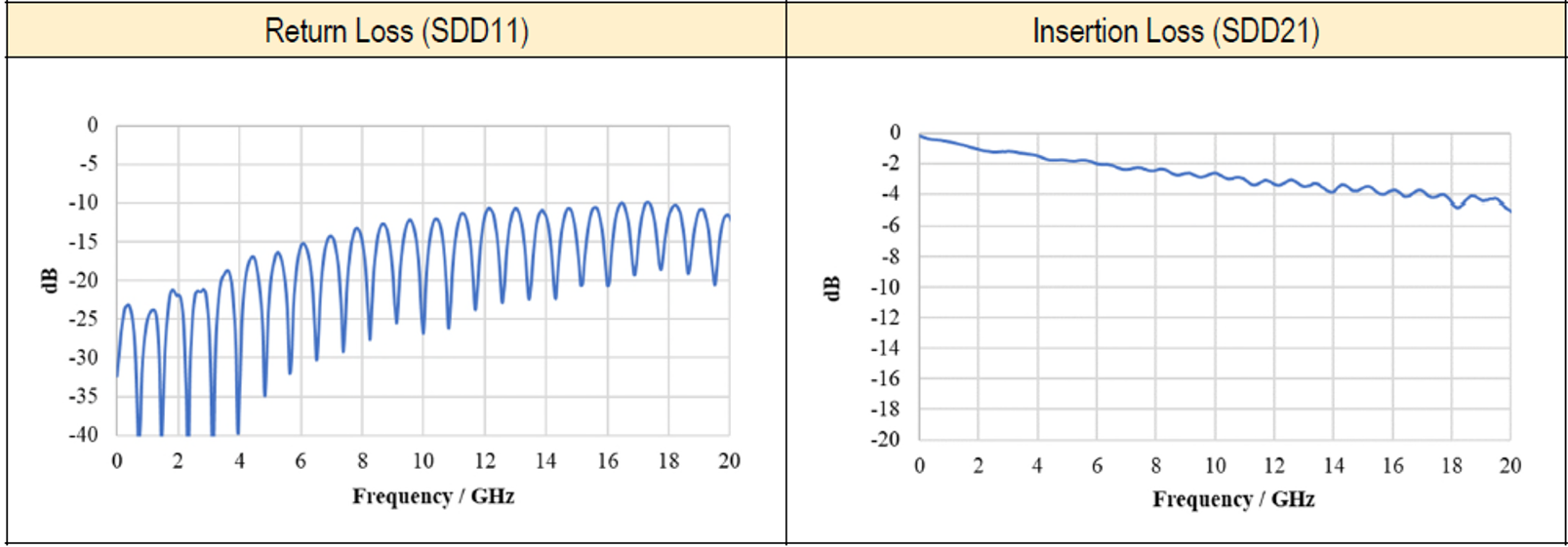

Measurement results

Connector : CABLINE-CA IIF 40P
FPC : Shielded FPC,
Differential 90 ohm , Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-CA IIF FAB3 ALL




Transmission Speed (Reference Only) 32 Gbps/lane NRZ
Contact Pitch
0.4 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.95 +/- 0.15 mm
Available Pin Count Signal: 30, 40, 50
Depth
6.74 mm
Width
6.95 + (0.4 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness
Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
FPC Type
Shielded FPC
Current Rating
Signal: 0.3 A/pin
Applicable Standards (Reference Only)
32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Other Features
高保持力机械锁扣
FPC 屏蔽式

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



DIAGRAMS_CABLINE-CA_IIF



CABLINE-CA IIF RECOMMENDED PART NUMBER

Part Number Description Part Number Weight (mg)
CABLINE-CA IIF shell assembly 30pin 20856-030T-01 239
CABLINE-CA IIF shell assembly 40pin 20856-040T-01 64
CABLINE-CA IIF shell assembly 50pin 20856-050T-01 240
CABLINE-CA II receptacle 30pin 20682-030E-02 95.565
CABLINE-CA II receptacle 40pin 20682-040E-02 119.58
CABLINE-CA II receptacle 50pin 20682-050E-02 139.46
